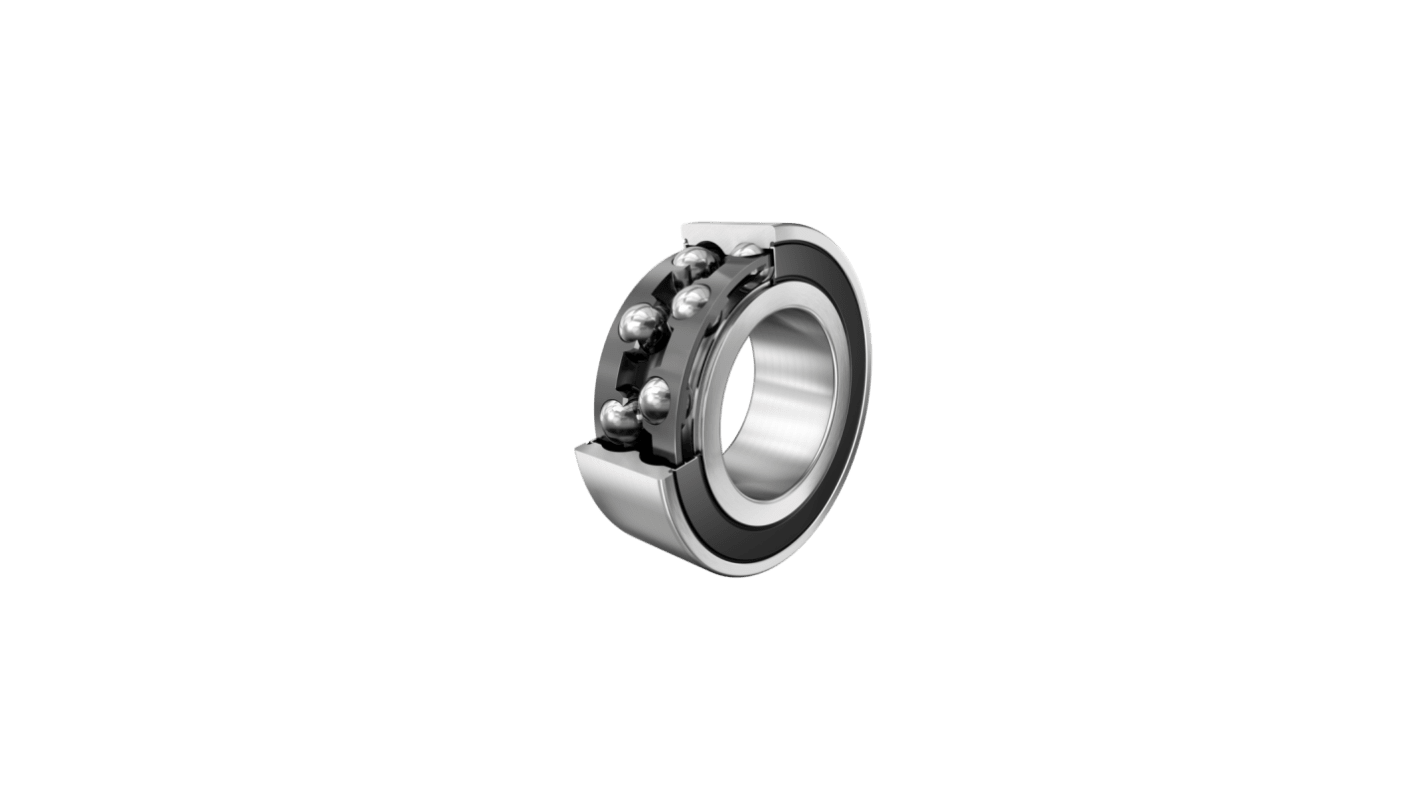

INA 3806-2Z 2 Row Angular Contact Ball Bearing - 30 mm ID, 42 mm OD 10 mm Race Width
- RS Stock No.:
- 312-506
- Mfr. Part No.:
- 3806-2Z
- Brand:
- INA
Subtotal (1 unit)*
£59.64
(exc. VAT)
£71.57
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.64 |
*price indicative
- RS Stock No.:
- 312-506
- Mfr. Part No.:
- 3806-2Z
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 30mm | |
| Outside Diameter | 42mm | |
| Race Width | 10mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| End Type | Unsealed | |
| Number of Rows | 2 | |
| Static Load Rating | 6000N | |
| Internal Clearance | N | |
| Contact Angle | 25° | |
| Dynamic Load Rating | 6100N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 38..-B-2RZ-TVH | |
| Limiting Speed | 13300rpm | |
| Flange Outside Diameter | 42mm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 30mm | ||
Outside Diameter 42mm | ||
Race Width 10mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
End Type Unsealed | ||
Number of Rows 2 | ||
Static Load Rating 6000N | ||
Internal Clearance N | ||
Contact Angle 25° | ||
Dynamic Load Rating 6100N | ||
Standards/Approvals RoHS Exempt | ||
Series 38..-B-2RZ-TVH | ||
Limiting Speed 13300rpm | ||
Flange Outside Diameter 42mm | ||
Bearing Type Double Row Angular Contact Ball | ||
RoHS Status: Exempt
The INA Angular Contact Ball Bearing embodies exceptional engineering with its robust double row design, meticulously crafted for high performance applications. Designed to operate smoothly under varying loads, this bearing is ideal for settings requiring both axial and radial load support. With a non contact seal on either side, it provides longevity and low maintenance operation, making it a perfect choice for those looking to enhance efficiency in their machinery.
Designed for high precision and exceptional durability
Double row structure efficiently accommodates axial and radial loads
Non contact seals enhance longevity and reduce maintenance needs
Temperature resilient operating effectively in a wide range of conditions
Advanced cage technology minimises operational noise
Suitable for demanding precision applications
