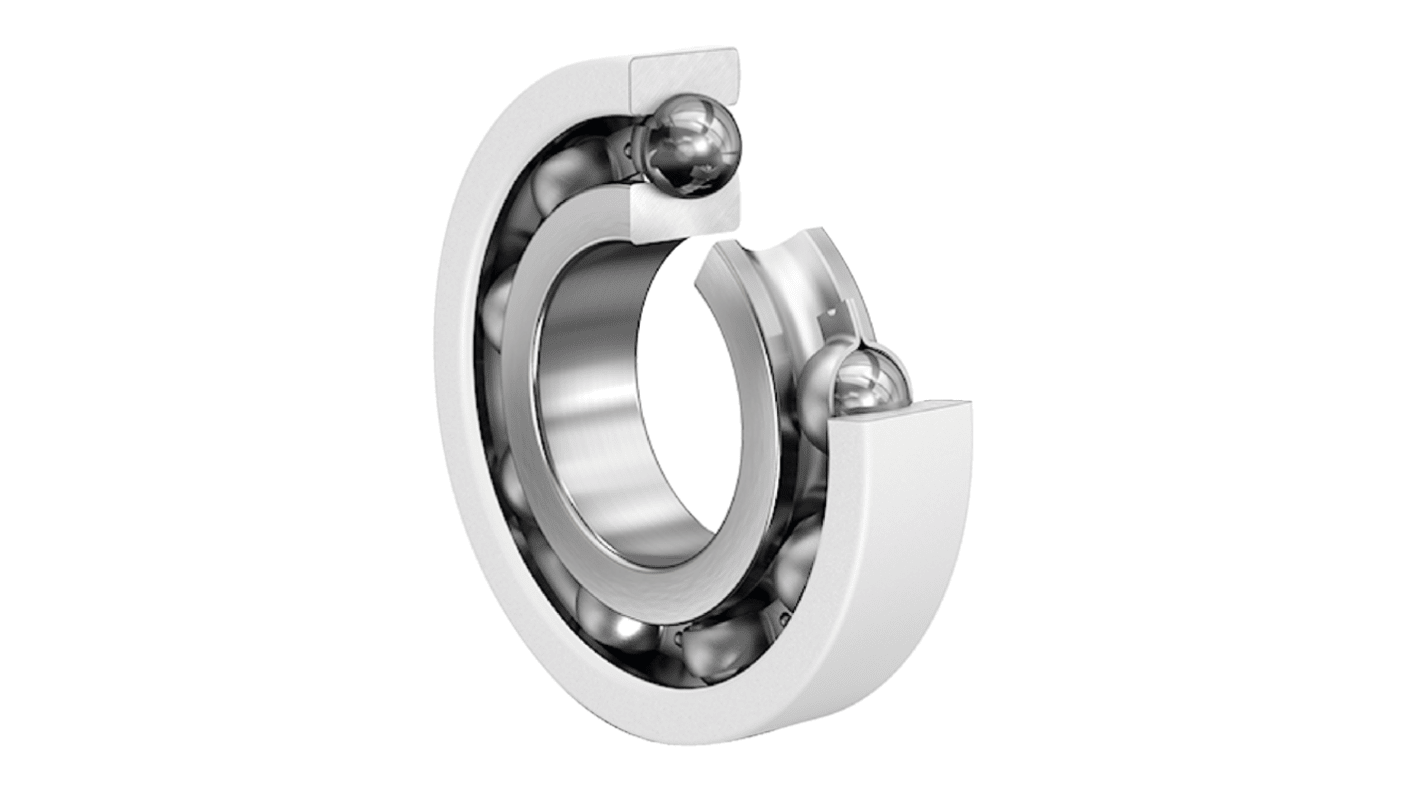

FAG 6322-J20AA-C3 1 Row Ball Bearing - 110 mm ID, 240 mm OD
- RS Stock No.:
- 312-715
- Mfr. Part No.:
- 6322-J20AA-C3
- Brand:
- FAG
Subtotal (1 unit)*
£1,539.13
(exc. VAT)
£1,846.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,539.13 |
*price indicative
- RS Stock No.:
- 312-715
- Mfr. Part No.:
- 6322-J20AA-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 110 mm | |
| Outside Diameter | 240 mm | |
| Race Width | 50mm | |
| Cage Material | Steel Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 165kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 201kN | |
| Series | 6322 | |
| Bore Type | Cylindrical | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 3800rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 110 mm | ||
Outside Diameter 240 mm | ||
Race Width 50mm | ||
Cage Material Steel Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 165kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 201kN | ||
Series 6322 | ||
Bore Type Cylindrical | ||
Standards/Approvals RoHS | ||
Limiting Speed 3800rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is designed for precision and reliability in a myriad of applications. This product excels in bearing functionality, featuring a robust steel sheet metal cage that ensures optimum performance under normal conditions. Its ceramic coating enhances durability, particularly in demanding environments. The bearing is characterised by a standard bore diameter and is tailored for applications requiring greater internal clearance, making it ideal for high-speed operations.
Temperature endurance up to 150 °C for demanding environments
Normal tolerance class ensures standard performance in various applications
Capable of handling significant radial loads increasing machine longevity
