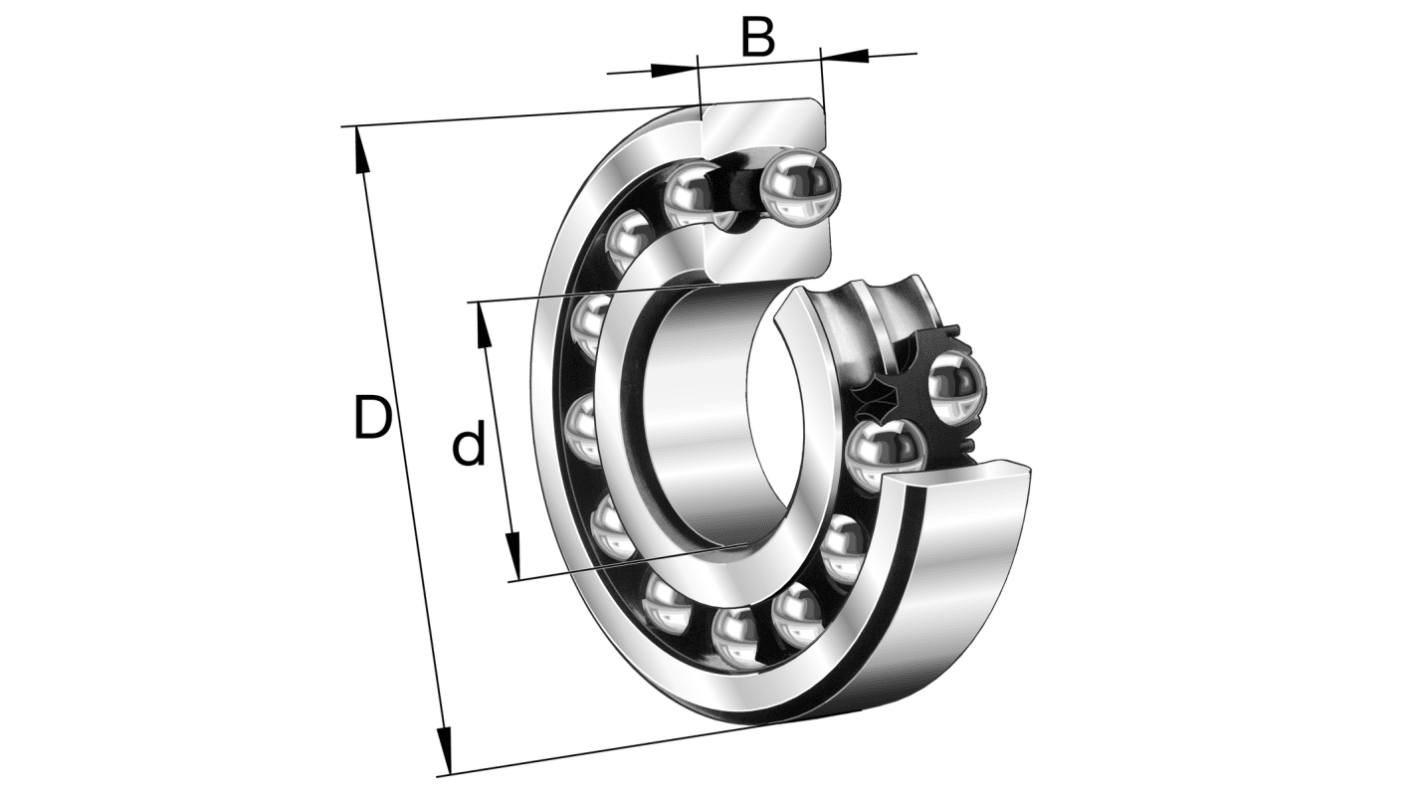

FAG 2217-K-M-C3 85 mm ID Self-Aligning Ball Bearing -, 150 mm OD
- RS Stock No.:
- 312-464
- Mfr. Part No.:
- 2217-K-M-C3
- Brand:
- FAG
Subtotal (1 unit)*
£421.18
(exc. VAT)
£505.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £421.18 |
*price indicative
- RS Stock No.:
- 312-464
- Mfr. Part No.:
- 2217-K-M-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 85mm | |
| Product Type | Self-Aligning Ball Bearing | |
| Outside Diameter | 150mm | |
| Race Width | 36mm | |
| Static Load Rating | 23600N | |
| Dynamic Load Rating | 59000N | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 7200rpm | |
| Bearing Type | Self-Aligning | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 85mm | ||
Product Type Self-Aligning Ball Bearing | ||
Outside Diameter 150mm | ||
Race Width 36mm | ||
Static Load Rating 23600N | ||
Dynamic Load Rating 59000N | ||
Standards/Approvals RoHS | ||
Limiting Speed 7200rpm | ||
Bearing Type Self-Aligning | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Self Aligning Ball Bearing is engineered to deliver reliable performance in various industrial applications. With its innovative design, this bearing accommodates misalignment, ensuring minimal wear and tear over time. Its constructed tapered bore allows it to be mounted securely, while the solid brass cage enhances durability and reliability. This product is particularly suited for environments where axial misalignment and radial load are prevalent, making it an exceptional choice for those seeking a robust solution.
High dynamic and static load ratings ensure robust performance
Maintenance free operation reduces upkeep requirements
Wide operating temperature range increases application versatility
