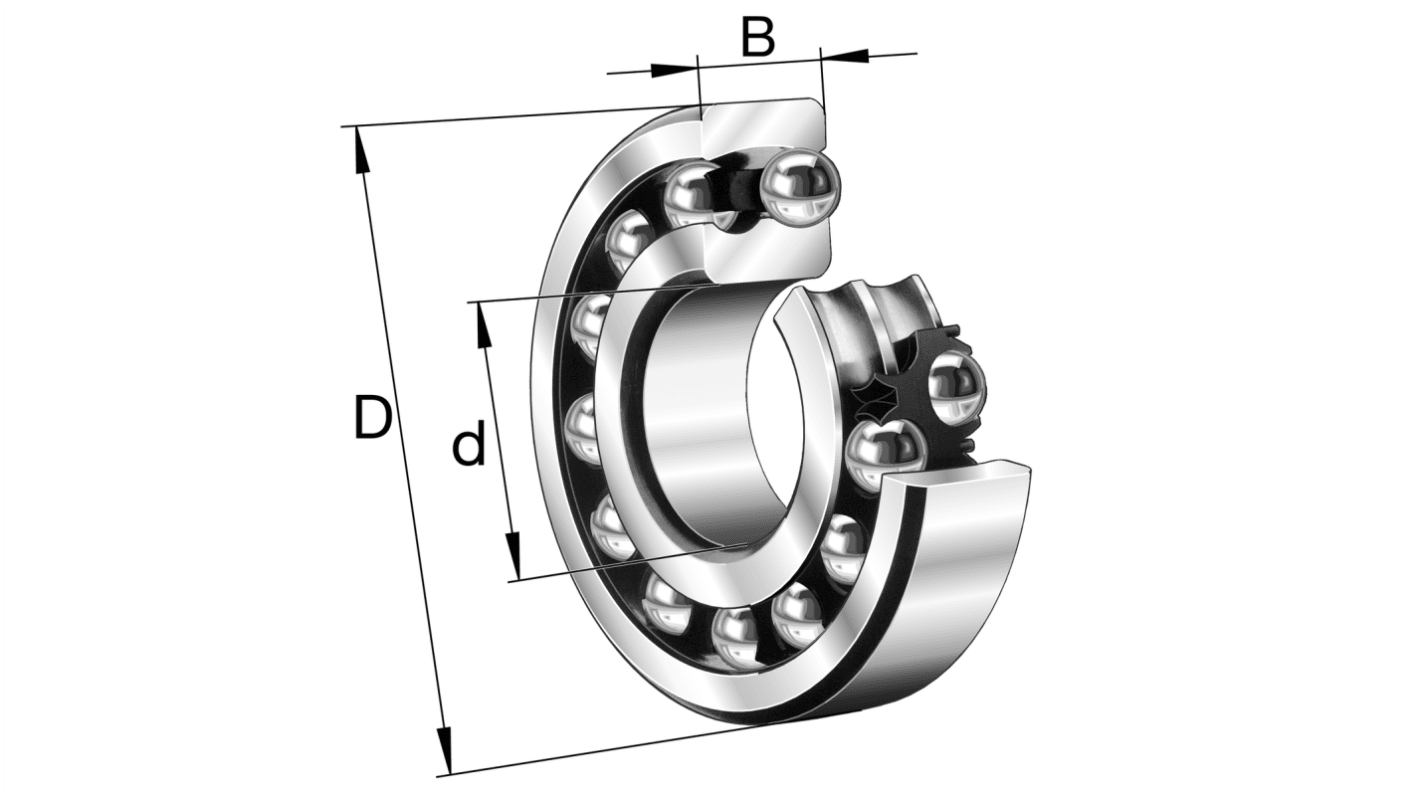

FAG 2317-K-M-C3 85 mm ID 2 Row Self-Aligning Ball Bearing -, 180 mm OD
- RS Stock No.:
- 310-384
- Mfr. Part No.:
- 2317-K-M-C3
- Brand:
- FAG
Subtotal (1 unit)*
£824.87
(exc. VAT)
£989.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £824.87 |
*price indicative
- RS Stock No.:
- 310-384
- Mfr. Part No.:
- 2317-K-M-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 85 mm | |
| Product Type | Self-Aligning Ball Bearing | |
| Outside Diameter | 180 mm | |
| Race Width | 60mm | |
| Cage Material | Solid Brass | |
| Number of Rows | 2 | |
| Internal Clearance | C3 | |
| Static Load Rating | 51000N | |
| Dynamic Load Rating | 143000N | |
| Standards/Approvals | EAN, eClass | |
| Bore Type | Tapered | |
| Limiting Speed | 5400rpm | |
| Bearing Type | Self-Aligning | |
| Flange Outside Diameter | 180mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 85 mm | ||
Product Type Self-Aligning Ball Bearing | ||
Outside Diameter 180 mm | ||
Race Width 60mm | ||
Cage Material Solid Brass | ||
Number of Rows 2 | ||
Internal Clearance C3 | ||
Static Load Rating 51000N | ||
Dynamic Load Rating 143000N | ||
Standards/Approvals EAN, eClass | ||
Bore Type Tapered | ||
Limiting Speed 5400rpm | ||
Bearing Type Self-Aligning | ||
Flange Outside Diameter 180mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The FAG Self Aligning Ball Bearing is engineered for optimal performance, featuring a tapered bore and a solid brass cage, which ensures durability and high load capacity. With its robust construction, this component is ideal for applications that demand reliability under various operating conditions. The bearing's unique design accommodates misalignments, minimising wear and extending service life. It is unsealed, allowing for versatile lubrication options, ensuring it remains suitable for a range of environments.
Allows for a range of operating temperatures increasing application versatility
Features a high dynamic load rating ensuring reliability under pressure
Optimised for easy integration into various machinery setups
