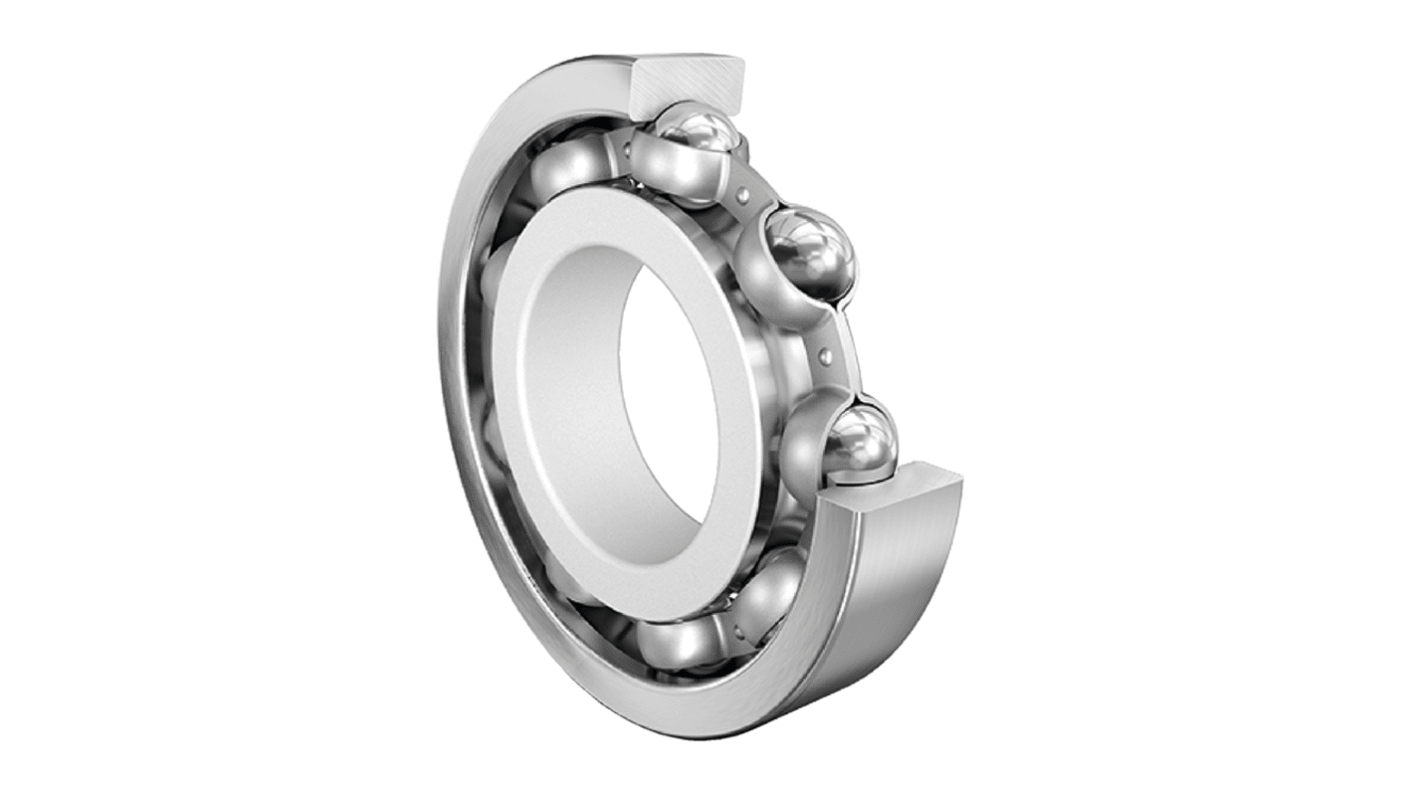

FAG 6317-J20C-C3 1 Row Ball Bearing - 85 mm ID, 180 mm OD
- RS Stock No.:
- 312-336
- Mfr. Part No.:
- 6317-J20C-C3
- Brand:
- FAG
Subtotal (1 unit)*
£1,186.16
(exc. VAT)
£1,423.39
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,186.16 |
*price indicative
- RS Stock No.:
- 312-336
- Mfr. Part No.:
- 6317-J20C-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 85mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 180mm | |
| Race Width | 41mm | |
| Cage Material | Polyamide 66 | |
| Ball Material | Steel | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 97000N | |
| Dynamic Load Rating | 141000N | |
| Bore Type | Cylindrical | |
| Series | 63 | |
| Standards/Approvals | DIN 625-1 | |
| Limiting Speed | 5000rpm | |
| Race Type | Deep Grooved | |
| Flange Outside Diameter | 180mm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 85mm | ||
Product Type Ball Bearing | ||
Outside Diameter 180mm | ||
Race Width 41mm | ||
Cage Material Polyamide 66 | ||
Ball Material Steel | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 97000N | ||
Dynamic Load Rating 141000N | ||
Bore Type Cylindrical | ||
Series 63 | ||
Standards/Approvals DIN 625-1 | ||
Limiting Speed 5000rpm | ||
Race Type Deep Grooved | ||
Flange Outside Diameter 180mm | ||
Bearing Type Deep Groove | ||
The FAG Deep Groove Ball Bearing is engineered for high performance and reliability in various applications. Designed with a single-row configuration, this bearing features a steel sheet metal cage that provides enhanced strength and stability. Its ceramic-coated surface ensures durability, making it suitable for harsh environments. With a dimensional stabilization up to 150°C, it remains operational under elevated temperatures.
Designed for straightforward installation with precision engineered dimensions
Offers a wide operational temperature range accommodating diverse working conditions
Minimises maintenance effort through its 'not sealed' configuration promoting ease of lubrication
