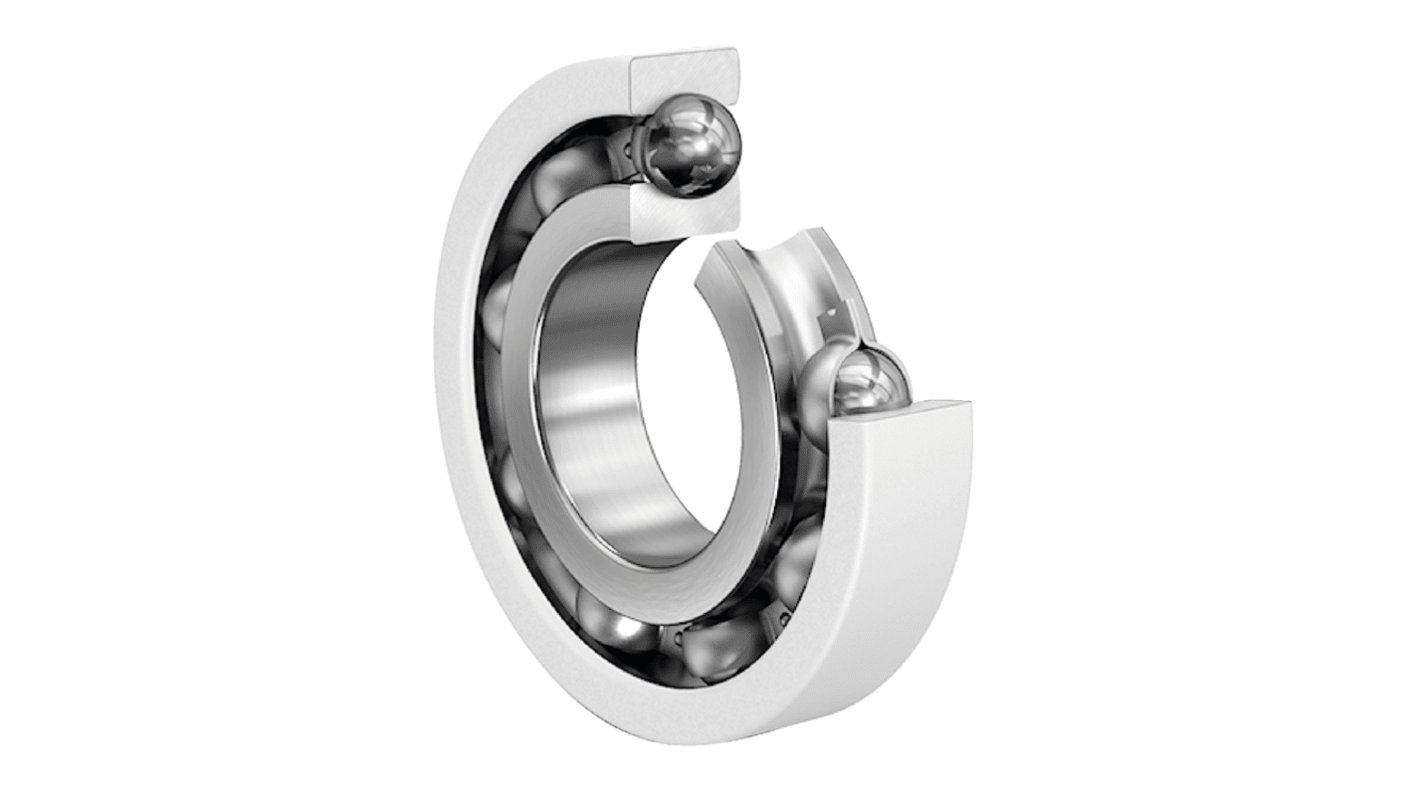

FAG 6317-J20AA-C3 1 Row Deep Groove Ball Bearing - 85 mm ID, 180 mm OD
- RS Stock No.:
- 310-820
- Mfr. Part No.:
- 6317-J20AA-C3
- Brand:
- FAG
Subtotal (1 unit)*
£990.55
(exc. VAT)
£1,188.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £990.55 |
*price indicative
- RS Stock No.:
- 310-820
- Mfr. Part No.:
- 6317-J20AA-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 85 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 180 mm | |
| Race Width | 41mm | |
| Cage Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 97000N | |
| Dynamic Load Rating | 141000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 5000rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 85 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 180 mm | ||
Race Width 41mm | ||
Cage Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 97000N | ||
Dynamic Load Rating 141000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 5000rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is expertly designed for high performance, utilising a steel sheet metal cage and ceramic coating for enhanced durability and reliability. This robust component is ideal for applications that require precision and strength, with its construction allowing for normal class tolerances and stabilization at elevated temperatures. With a maximum operating temperature of 150°C and a wide bore diameter of 85 mm, this bearing delivers exceptional load ratings and a solid performance under varying conditions.
Incorporates a normal tolerance class that ensures precise fit during installation
Supports high rotational speeds thanks to its enhanced design and materials
Suitable for applications requiring both radial and axial load capabilities
