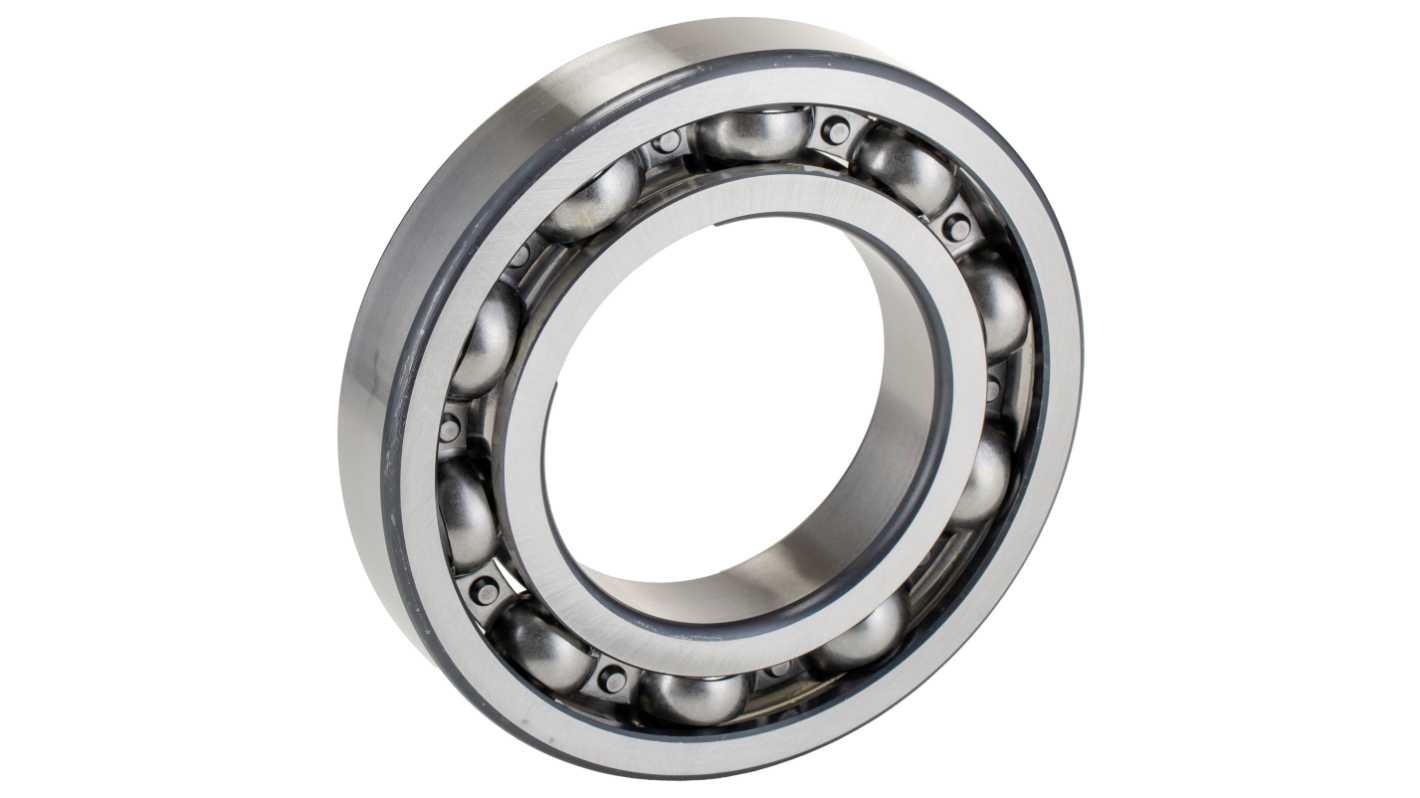

FAG 6317-C3 Single Row Deep Groove Ball Bearing- Open Type 85mm I.D, 180mm O.D
- RS Stock No.:
- 260-0490
- Mfr. Part No.:
- 6317-C3
- Brand:
- FAG
Subtotal (1 unit)*
£161.95
(exc. VAT)
£194.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £161.95 |
*price indicative
- RS Stock No.:
- 260-0490
- Mfr. Part No.:
- 6317-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 85mm | |
Outside Diameter | 180mm | |
Race Width | 41mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Static Load Rating | 97kN | |
Dynamic Load Rating | 141kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Race Type | Plain | |
Partial Bearing Code | 6317 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 85mm | ||
Outside Diameter 180mm | ||
Race Width 41mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Static Load Rating 97kN | ||
Dynamic Load Rating 141kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 6317 | ||
- COO (Country of Origin):
- DE
Schaeffler Deep Groove Ball Bearing, 85mm Inside Diameter, 180mm Outside Diameter - 6317-C3
This deep groove ball bearing is designed for robust performance in various industrial applications. Featuring an inside diameter of 85mm and an outside diameter of 180mm, it supports efficient motion and low friction. The single row configuration allows for reliable operation, making it an ideal choice for applications requiring a sturdy and durable component.
Features & Benefits
• High dynamic load rating of 141kN for demanding loads
• Open type design ensures easy lubrication access
• Constructed from high-quality steel for enhanced durability
• Steel sheet metal cage provides excellent ball support
• Limiting speed of 5,000 rev/min optimises performance
• Open type design ensures easy lubrication access
• Constructed from high-quality steel for enhanced durability
• Steel sheet metal cage provides excellent ball support
• Limiting speed of 5,000 rev/min optimises performance
Applications
• Used for general machinery where high reliability is essential
• Effective in automation systems for smooth operation
• Utilised in electrical requiring robust bearings
• Suitable for mechanical systems needing precision parts
• Effective in automation systems for smooth operation
• Utilised in electrical requiring robust bearings
• Suitable for mechanical systems needing precision parts
What is the significance of the C3 clearance in this bearing?
The C3 clearance provides additional space between the bearing components, allowing for thermal expansion during operation. This feature ensures optimal performance under varying temperature conditions, making it suitable for high-speed applications.
How does the open type design affect maintenance and lubrication?
The open type design facilitates easy access for lubrication, allowing for straightforward maintenance and ensuring that the bearing remains well-oiled for efficient operation over time.
What limitations should be considered when operating within the specified temperature range?
Operating outside the specified temperature range of -30°C to 150°C could compromise performance. It is important to ensure that the operating conditions remain within these limits to avoid premature wear or failure.
