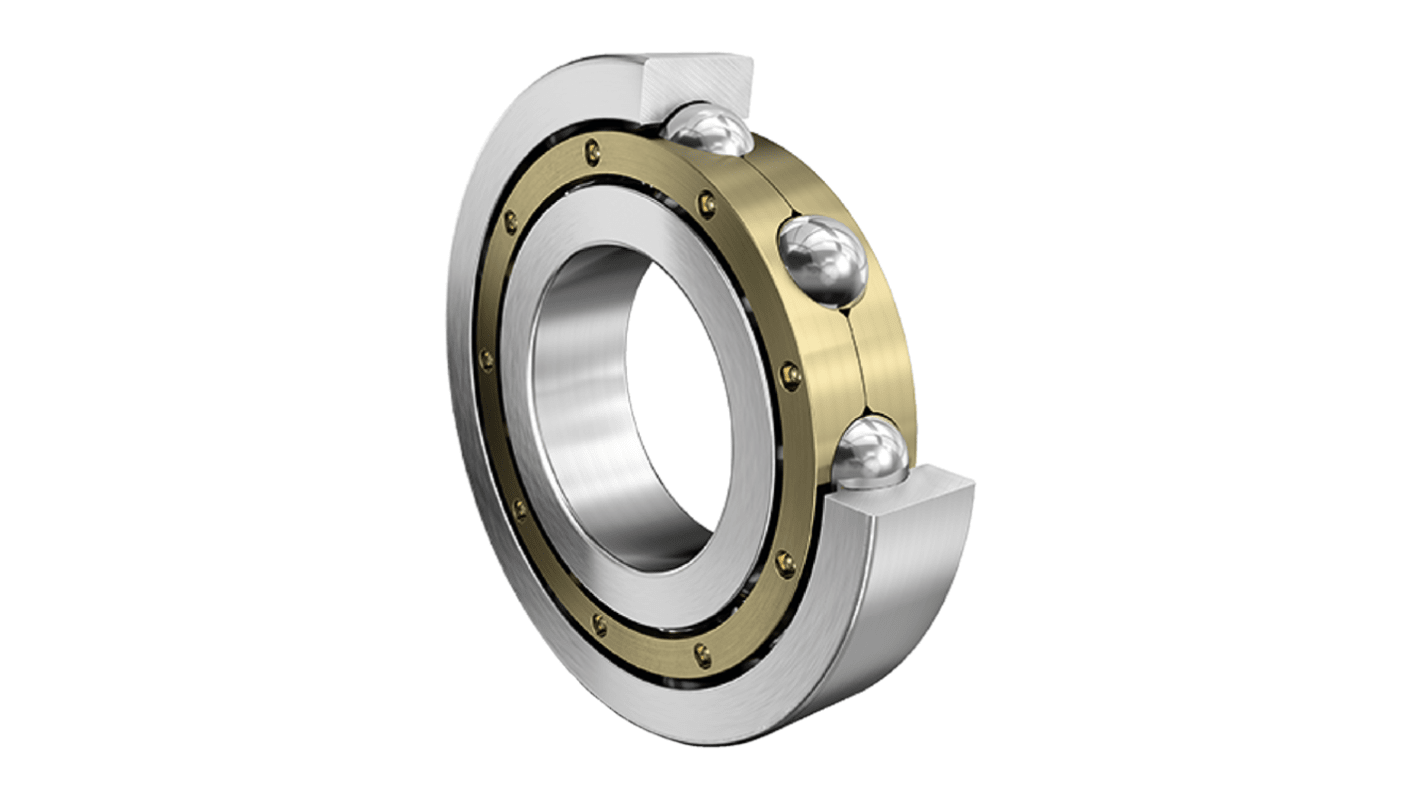

FAG 6034-M 1 Row Deep Groove Ball Bearing - 170 mm ID, 260 mm OD
- RS Stock No.:
- 310-532
- Mfr. Part No.:
- 6034-M
- Brand:
- FAG
Subtotal (1 unit)*
£758.75
(exc. VAT)
£910.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £758.75 |
*price indicative
- RS Stock No.:
- 310-532
- Mfr. Part No.:
- 6034-M
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 170 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 260 mm | |
| Race Width | 42mm | |
| Cage Material | Brass | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 172000N | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 179000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 170 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 260 mm | ||
Race Width 42mm | ||
Cage Material Brass | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 172000N | ||
Internal Clearance CN | ||
Dynamic Load Rating 179000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is engineered for reliability and performance in various applications. With its solid brass cage and single row design, it ensures optimal distribution of loads and reduces friction, ultimately enhancing the lifespan of your machinery. Its dimensional stability and tolerance class further assure a precise fit, making it a preferred choice for industrial use. The comprehensive datasheet provides essential dimensions and load ratings, ensuring you have the necessary information for successful integration into your systems.
Cylindrical bore type allows for straightforward installation
Extensive load ratings ensure suitability for diverse applications
Lightweight construction aids in reducing overall machinery weight
Minimum and maximum shaft shoulder diameters support versatile use
Offers both grease and oil lubrication options to meet specific maintenance needs
