SKF 6034 M Single Row Deep Groove Ball Bearing- Open Type 170mm I.D, 260mm O.D
- RS Stock No.:
- 207-6938
- Mfr. Part No.:
- 6034 M
- Brand:
- SKF
Subtotal (1 unit)*
£913.29
(exc. VAT)
£1,095.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £913.29 |
*price indicative
- RS Stock No.:
- 207-6938
- Mfr. Part No.:
- 6034 M
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 170mm | |
Outside Diameter | 260mm | |
Race Width | 42mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 173kN | |
Dynamic Load Rating | 168kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Model Number p | 6034 M | |
Race Material | Steel | |
Partial Bearing Code | 6034 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 170mm | ||
Outside Diameter 260mm | ||
Race Width 42mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 173kN | ||
Dynamic Load Rating 168kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Model Number p 6034 M | ||
Race Material Steel | ||
Partial Bearing Code 6034 | ||
- COO (Country of Origin):
- FR

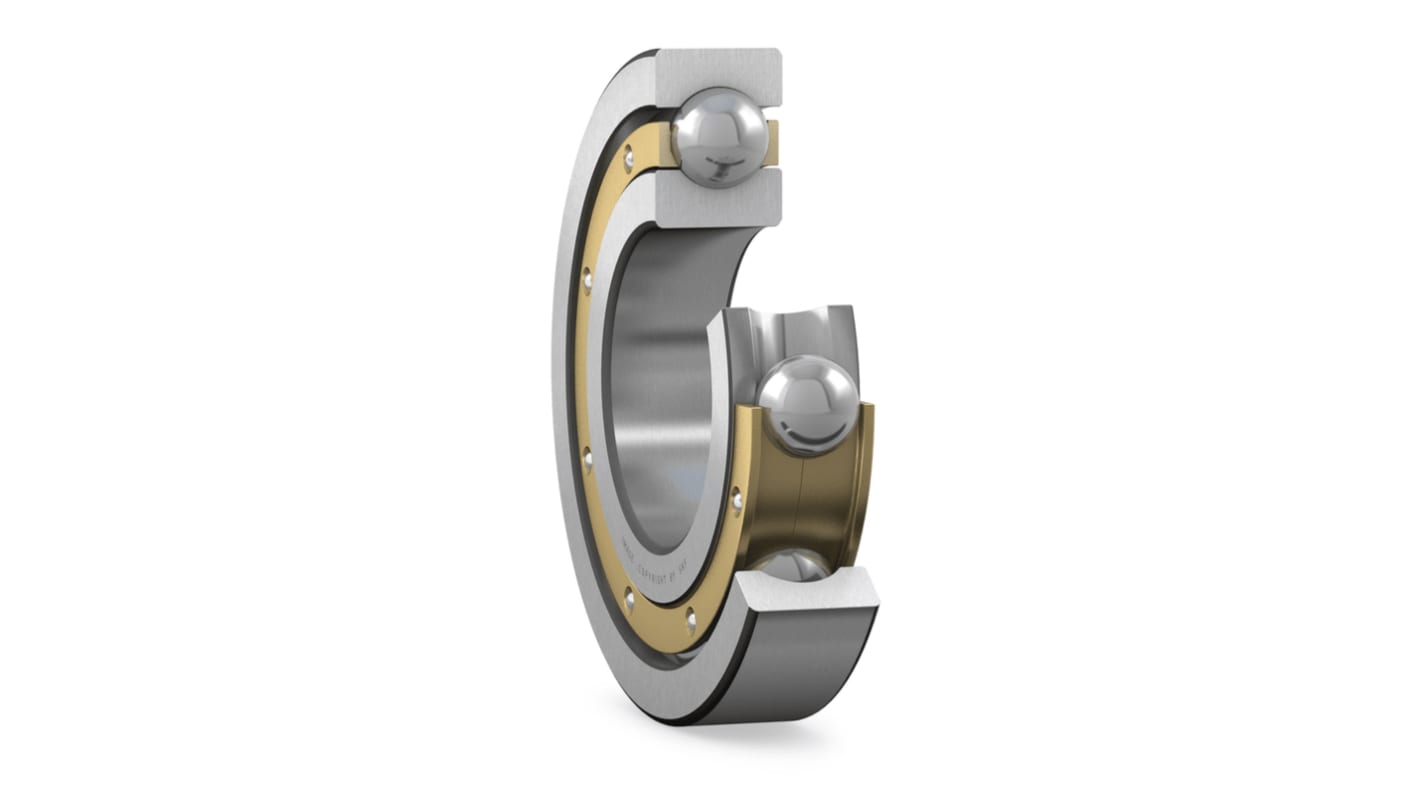

SKF Ball Bearing, 170 mm ID, 260 mm OD - 6034 M
Use this versatile ball bearing from SKF in situations where shafts rotate at high speed. It's designed to handle both axial and radial loads, and consists of a deep raceway channel with race dimensions similar to that of the balls that run inside it. Because of its simple design and high impact resistance, this ball bearing needs very little maintenance. As not much friction is produced, operation is smooth and quiet, and less energy is used. It's a useful component in the agricultural and automotive industries.
• Inside diameter of 170 mm, outside diameter of 260 mm, so ideal for compact applications
• Limiting speed of 4300 revolutions per minute (r/min), making it fit for high-momentum applications
• Heat stabilised up to at least +120°C, so suitable for harsh conditions
• Made of steel for strength and resistance to abrasion and corrosion
• Limiting speed of 4300 revolutions per minute (r/min), making it fit for high-momentum applications
• Heat stabilised up to at least +120°C, so suitable for harsh conditions
• Made of steel for strength and resistance to abrasion and corrosion
Application Information
• Gearboxes
• Wind turbines
• Pumps
• Washing machines
• Conveyors
• Wind turbines
• Pumps
• Washing machines
• Conveyors
Does this ball bearing need maintenance?
Deep groove ball bearings, if installed properly, don't need much maintenance. Before mounting, ensure the ball bearing is clean and properly lubricated. It's important to ensure proper alignment when mounted to avoid irregular vibration and noise.
