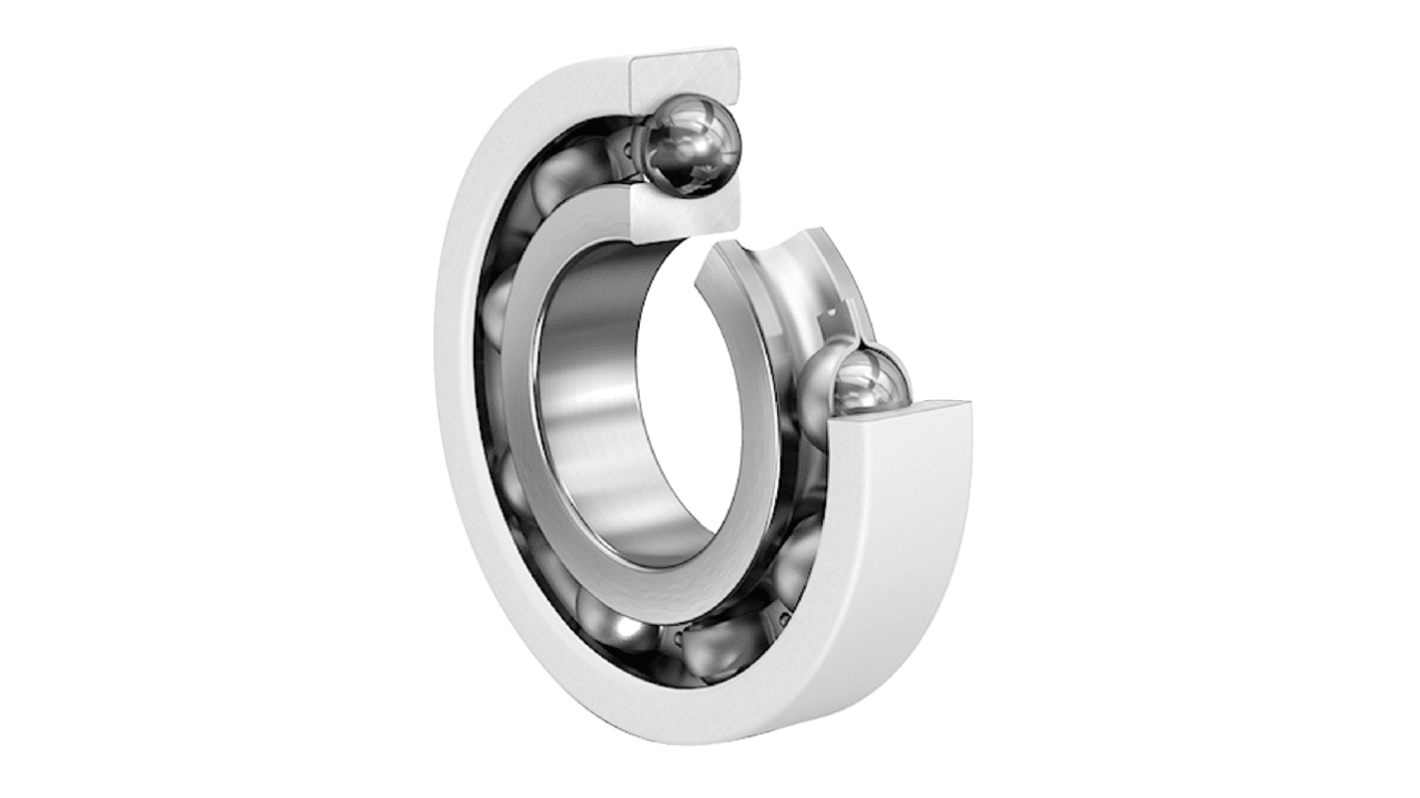

FAG 6320-J20AA-C3 1 Row Deep Groove Ball Bearing - 100 mm ID, 215 mm OD
- RS Stock No.:
- 310-205
- Mfr. Part No.:
- 6320-J20AA-C3
- Brand:
- FAG
Subtotal (1 unit)*
£1,230.07
(exc. VAT)
£1,476.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,230.07 |
*price indicative
- RS Stock No.:
- 310-205
- Mfr. Part No.:
- 6320-J20AA-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 100 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 215 mm | |
| Race Width | 47mm | |
| Cage Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 137000N | |
| Dynamic Load Rating | 177000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 4250rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 100 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 215 mm | ||
Race Width 47mm | ||
Cage Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 137000N | ||
Dynamic Load Rating 177000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 4250rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is engineered for optimal performance in various mechanical applications, offering exceptional reliability and durability. With a robust design featuring a steel sheet metal cage and a ceramic coating, this product ensures enhanced protection against wear and tear. Its high load ratings and stabilised temperature capacity make it an ideal choice for demanding environments. The deep groove configuration provides effective support for both radial and axial loads, making it versatile for different usage scenarios.
Available in a wide range of dimensions for ample application flexibility
Efficient performance with not greased and pre lubricated configurations
Designed for easy installation reducing downtime during maintenance
