FAG 6320-2Z 1 Row Deep Groove Ball Bearing - 100 mm ID, 215 mm OD
- RS Stock No.:
- 310-594
- Mfr. Part No.:
- 6320-2Z
- Brand:
- FAG
Subtotal (1 unit)*
£418.77
(exc. VAT)
£502.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £418.77 |
*price indicative
- RS Stock No.:
- 310-594
- Mfr. Part No.:
- 6320-2Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 100 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 215 mm | |
| Race Width | 47mm | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 137000N | |
| Dynamic Load Rating | 177000N | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 3600rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 100 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 215 mm | ||
Race Width 47mm | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 137000N | ||
Dynamic Load Rating 177000N | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 3600rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE

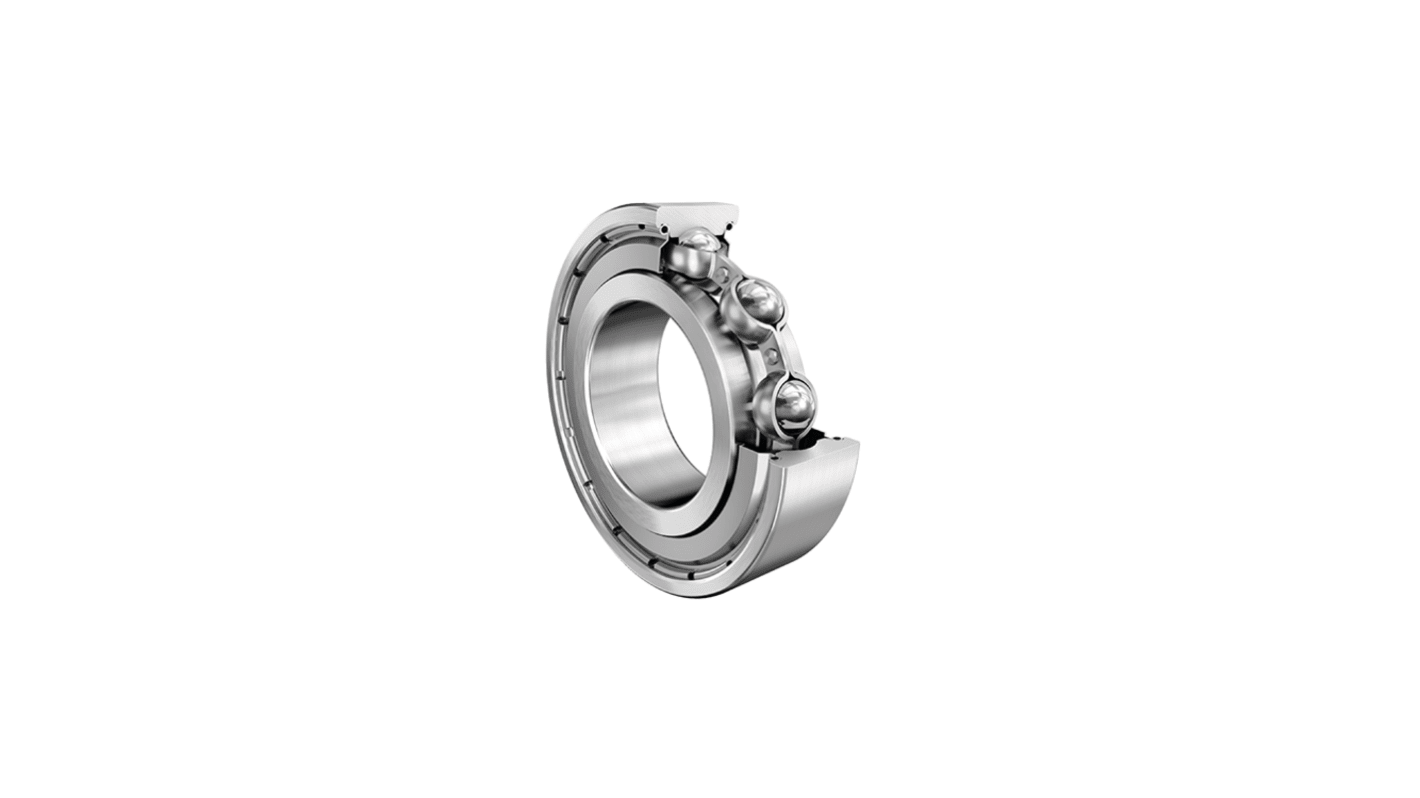

The FAG Deep Groove Ball Bearing is designed to provide reliable performance in a variety of applications. With a robust steel sheet metal cage and non-contact shields on both sides, it effectively prevents contamination while maintaining ease of maintenance. Engineered for dimensional stability at temperatures up to 150°C, this bearing is suitable for both radial and axial loads, ensuring durability even under challenging conditions. Its precision engineering guarantees a standardised radial internal clearance, while the fatigue load limit demonstrates its capacity for enduring long-lasting operational cycles.
Minimum operational temperature flexibility down to 20°C
Manufactured to maintain performance in demanding environments
Provides options for both grease and sealed lubrication methods
