Subtotal (1 unit)*
£5.56
(exc. VAT)
£6.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.56 |
*price indicative
- RS Stock No.:
- 146-227
- Mfr. Part No.:
- 6005EEC3
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Ball Bearing | |
| Inside Diameter | 25 mm | |
| Outside Diameter | 47 mm | |
| Race Width | 12mm | |
| Cage Material | Steel | |
| Static Load Rating | 5.9kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 10.6kN | |
| Series | 6005EEC3 | |
| Standards/Approvals | No | |
| Limiting Speed | 9500rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Ball Bearing | ||
Inside Diameter 25 mm | ||
Outside Diameter 47 mm | ||
Race Width 12mm | ||
Cage Material Steel | ||
Static Load Rating 5.9kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 10.6kN | ||
Series 6005EEC3 | ||
Standards/Approvals No | ||
Limiting Speed 9500rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN

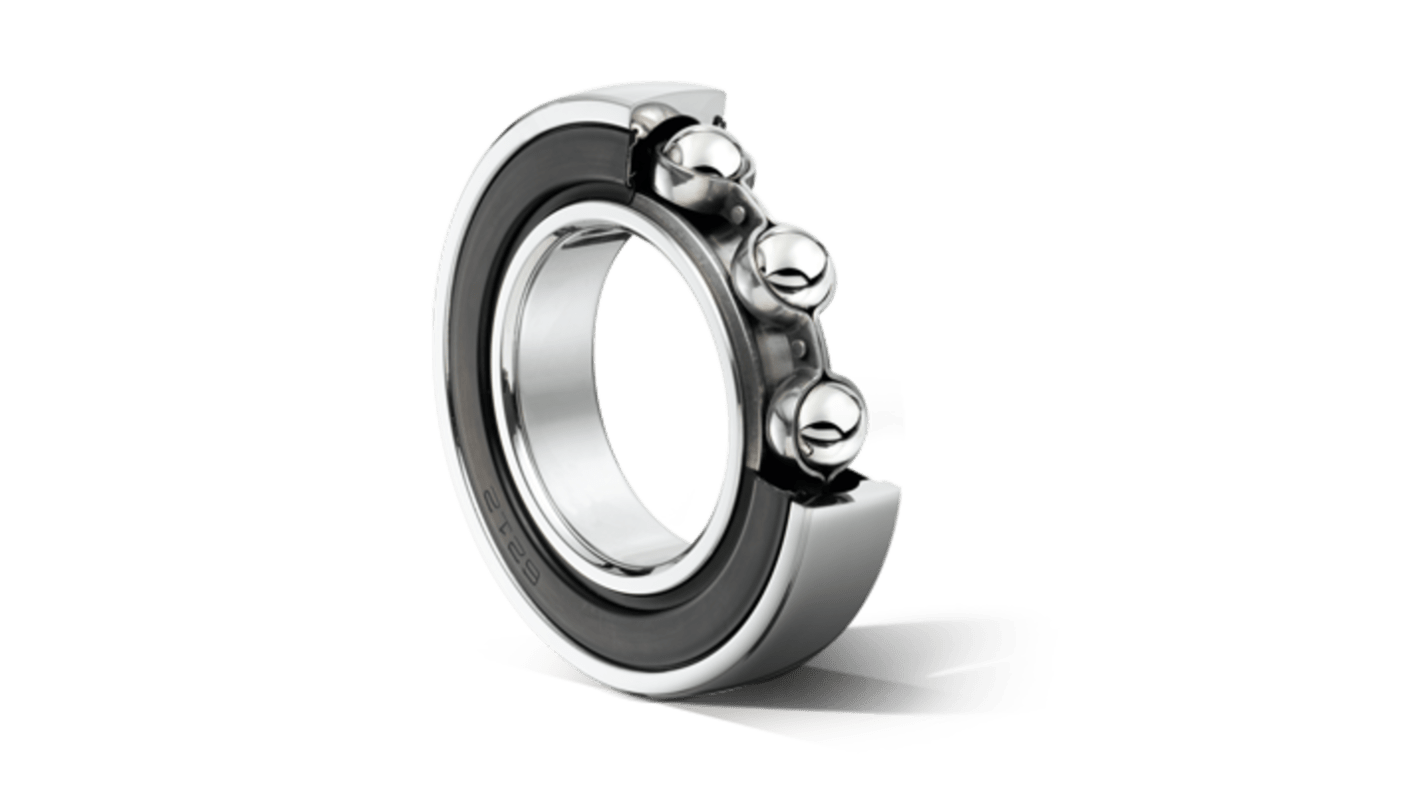

The SNR Single Row Deep Groove Ball Bearings provide impressive performance, featuring a dynamic load rating of 10.6 kN and a static load rating of 5.9 kN. They have a fatigue limit load of 0.27 kN and a coefficient of 14.5, ensuring reliable efficiency across various operating conditions. With a mechanical limit speed of 9,500 rpm, these bearings are well-suited for high-speed applications.
4.118 Hz Characteristic outer ring frequency
5.882 Hz Characteristic inner ring frequency
0.412 Hz Characteristic cage frequency
5.493 Hz Characteristic rolling element frequency
