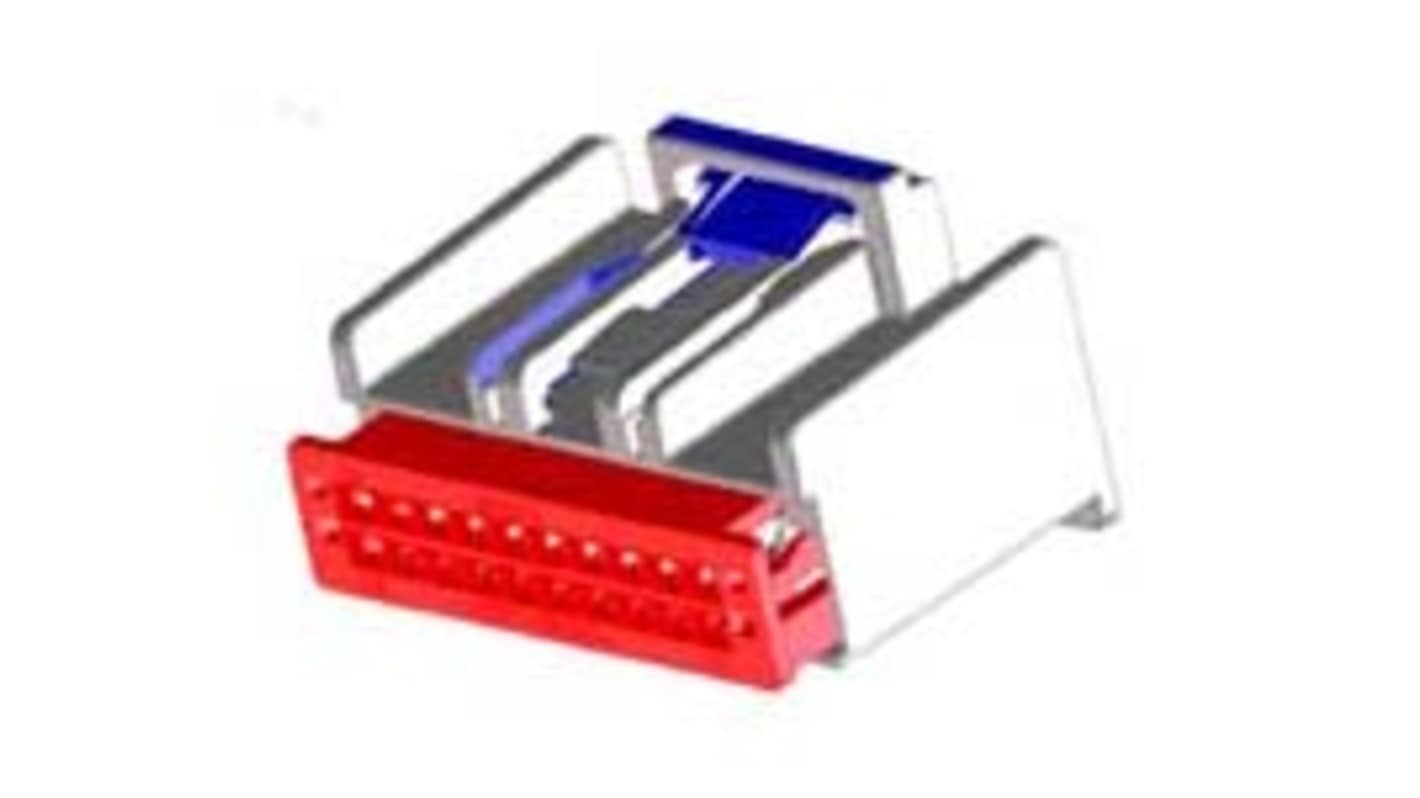

Molex, 30700 Connector Housing Receptacle Natural Cable Mount 20 Way, Crimp Termination 30700-1209
- RS Stock No.:
- 684-860
- Mfr. Part No.:
- 30700-1209
- Brand:
- Molex
Subtotal (1 bag of 120 units)*
£191.87
(exc. VAT)
£230.24
(inc. VAT)
Stock information currently inaccessible
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £191.87 | £1.599 |
*price indicative
- RS Stock No.:
- 684-860
- Mfr. Part No.:
- 30700-1209
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Type | Connector Housing | |
Number of Contacts | 20 | |
Gender | Receptacle | |
Number of Rows | 2 | |
Mounting Type | Cable Mount | |
Series | 30700 | |
Colour | Natural | |
Termination Method | Crimp | |
Select all | ||
---|---|---|
Brand Molex | ||
Type Connector Housing | ||
Number of Contacts 20 | ||
Gender Receptacle | ||
Number of Rows 2 | ||
Mounting Type Cable Mount | ||
Series 30700 | ||
Colour Natural | ||
Termination Method Crimp | ||
- COO (Country of Origin):
- MX
The Molex H-DAC 64 High Density Automotive Connector provides a robust and reliable connection for various automotive applications. Featuring a 2.54mm pitch and a dual row configuration with 20 circuits, this female harness assembly designed for seamless integration in power and wire-to-board or wire-to-wire setups. Its natural resin material offers durability and is specifically engineered to meet the stringent requirements of the automotive industry. With a temperature range spanning from -40° to +100°C, this connector ensures optimal performance under challenging environmental conditions, making it an ideal choice for vehicles where reliability is paramount.
Bag packaging ensures product integrity during transport
Not capable of glow-wire testing, catering to specific application needs
Locking mechanism guarantees secure connection
Meets compliance standards essential for automotive safety
Not capable of glow-wire testing, catering to specific application needs
Locking mechanism guarantees secure connection
Meets compliance standards essential for automotive safety
