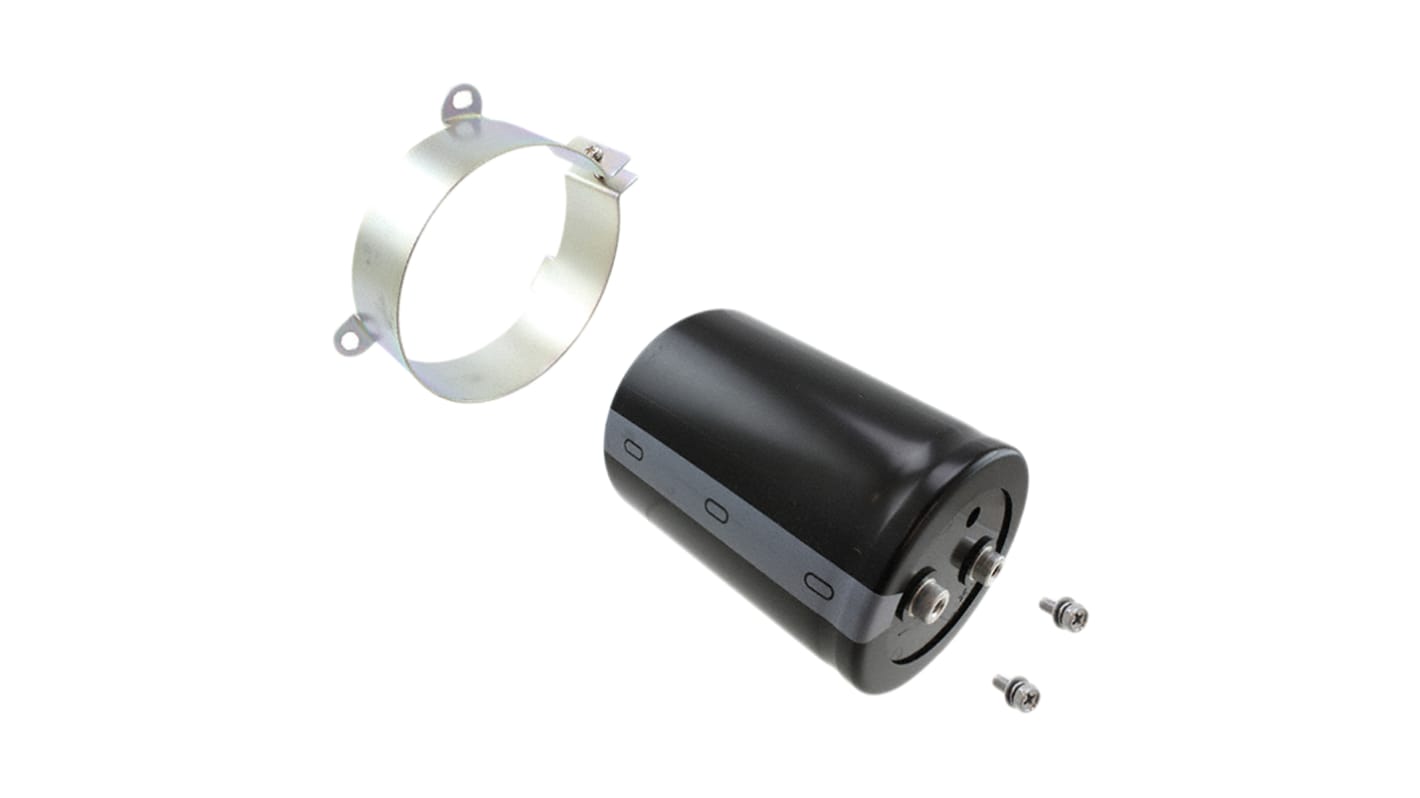

Nichicon 5600 μF Capacitor 450V dc, Screw
- RS Stock No.:
- 714-8733
- Mfr. Part No.:
- LNY2W562MSEH
- Brand:
- Nichicon
Get a bulk buy discount
Add 5 more to save £21.25
View bulk pricing optionsSubtotal (1 unit)*
£70.86
(exc. VAT)
£85.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 13 unit(s) shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £70.86 | - |
| 5 - 9 | £66.61 | £21.25 |
| 10 - 24 | £62.36 | £85.00 |
| 25 + | £59.95 | £272.75 |
*price indicative
- RS Stock No.:
- 714-8733
- Mfr. Part No.:
- LNY2W562MSEH
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Product Type | Capacitor | |
| Capacitance | 5600μF | |
| Voltage | 450V dc | |
| Mount Type | Screw | |
| Construction | Cylindrical Can | |
| Height | 125mm | |
| Length | 125mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 76.2mm | |
| Termination Type | Screw | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 17.6A | |
| Maximum Operating Temperature | 85°C | |
| Lifetime | 2000 h | |
| Standards/Approvals | EU, RoHS | |
| Automotive Standard | No | |
| Series | LNY | |
| Tolerance | ±20 % | |
| Leakage Current | 4.8mA | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Product Type Capacitor | ||
Capacitance 5600μF | ||
Voltage 450V dc | ||
Mount Type Screw | ||
Construction Cylindrical Can | ||
Height 125mm | ||
Length 125mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 76.2mm | ||
Termination Type Screw | ||
Pin Count 2 | ||
Capacitor Ripple Current 17.6A | ||
Maximum Operating Temperature 85°C | ||
Lifetime 2000 h | ||
Standards/Approvals EU, RoHS | ||
Automotive Standard No | ||
Series LNY | ||
Tolerance ±20 % | ||
Leakage Current 4.8mA | ||
- COO (Country of Origin):
- JP
Nichicon NY Series
Nichicon NY Series aluminium electrolytic capacitors are screw terminal clamp fixing capacitors that offer a wide operating temperature range, rated capacitance range of 620 to 22000μF, high ripple current, and a load life of 2000 hours. These NY electrolytic capacitors are suited for use in industrial power supplies for inverter circuitry.
Load life of 2000 hours
High ripple current
Flame retardant
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
