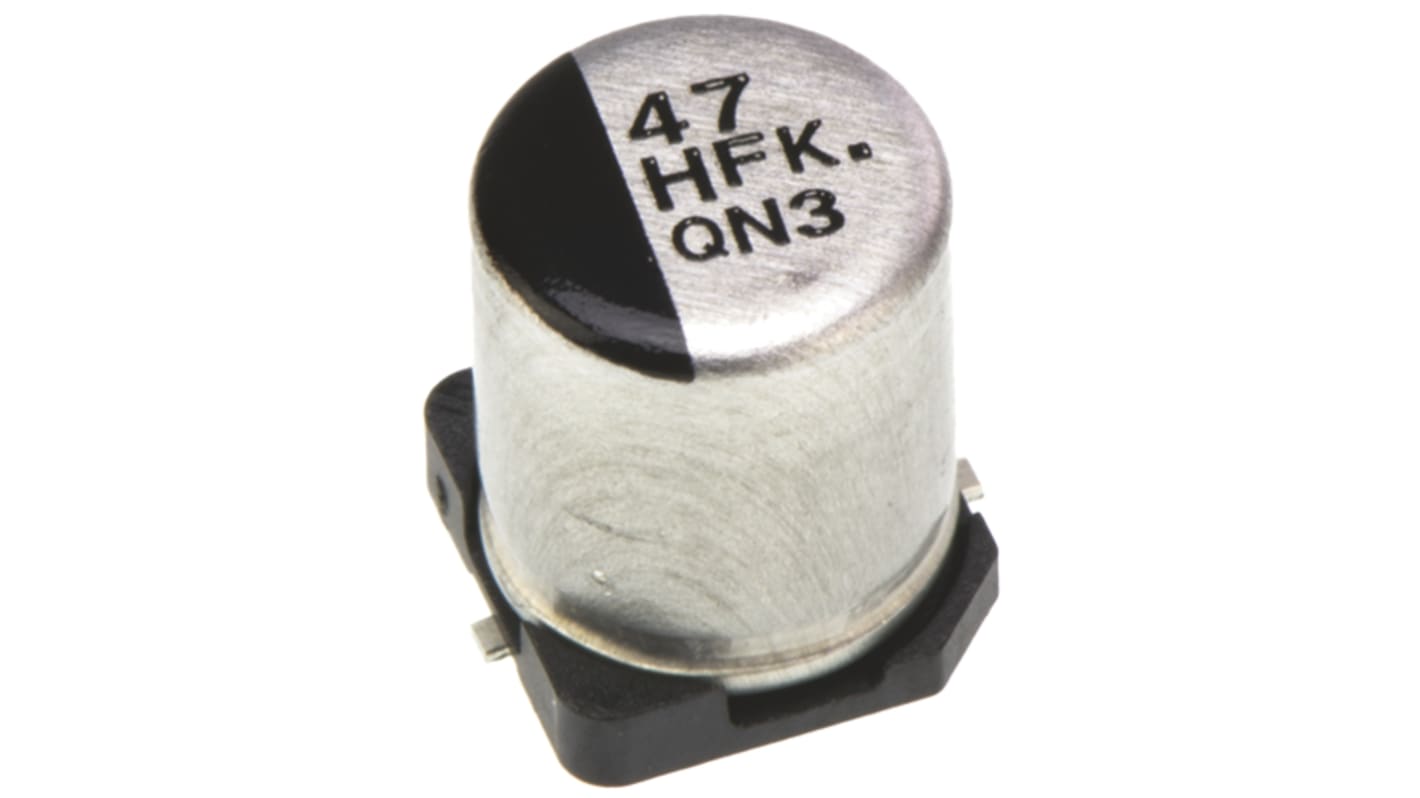

Panasonic 47 μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount Solder - EEEFK1H470XP 900

RS Stock No.:: 708-3532
Distrelec Article No.:: 304-43-745
Mfr. Part No.:: EEEFK1H470XP
Brand:: Panasonic

Panasonic 47 μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount Solder - EEEFK1H470XP 900

Subtotal (1 pack of 25 units)*

£4.70

(exc. VAT)

£5.65

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

175 unit(s) ready to ship
Plus 150 unit(s) ready to ship from another location
Plus 37,300 unit(s) shipping from 13 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 +	£0.188	£4.70

*price indicative

RS Stock No.:: 708-3532
Distrelec Article No.:: 304-43-745
Mfr. Part No.:: EEEFK1H470XP
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Product Type	Aluminium Electrolytic Capacitor
	Capacitance	47μF
	Voltage	50V dc
	Mount Type	Surface Mount
	Packaging	Carrier Tape
	Height	7.7mm
	Polarity	Polar
	Length	7.7mm
	Package/Case	900
	Minimum Operating Temperature	-55°C
	Diameter	6.3mm
	Pin Count	2
	Termination Type	Solder
	Maximum Operating Temperature	105°C
	Lifetime	2000 h
	Standards/Approvals	RoHS
	Tolerance ±	20%
	Series	FK
	Leakage Current	3μA
	Ripple Current	195mA
	Automotive Standard	AEC-Q200
	Dissipation Factor	200%

	Select all
	Brand Panasonic
	Product Type Aluminium Electrolytic Capacitor
	Capacitance 47μF
	Voltage 50V dc
	Mount Type Surface Mount
	Packaging Carrier Tape
	Height 7.7mm
	Polarity Polar
	Length 7.7mm
	Package/Case 900
	Minimum Operating Temperature -55°C
	Diameter 6.3mm
	Pin Count 2
	Termination Type Solder
	Maximum Operating Temperature 105°C
	Lifetime 2000 h
	Standards/Approvals RoHS
	Tolerance ± 20%
	Series FK
	Leakage Current 3μA
	Ripple Current 195mA
	Automotive Standard AEC-Q200
	Dissipation Factor 200%

Panasonic Series FK Aluminium Electrolytic Capacitor, 47μF Capacitance, 50V Voltage - EEEFK1H470XP

This aluminium electrolytic capacitor is designed for surface mounting applications. With a capacitance of 47 μF and a voltage rating of 50V DC, it is a robust component suitable for various electronic circuits. The dimensions are compact at 6.3mm in diameter and 7.7mm in height, making it ideal for systems with limited space.

Features & Benefits

• Suitable for use in automotive applications due to AEC-Q200 compliance

• Polarised design helps ensure correct installation within circuits

• Low leakage current at just 3 μA optimises efficiency

• High maximum operating temperature of +105 °C supports demanding environments

• Ripple current rating of 195 mA provides reliable performance

• Tolerance of ±20% assists with precise circuit designs

Applications

• Used with automotive electronics for reliability

• Ideal for audio equipment requiring stable performance

• Suitable for power supply circuits demanding high efficiency

• Employed in DC-DC converters for effective voltage regulation

What are the temperature limits for this component?

It operates effectively in a temperature range from -55 °C to +105 °C, making it suitable for a variety of environments.

How does the polarised design benefit circuit installation?

The polarisation ensures that the capacitor is installed in the correct orientation, preventing circuit failures that could occur from improper installation.

What applications require the low leakage current performance?

The low leakage current is essential in precision applications, such as those in telecommunications and sensitive measurement equipment, to maintain circuit integrity.

What impact does the ripple current rating have on performance?

A ripple current rating of 195 mA ensures stable operation under varying load conditions, which is crucial in power supply circuits.

How can this capacitor enhance efficiency in automotive applications?

Its AEC-Q200 certification confirms reliability and durability, addressing the stringent requirements of automotive electronics in challenging environments.
