Vishay 680 μF Capacitor 35V dc, Through Hole - MAL214630681E3 Radial Lead
- RS Stock No.:
- 280-3541
- Mfr. Part No.:
- MAL214630681E3
- Brand:
- Vishay
Subtotal (1 box of 500 units)*
£407.00
(exc. VAT)
£488.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.814 | £407.00 |
*price indicative
- RS Stock No.:
- 280-3541
- Mfr. Part No.:
- MAL214630681E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Capacitor | |
| Capacitance | 680μF | |
| Voltage | 35V dc | |
| Construction | Cylindrical Can | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 12.5mm | |
| Termination Type | Radial Lead | |
| Capacitor Ripple Current | 1.6A | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | IEC 60068, IEC 60384-4/EN 130300 | |
| Lifetime | 6000 h | |
| Lead Pitch | 5mm | |
| Leakage Current | 241μA | |
| Series | 146 RTI | |
| Equivalent Series Resistance ESR | 0.36Ω | |
| Tolerance | ±20 % | |
| Automotive Standard | AEC-Q200 | |
| Dissipation Factor | 0.12% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Capacitor | ||
Capacitance 680μF | ||
Voltage 35V dc | ||
Construction Cylindrical Can | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Minimum Operating Temperature -55°C | ||
Diameter 12.5mm | ||
Termination Type Radial Lead | ||
Capacitor Ripple Current 1.6A | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals IEC 60068, IEC 60384-4/EN 130300 | ||
Lifetime 6000 h | ||
Lead Pitch 5mm | ||
Leakage Current 241μA | ||
Series 146 RTI | ||
Equivalent Series Resistance ESR 0.36Ω | ||
Tolerance ±20 % | ||
Automotive Standard AEC-Q200 | ||
Dissipation Factor 0.12% | ||

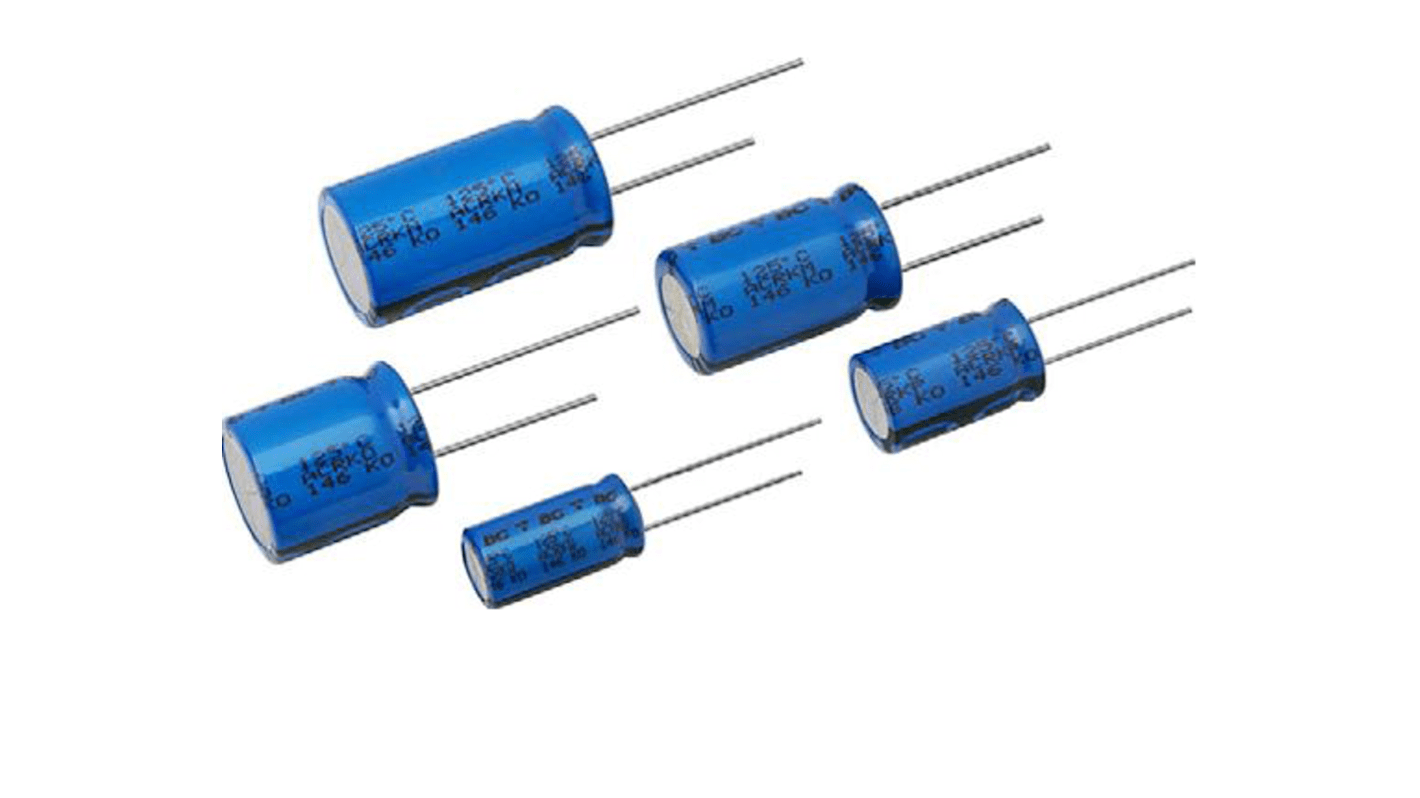

The Vishay Aluminium electrolytic capacitors are built in cylindrical aluminium cases with radial leads. This aluminium electrolytic capacitor has a long useful life and excellent ripple current capability.
Lead free
Very low ESR
RoHS compliant
Charge and discharge proof
Insulated with blue PET sleeve
High stability and high reliability
