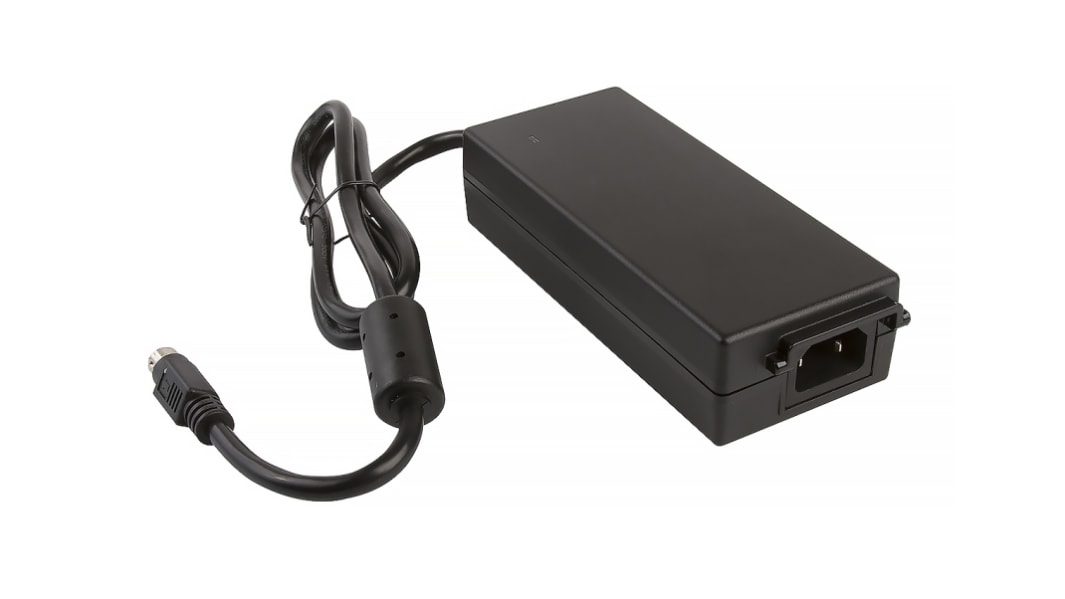

XP Power 85W Power Brick AC/DC Adapter 19V dc Output, 4.47A Output
- RS Stock No.:
- 121-7082
- Mfr. Part No.:
- AHM85PS19
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£63.16
(exc. VAT)
£75.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £63.16 |
| 5 - 9 | £61.26 |
| 10 - 24 | £59.36 |
| 25 - 49 | £57.47 |
| 50 + | £55.58 |
*price indicative
- RS Stock No.:
- 121-7082
- Mfr. Part No.:
- AHM85PS19
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 19V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 4.47A | |
| Maximum Temperature | +60°C | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Power Rating | 85W | |
| Cable Length | 900mm | |
| Medical Approved | Yes | |
| Standards Met | ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | |
| MTBF | 153kh | |
| Minimum Temperature | 0°C | |
| Depth | 37mm | |
| Width | 64mm | |
| Length | 150mm | |
| Series | AHM | |
| Line Regulation Range | ±1.5% | |
| Load Regulation | ±3% | |
| Energy Efficiency Level | V | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 19V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 4.47A | ||
Maximum Temperature +60°C | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Power Rating 85W | ||
Cable Length 900mm | ||
Medical Approved Yes | ||
Standards Met ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | ||
MTBF 153kh | ||
Minimum Temperature 0°C | ||
Depth 37mm | ||
Width 64mm | ||
Length 150mm | ||
Series AHM | ||
Line Regulation Range ±1.5% | ||
Load Regulation ±3% | ||
Energy Efficiency Level V | ||
