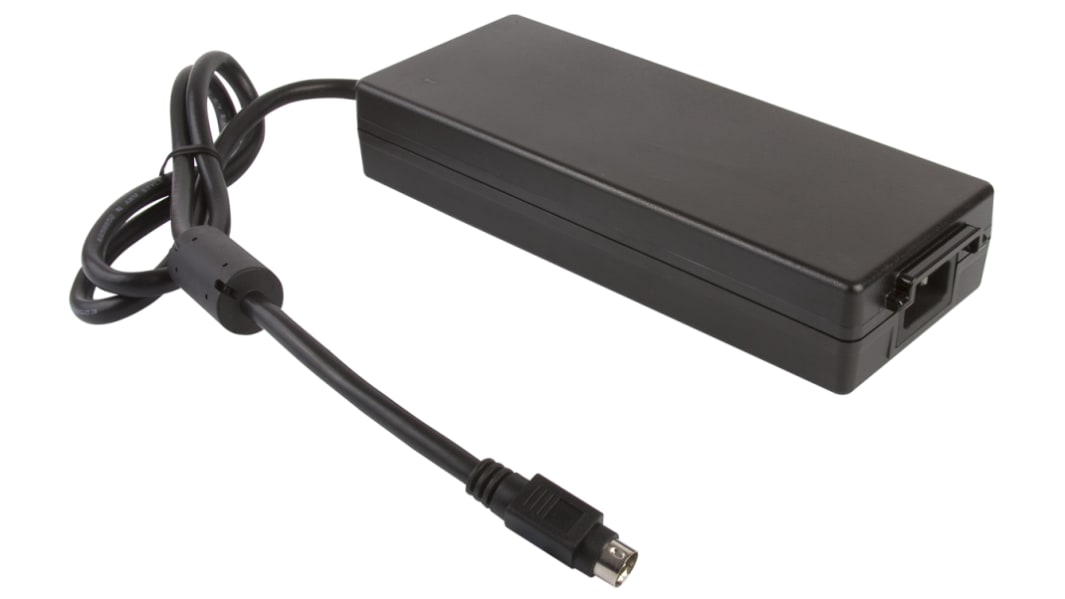

XP Power 150W Power Brick AC/DC Adapter 19V dc Output, 7.89A Output
- RS Stock No.:
- 121-7061
- Distrelec Article No.:
- 301-83-304
- Mfr. Part No.:
- AHM150PS19
- Brand:
- XP Power
Subtotal (1 unit)*
£98.67
(exc. VAT)
£118.40
(inc. VAT)
FREE delivery for orders over £50.00
- 118 left, ready to ship
- Plus 4 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £98.67 |
| 5 - 9 | £95.71 |
| 10 - 24 | £92.75 |
| 25 - 49 | £89.80 |
| 50 + | £86.83 |
*price indicative
- RS Stock No.:
- 121-7061
- Distrelec Article No.:
- 301-83-304
- Mfr. Part No.:
- AHM150PS19
- Brand:
- XP Power
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 19V dc | |
| Input Voltage | 80 → 264V ac | |
| Output Current | 7.89A | |
| Maximum Temperature | +60°C | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Power Rating | 150W | |
| Cable Length | 900mm | |
| Medical Approved | Yes | |
| MTBF | 153kh | |
| Standards Met | ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | |
| Length | 204.9mm | |
| Series | AHM | |
| Load Regulation | ±3% | |
| Line Regulation Range | ±1.5% | |
| Minimum Temperature | 0°C | |
| Depth | 37mm | |
| Width | 80mm | |
| Energy Efficiency Level | V | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 19V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current 7.89A | ||
Maximum Temperature +60°C | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Power Rating 150W | ||
Cable Length 900mm | ||
Medical Approved Yes | ||
MTBF 153kh | ||
Standards Met ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | ||
Length 204.9mm | ||
Series AHM | ||
Load Regulation ±3% | ||
Line Regulation Range ±1.5% | ||
Minimum Temperature 0°C | ||
Depth 37mm | ||
Width 80mm | ||
Energy Efficiency Level V | ||
XP Power - AHM Series of Plug-in Power Supplies
CEC2008 & EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
<0.5 W no load input power
IP22 environmental rating
