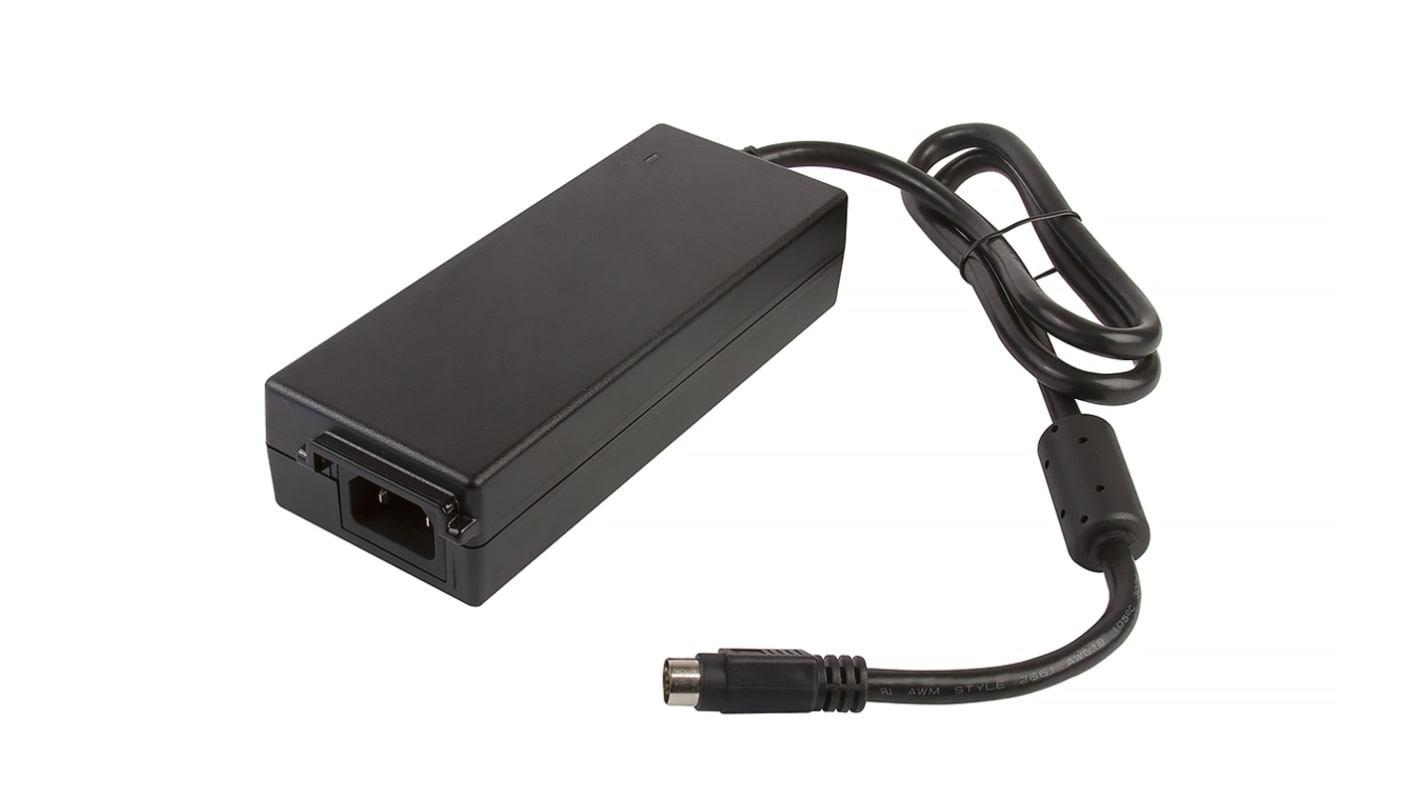

XP Power 100W Power Brick AC/DC Adapter 19V dc Output, 5.26A Output

View all AC/DC Adapters
Currently unavailable
Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
XP Power 120W Power Brick AC/DC Adapter 19V dc Output, Maximum of 6.32A Output
RS Stock No.
172-0775

Each

£65.18

(exc. VAT)

£78.22

(inc. VAT)

RS Stock No.:
121-7051
Mfr. Part No.:
AHM100PS19
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Adapter Type

Power Brick Adapter

Output Voltage

19V dc

Input Voltage

90 → 264V ac

Output Current

5.26A

Maximum Temperature

+60°C

Input Connector

IEC 320-C14

Number of Outputs

1

Power Rating

100W

Cable Length

900mm

Medical Approved

Yes

MTBF

153kh

Standards Met

ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950

Minimum Temperature

0°C

Depth

37mm

Series

AHM

Energy Efficiency Level

V

Load Regulation

±3%

Line Regulation Range

±1.5%

Length

165mm

Width

64mm

XP Power - AHM Series of Plug-in Power Supplies


The AHM series from XP Power offer a wide range of 85 W to 250 W plug-in power supplies, which all feature level V energy efficiency. These reliable power supplies are all CEC2008 and EISA2007 compliant as well as being IT and medically approved. Optional Class I and Class II versions are available except for with AHM250.

85 W to 250 W plug-in power supplies
CEC2008 & EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
<0.5 W no load input power
IP22 environmental rating


Switch Mode - XP Power
