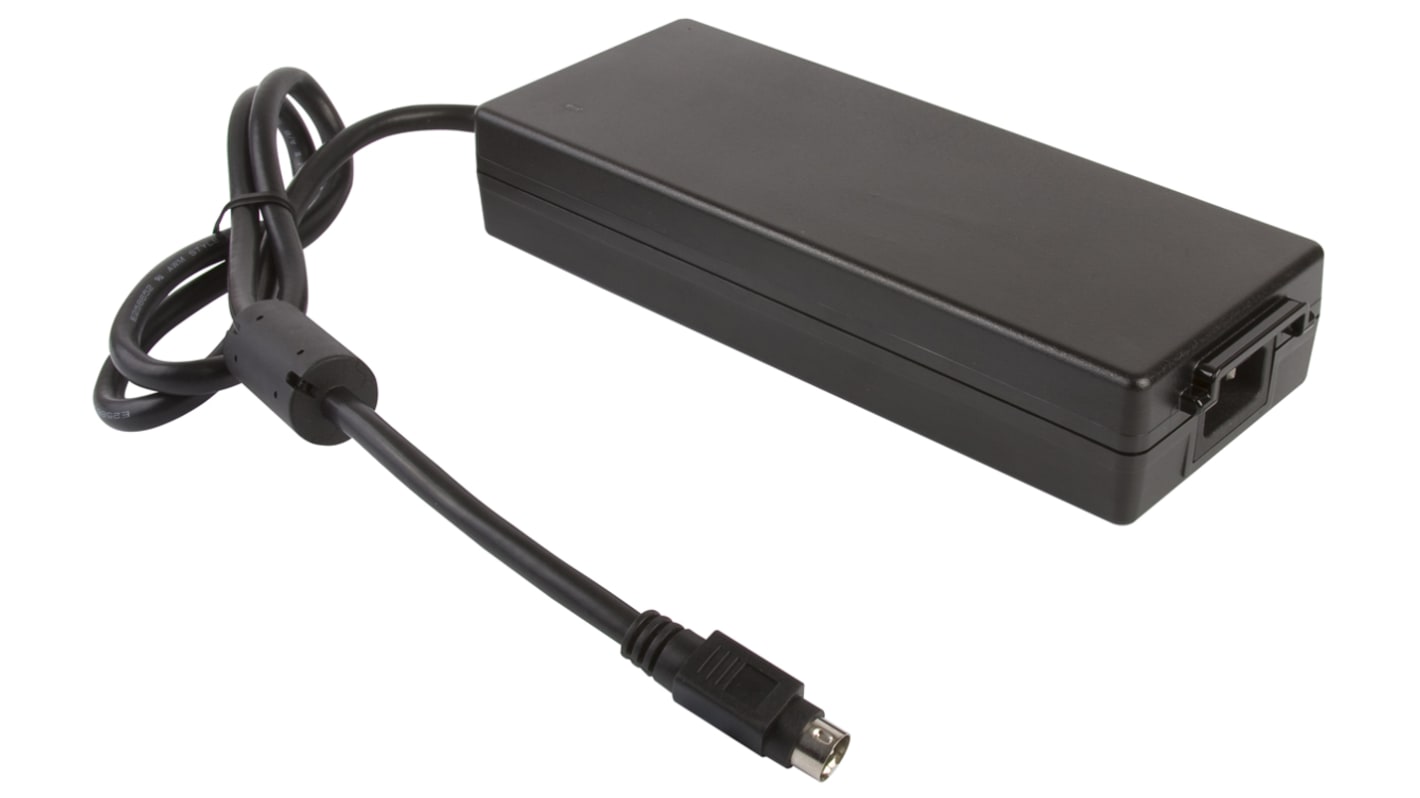

XP Power 180W Power Brick AC/DC Adapter 19V dc Output, 9.47A Output

View all AC/DC Adapters
Bulk discount available

Subtotal (1 unit)*

£114.45

(exc. VAT)

£137.34

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 20 left, ready to ship
  • Plus 1 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£114.45
5 - 9£111.02
10 - 24£107.58
25 - 49£104.15
50 +£100.71

*price indicative

RS Stock No.:
121-7069
Distrelec Article No.:
301-83-306
Mfr. Part No.:
AHM180PS19
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Adapter Type

Power Brick Adapter

Output Voltage

19V dc

Input Voltage

80 → 264V ac

Output Current

9.47A

Maximum Temperature

+60°C

Input Connector

IEC 320-C14

Number of Outputs

1

Power Rating

180W

Cable Length

900mm

Medical Approved

Yes

MTBF

153kh

Standards Met

ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950

Line Regulation Range

±1.5%

Depth

41mm

Minimum Temperature

0°C

Energy Efficiency Level

V

Series

AHM

Length

204.9mm

Load Regulation

±3%

Width

80mm

XP Power Desktop Power Supply


The XP Power AHM series plug-in Power unit desktop Power supply has an output voltage rating of 19VDC. It provides 180W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 9.47A. It is ideal for many small electrical devices.

Features and Benefits


Energy efficiency level V
Output connection type is DC plug
Load regulation range is 3%
Holdup time is 20ms
Efficiency is 92%

Certifications


CEC2008
EISA2007
IT and medical approvals
China Compulsory Certification (CCC) qualified
Optional Class II versions
Optional white case versions
EN55011/22/FCC Class B conducted
EN55011/22/FCC Class B radiated
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
