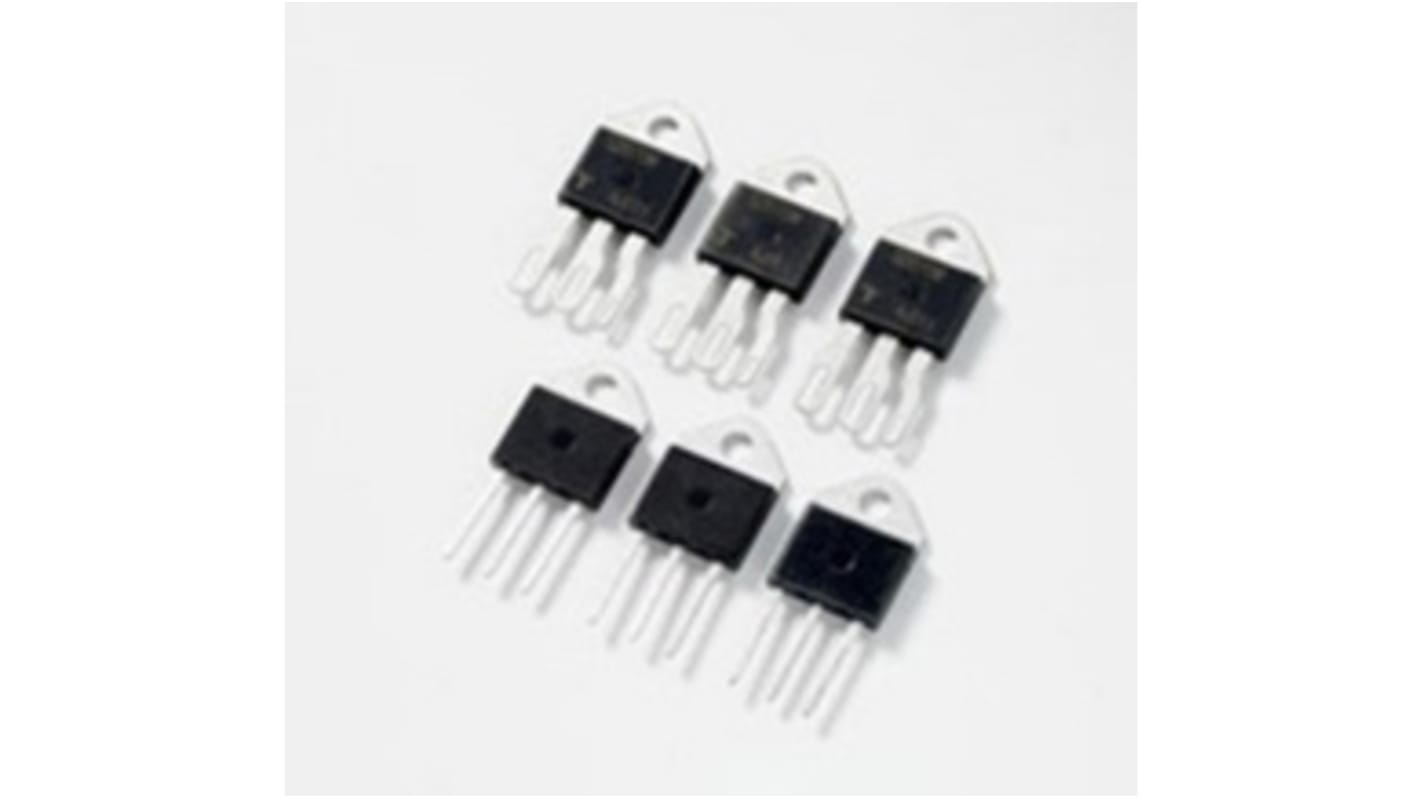

Littelfuse Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 2V

View all TRIACs

Subtotal (1 tube of 250 units)*

£1,586.50

(exc. VAT)

£1,903.75

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Tube*
250 +£6.346£1,586.50

*price indicative

RS Stock No.:
171-9500
Mfr. Part No.:
Q6040K7TP
Brand:
Littelfuse
Find similar products by selecting one or more attributes.
Select all

Brand

Littelfuse

Rated Average On-State Current

40A

Mounting Type

Through Hole

Package Type

TO-218AC

Maximum Gate Trigger Current

100mA

Repetitive Peak Reverse Voltage

600V

Surge Current Rating

400A

Pin Count

3

Maximum Gate Trigger Voltage

2V

Maximum Holding Current

100mA

Dimensions

16 x 4.78 x 21.21mm

Length

16mm

Width

4.78mm

Height

21.21mm

Repetitive Peak Off-State Current

20µA

Peak On-State Voltage

1.8V

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
CN
40 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability

Features & Benefits
Glass - passivated junctions
Voltage capability up to 1000V
Surge capability up to 400A
Applications
Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls.
Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances.
Alternistor Triacs (no snubber required) are used in applications with extremely inductive loads requiring highest commutation performance.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage
