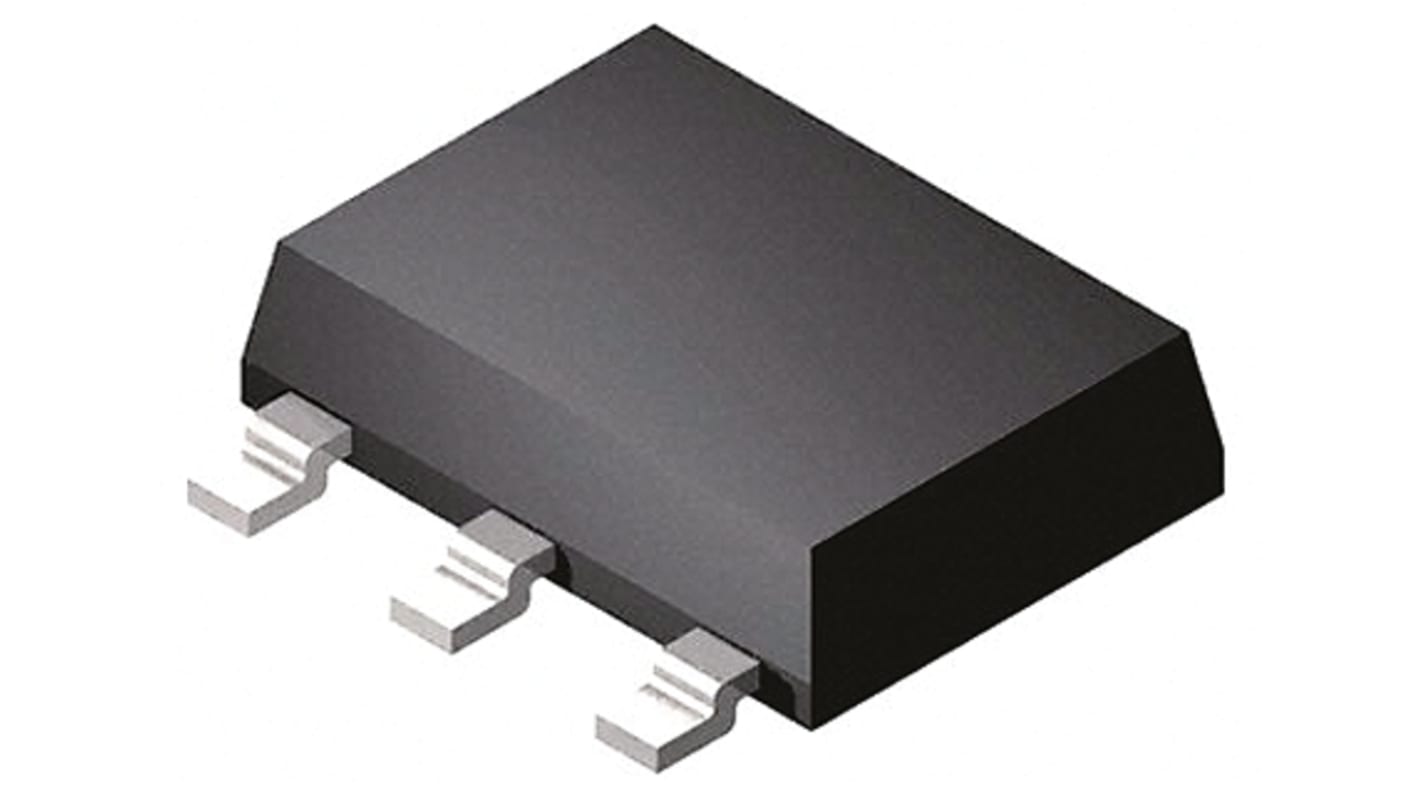

Littelfuse Surface Mount, 3+Tab-pin, TRIAC, 200V, Gate Trigger 2V 600V
- RS Stock No.:
- 171-0127
- Mfr. Part No.:
- MAC08BT1G
- Brand:
- Littelfuse
Subtotal (1 reel of 1000 units)*
£180.00
(exc. VAT)
£220.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.18 | £180.00 |
*price indicative
- RS Stock No.:
- 171-0127
- Mfr. Part No.:
- MAC08BT1G
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Littelfuse | |
Rated Average On-State Current | 0.8A | |
Mounting Type | Surface Mount | |
Package Type | SOT-223 | |
Maximum Gate Trigger Current | 10mA | |
Repetitive Peak Reverse Voltage | 200V | |
Surge Current Rating | 8A | |
Pin Count | 3+Tab | |
Maximum Gate Trigger Voltage | 2V | |
Repetitive Peak Forward Blocking Voltage | 600V | |
Maximum Holding Current | 5mA | |
Dimensions | 6.7 x 3.7 x 1.65mm | |
Length | 6.7mm | |
Width | 3.7mm | |
Height | 1.65mm | |
Peak On-State Voltage | 1.9V | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +110 °C | |
Repetitive Peak Off-State Current | 200µA | |
Select all | ||
---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current 0.8A | ||
Mounting Type Surface Mount | ||
Package Type SOT-223 | ||
Maximum Gate Trigger Current 10mA | ||
Repetitive Peak Reverse Voltage 200V | ||
Surge Current Rating 8A | ||
Pin Count 3+Tab | ||
Maximum Gate Trigger Voltage 2V | ||
Repetitive Peak Forward Blocking Voltage 600V | ||
Maximum Holding Current 5mA | ||
Dimensions 6.7 x 3.7 x 1.65mm | ||
Length 6.7mm | ||
Width 3.7mm | ||
Height 1.65mm | ||
Peak On-State Voltage 1.9V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +110 °C | ||
Repetitive Peak Off-State Current 200µA | ||
TRIAC, ON Semiconductor
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
