Littelfuse Through Hole, 3-Pin, TRIAC 600 V, Gate Trigger 1.7 V
- RS Stock No.:
- 121-6472
- Mfr. Part No.:
- BTA16-600CW3G
- Brand:
- Littelfuse

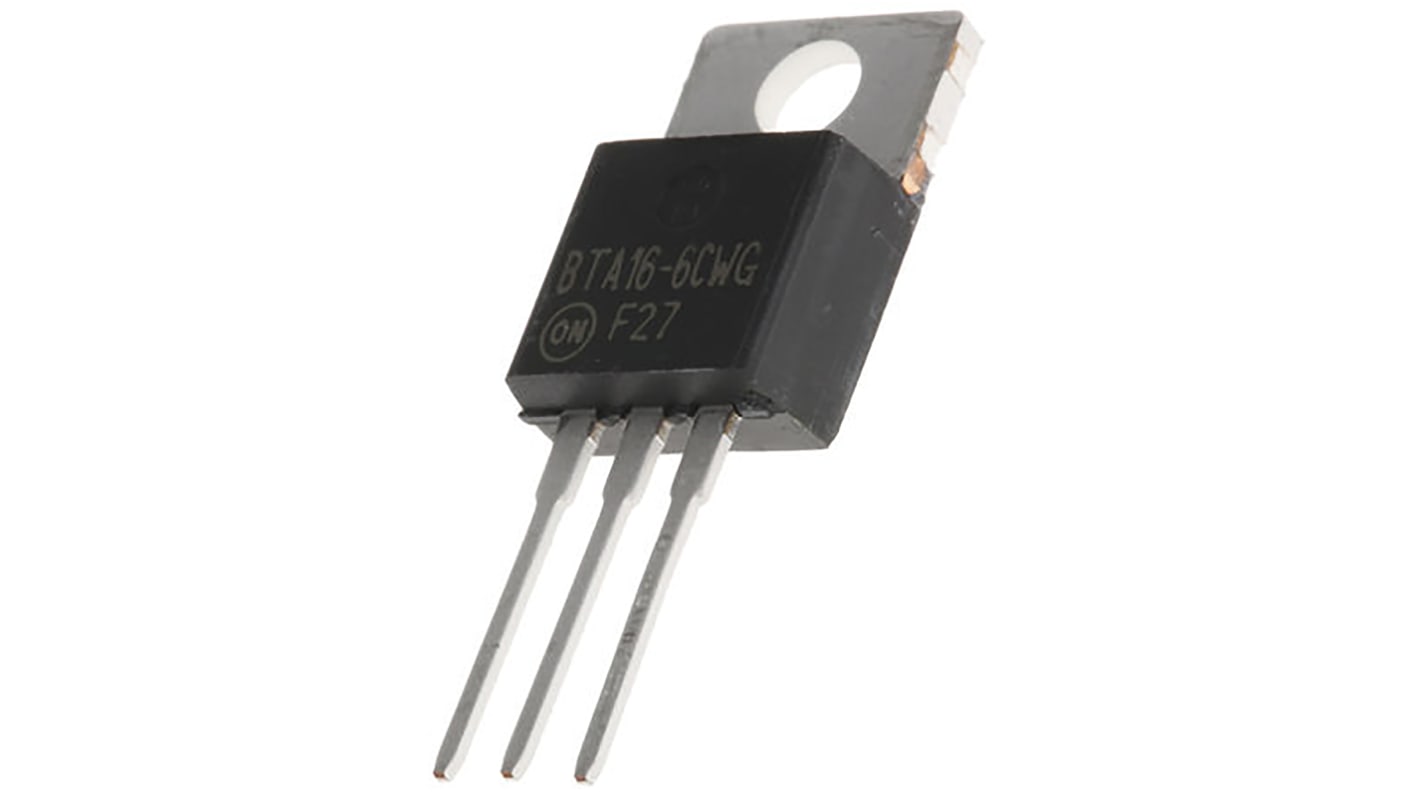

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 121-6472
- Mfr. Part No.:
- BTA16-600CW3G
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Rated Average On-State Current Irms | 16A | |
| Product Type | TRIAC | |
| Mount Type | Through Hole | |
| Package Type | TO-220 | |
| Maximum Gate Trigger Current Igt | 35mA | |
| Repetitive Peak Reverse Voltage VDRM | 600V | |
| Surge Current Rating | 170A | |
| Pin Count | 3 | |
| Configuration | Silicon Bidirectional Thyristor | |
| Maximum Gate Trigger Voltage Vgt | 1.7V | |
| Maximum Holding Current Ih | 50mA | |
| Minimum Operating Temperature | -40°C | |
| Peak Gate Power Dissipation | 20W | |
| Maximum Operating Temperature | 125°C | |
| Length | 10.28mm | |
| Height | 15.75mm | |
| Standards/Approvals | Pb-Free, RoHS | |
| Series | BTA16-xCWG | |
| Repetitive Peak Off-State Current | 0.005mA | |
| Automotive Standard | No | |
| Peak On-State Voltage | 1.55V | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current Irms 16A | ||
Product Type TRIAC | ||
Mount Type Through Hole | ||
Package Type TO-220 | ||
Maximum Gate Trigger Current Igt 35mA | ||
Repetitive Peak Reverse Voltage VDRM 600V | ||
Surge Current Rating 170A | ||
Pin Count 3 | ||
Configuration Silicon Bidirectional Thyristor | ||
Maximum Gate Trigger Voltage Vgt 1.7V | ||
Maximum Holding Current Ih 50mA | ||
Minimum Operating Temperature -40°C | ||
Peak Gate Power Dissipation 20W | ||
Maximum Operating Temperature 125°C | ||
Length 10.28mm | ||
Height 15.75mm | ||
Standards/Approvals Pb-Free, RoHS | ||
Series BTA16-xCWG | ||
Repetitive Peak Off-State Current 0.005mA | ||
Automotive Standard No | ||
Peak On-State Voltage 1.55V | ||
TRIAC, ON Semiconductor
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
