Allen Bradley 700-HV Series DIN Rail Timer Relay, 2-Contact, 24 V dc 240V ac, 0.1 to 30 min, DPDT Switch Configuration
- RS Stock No.:
- 220-2676
- Mfr. Part No.:
- 700-HV32DDU12
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£159.43
(exc. VAT)
£191.32
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £159.43 |
*price indicative
- RS Stock No.:
- 220-2676
- Mfr. Part No.:
- 700-HV32DDU12
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 to 30 min | |
| Number of Contacts | 2 | |
| Contact Configuration | DPDT | |
| Supply DC Voltage | 24 V dc | |
| Minimum Operating Temperature | -55°C | |
| Contact Current | 10A | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 60mm | |
| Height | 43mm | |
| Series | 700-HV | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.1 to 30 min | ||
Number of Contacts 2 | ||
Contact Configuration DPDT | ||
Supply DC Voltage 24 V dc | ||
Minimum Operating Temperature -55°C | ||
Contact Current 10A | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 60mm | ||
Height 43mm | ||
Series 700-HV | ||

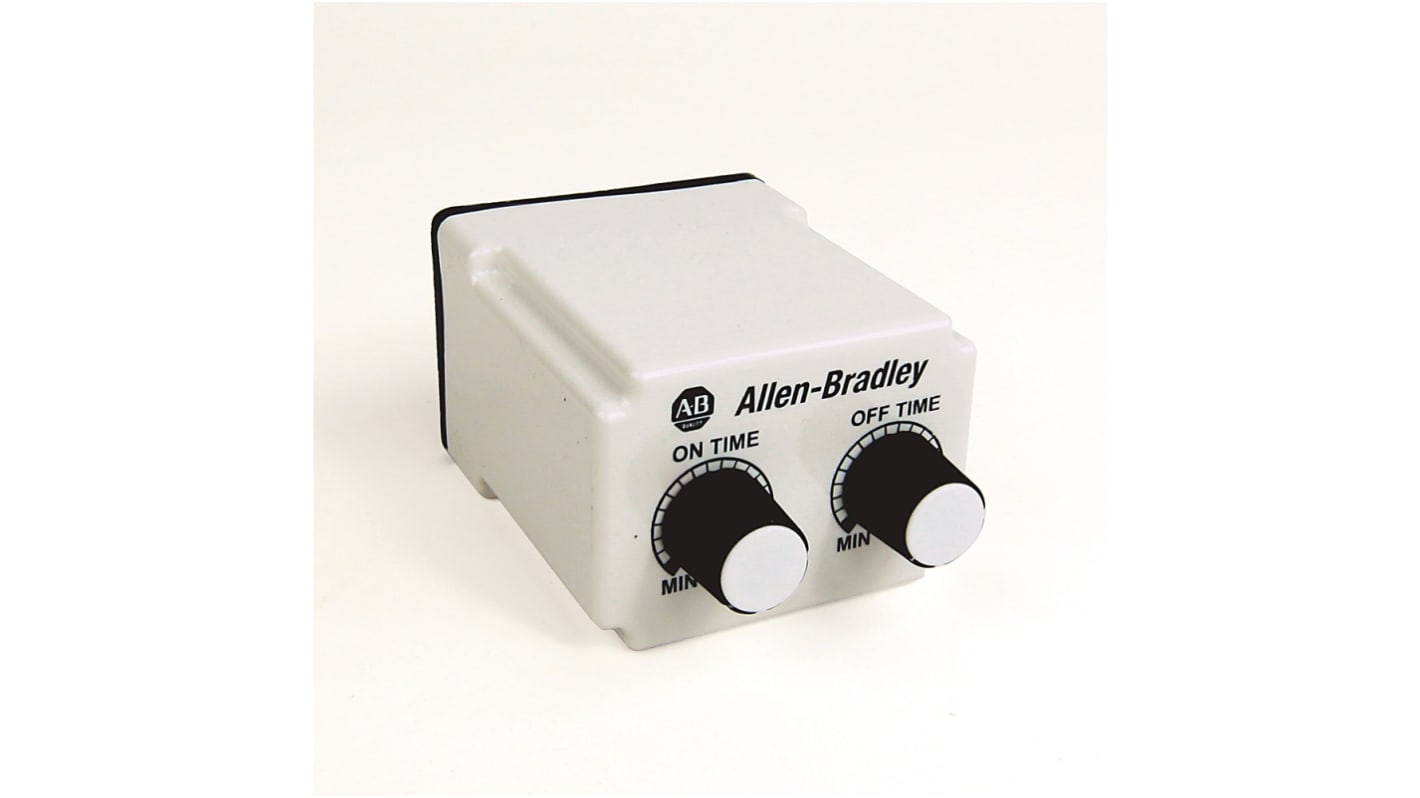

The Rockwell Automation Repeat Cycle Timing Relay has DPDT contact arrangement. It is adjustable timer which have 1.0 to 100 minutes off timing range and 1.0 to 100 minutes on timing range.
It is pin-style terminal
