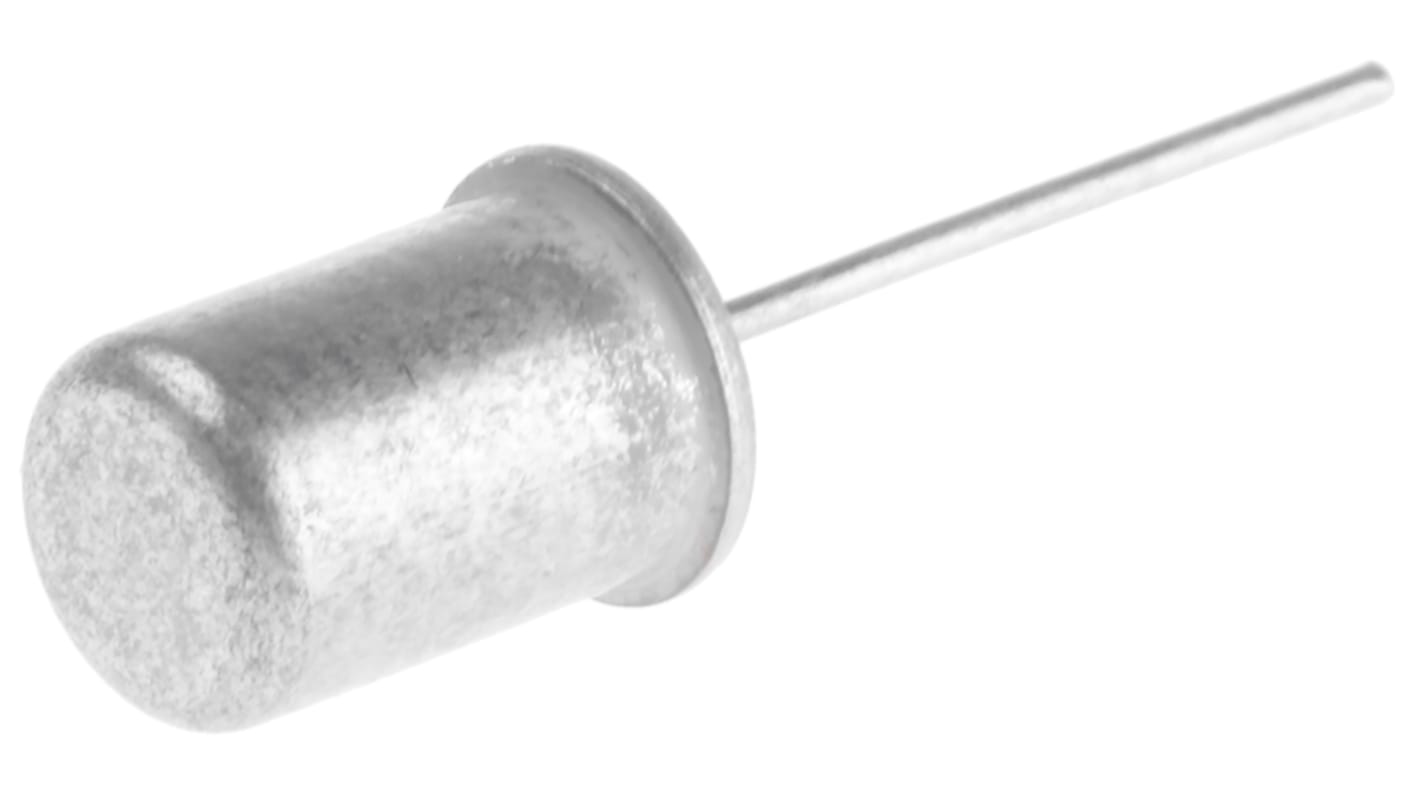

Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V ac
- RS Stock No.:
- 779-0876
- Mfr. Part No.:
- CW1317C-0
- Brand:
- Assemtech
Subtotal (1 unit)*
£6.61
(exc. VAT)
£7.93
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.61 |
*price indicative
- RS Stock No.:
- 779-0876
- Mfr. Part No.:
- CW1317C-0
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Product Type | Tilt Switch | |
| Differential Angle | 15 ° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 250mA | |
| Maximum AC Voltage | 60V ac | |
| Maximum DC Voltage | 60V dc | |
| Contact Resistance | 100Ω | |
| Minimum Operating Temperature | -37°C | |
| Maximum Operating Temperature | 100°C | |
| Series | CW1 | |
| Width | 0.272in | |
| Standards/Approvals | RoHS | |
| Length | 22.23mm | |
| Diameter | 12mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Product Type Tilt Switch | ||
Differential Angle 15 ° | ||
Mounting Orientation Horizontal | ||
Maximum Current 250mA | ||
Maximum AC Voltage 60V ac | ||
Maximum DC Voltage 60V dc | ||
Contact Resistance 100Ω | ||
Minimum Operating Temperature -37°C | ||
Maximum Operating Temperature 100°C | ||
Series CW1 | ||
Width 0.272in | ||
Standards/Approvals RoHS | ||
Length 22.23mm | ||
Diameter 12mm | ||
- COO (Country of Origin):
- US
Tilt Switch / Motion Sensor - 1 Pin
Motion sensors are very similar in design to tilt switches and some tilt switches are used as motion sensors. Motion sensors will be in one condition (open or closed) at rest. When the sensor is subjected to motion it will continually change state as long as it remains in motion.
Resistant to ambient environmental conditions
Housing material: tin plated
Hermetically sealed and inert gas filled
