Siemens 800A Tag Fuse 165 x 75 mm 1.25kV
- RS Stock No.:
- 300-040
- Mfr. Part No.:
- 3NB2345-4KK16
- Brand:
- Siemens
Subtotal (1 unit)*
£3,054.81
(exc. VAT)
£3,665.77
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,054.81 |
*price indicative
- RS Stock No.:
- 300-040
- Mfr. Part No.:
- 3NB2345-4KK16
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 800A | |
| Product Type | Tag Fuse | |
| Fuse Size | 165 x 75 mm | |
| Voltage | 1.25kV | |
| Standards/Approvals | UR, CE, EAC, UKCA | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Length | 132.5mm | |
| Overall Length | 220.4mm | |
| Width | 165mm | |
| Height | 75mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 800A | ||
Product Type Tag Fuse | ||
Fuse Size 165 x 75 mm | ||
Voltage 1.25kV | ||
Standards/Approvals UR, CE, EAC, UKCA | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Length 132.5mm | ||
Overall Length 220.4mm | ||
Width 165mm | ||
Height 75mm | ||
- COO (Country of Origin):
- GR

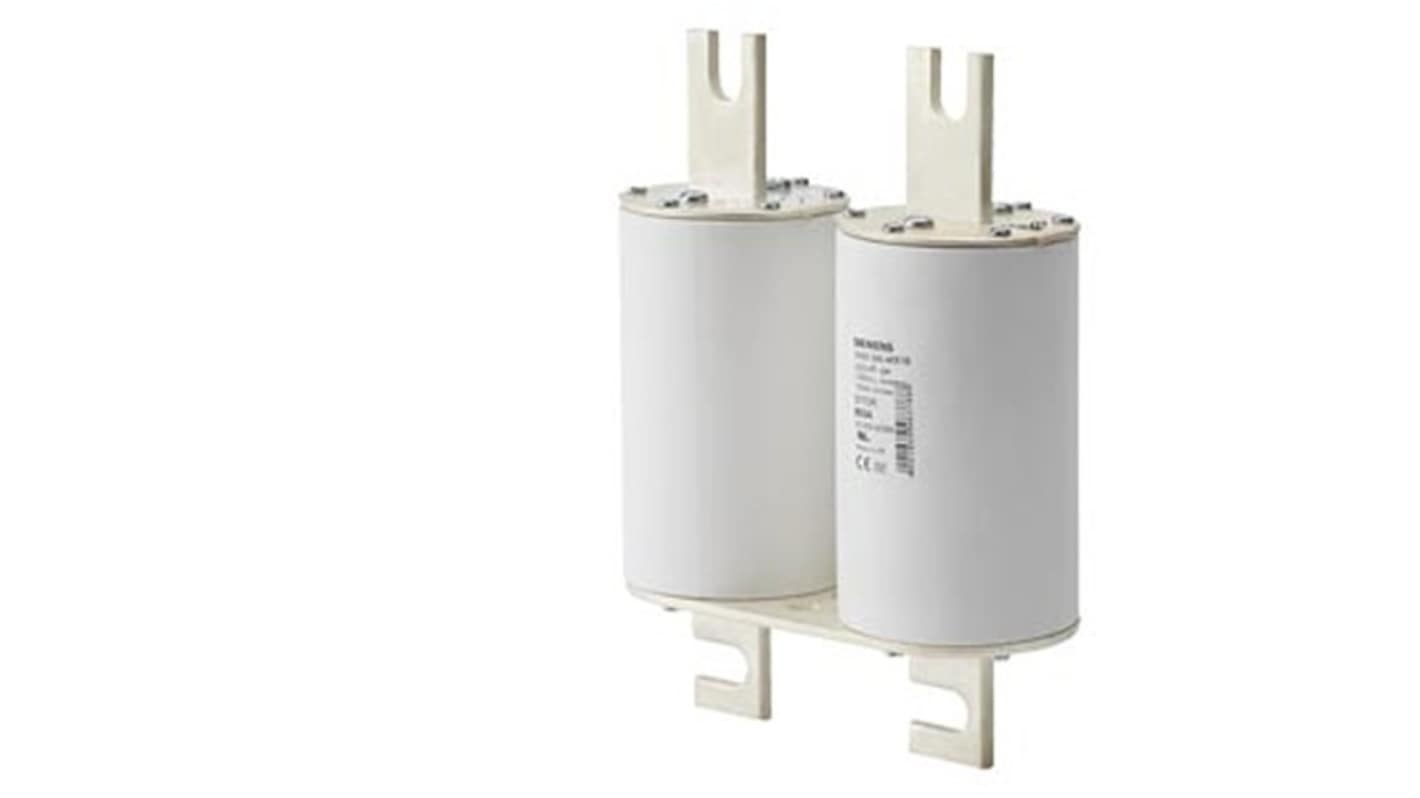

The Siemens Fuse with slotted blade contacts, suitable for NH2L size applications. It has a current rating of 800 A, voltage rating of 1250 V DC, operating class aR for short-circuit protection, and includes a front indicator for easy status monitoring.
EAC Certified
