TE Connectivity CGS SM 110 kΩ, 0603 Metal Film Surface Mount Fixed Resistor 5 % Surface 5 W - 5-1879234-7
- RS Stock No.:
- 505-822
- Mfr. Part No.:
- 5-1879234-7
- Brand:
- TE Connectivity
Subtotal (1 reel of 500 units)*
£376.00
(exc. VAT)
£451.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.752 | £376.00 |
*price indicative
- RS Stock No.:
- 505-822
- Mfr. Part No.:
- 5-1879234-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Surface Mount Fixed Resistor | |
| Resistance | 110kΩ | |
| Resistor Type | Power | |
| Technology | Metal Film | |
| Package/Case | 0603 | |
| Tolerance | 5 % | |
| Packaging | Tape & Reel | |
| Power Rating | 5W | |
| Voltage | 50 V | |
| Mount Type | Surface | |
| Temperature Coefficient | ±100 ppm/°C | |
| Automotive Standard | No | |
| Series | CGS SM | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Height | 6.8mm | |
| Length | 13.5mm | |
| Width | 7.3 mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Surface Mount Fixed Resistor | ||
Resistance 110kΩ | ||
Resistor Type Power | ||
Technology Metal Film | ||
Package/Case 0603 | ||
Tolerance 5 % | ||
Packaging Tape & Reel | ||
Power Rating 5W | ||
Voltage 50 V | ||
Mount Type Surface | ||
Temperature Coefficient ±100 ppm/°C | ||
Automotive Standard No | ||
Series CGS SM | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Height 6.8mm | ||
Length 13.5mm | ||
Width 7.3 mm | ||
- COO (Country of Origin):
- TW

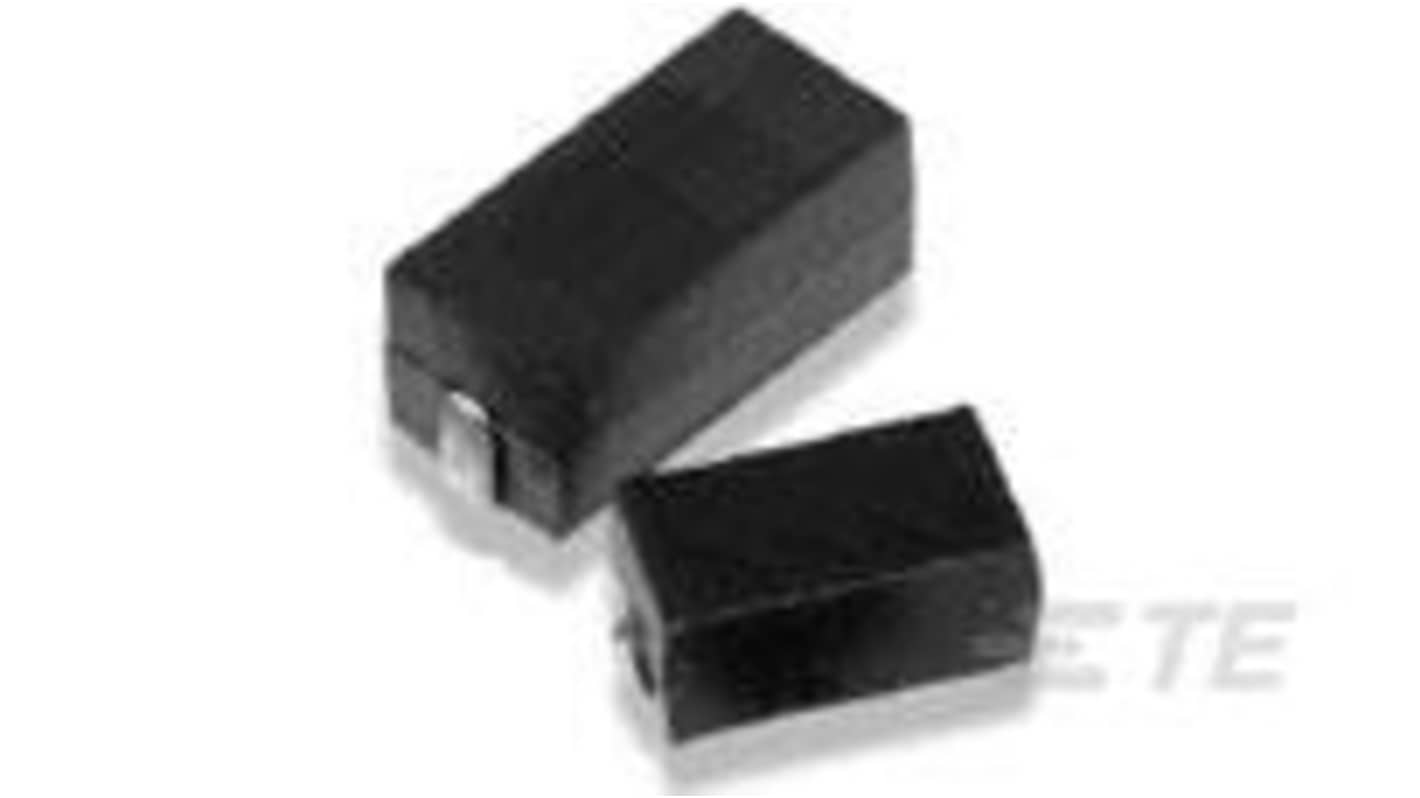

The TE Connectivity Surface mount power resistor, designed to deliver reliable performance in demanding electronic applications. This metal film component embodies precision with a power rating of 5 watts and a resistance value of 110K ohms, ensuring stability across a range of conditions. The resistor’s compact design, with a height of just 6.8 mm, makes it perfect for space-constrained environments. Enhanced with a temperature coefficient of ±100 ppm/°C, it offers excellent temperature stability, minimising drift during operation. Ideal for a variety of passive electronic applications, this product combines exceptional quality with cutting-edge manufacturing techniques for unparalleled durability and reliability.
Advanced metal film construction for improved accuracy
Designed for surface mount technology, enhancing placement efficiency
Solder termination simplifies integration into circuit boards
Complies with stringent EU RoHS and REACH regulations
Low halogen content contributes to environmentally friendly practices
Taped and reeled packaging facilitates automated assembly
