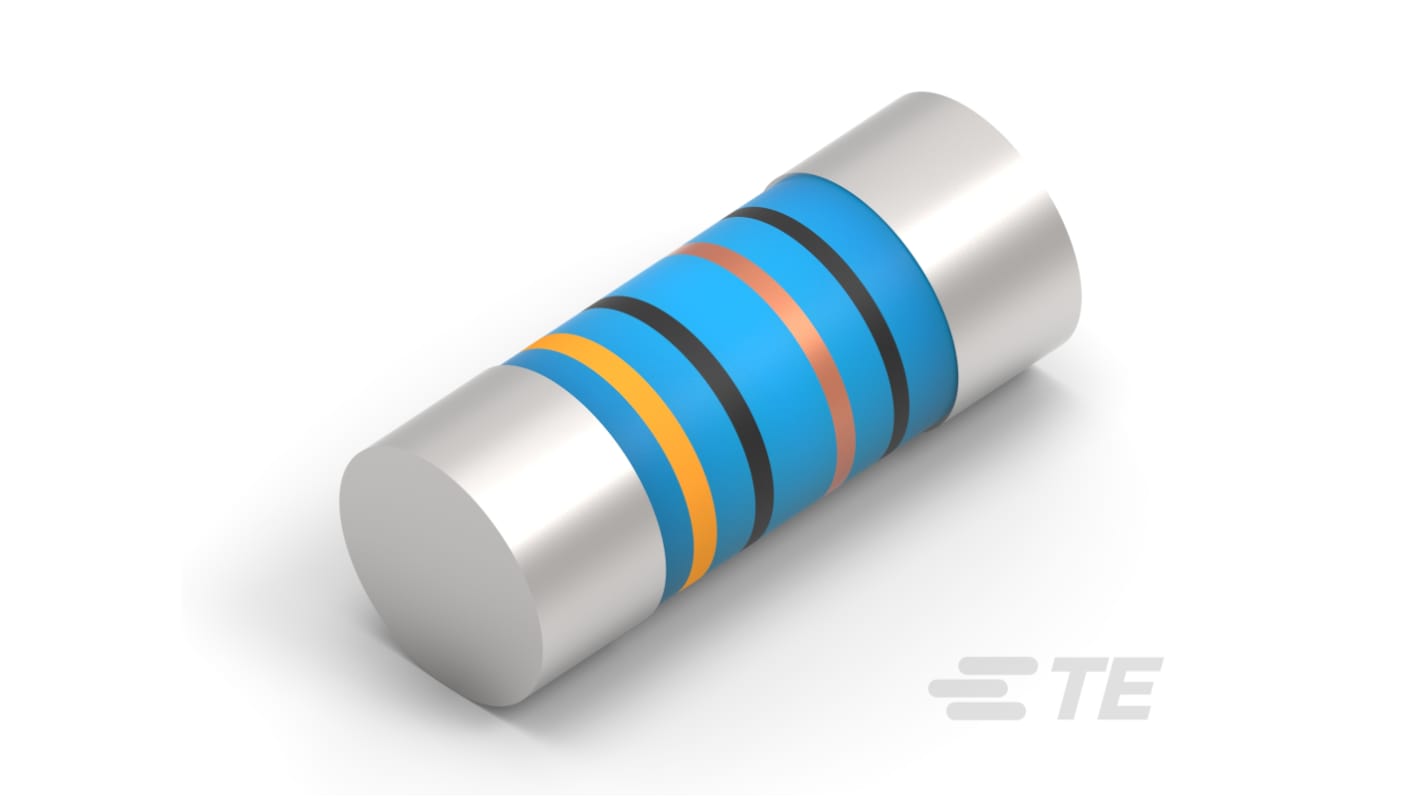

TE Connectivity Neohm SMA-A 820 Ω, 0207 Thin Film Resistor 0.1 % Surface 1 W - 1-2176316-2
- RS Stock No.:
- 477-099
- Distrelec Article No.:
- 304-58-938
- Mfr. Part No.:
- 1-2176316-2
- Brand:
- TE Connectivity
Subtotal (1 reel of 2000 units)*
£1,322.00
(exc. VAT)
£1,586.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.661 | £1,322.00 |
*price indicative
- RS Stock No.:
- 477-099
- Distrelec Article No.:
- 304-58-938
- Mfr. Part No.:
- 1-2176316-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 820Ω | |
| Product Type | Resistor | |
| Technology | Thin Film | |
| Resistor Type | Precision | |
| Package/Case | 0207 | |
| Packaging | Tape & Reel | |
| Tolerance | 0.1 % | |
| Power Rating | 1W | |
| Temperature Coefficient | ±15 ppm/°C | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Series | Neohm SMA-A | |
| Maximum Operating Temperature | 155°C | |
| Termination Style | Melf 0207 | |
| Width | 2.2mm | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Length | 5.9mm | |
| Height | 2.2mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 820Ω | ||
Product Type Resistor | ||
Technology Thin Film | ||
Resistor Type Precision | ||
Package/Case 0207 | ||
Packaging Tape & Reel | ||
Tolerance 0.1 % | ||
Power Rating 1W | ||
Temperature Coefficient ±15 ppm/°C | ||
Mount Type Surface | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Series Neohm SMA-A | ||
Maximum Operating Temperature 155°C | ||
Termination Style Melf 0207 | ||
Width 2.2mm | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Length 5.9mm | ||
Height 2.2mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity surface mount precision resistor redefines reliability and performance in electronic applications. Designed with a thin film element type, it boasts an impressive 820-ohm resistance value, making it an essential component for circuits requiring refined precision. Each resistor is housed within a compact 0207 package, ensuring adaptability in various designs while maintaining space efficiency. With a power rating of 1W, this resistor is engineered to perform optimally even under rigorous operating conditions, such as in temperature ranges from -55 to 155 °C. Compliance with EU RoHS and ELV directives indicates its environmentally friendly design, whilst the low halogen content assures safe usage across diverse applications. Discover unparalleled performance with this precision resistor, which is perfect for both professional and hobbyist electronics needs.
Delivers superior precision for critical circuit applications
Compact form factor allows for efficient use of space on PCBs
Operating temperature range supports a vast array of environments
Compliant with environmental regulations, ensuring safety and sustainability
Low halogen content contributes to a safer electronic design
