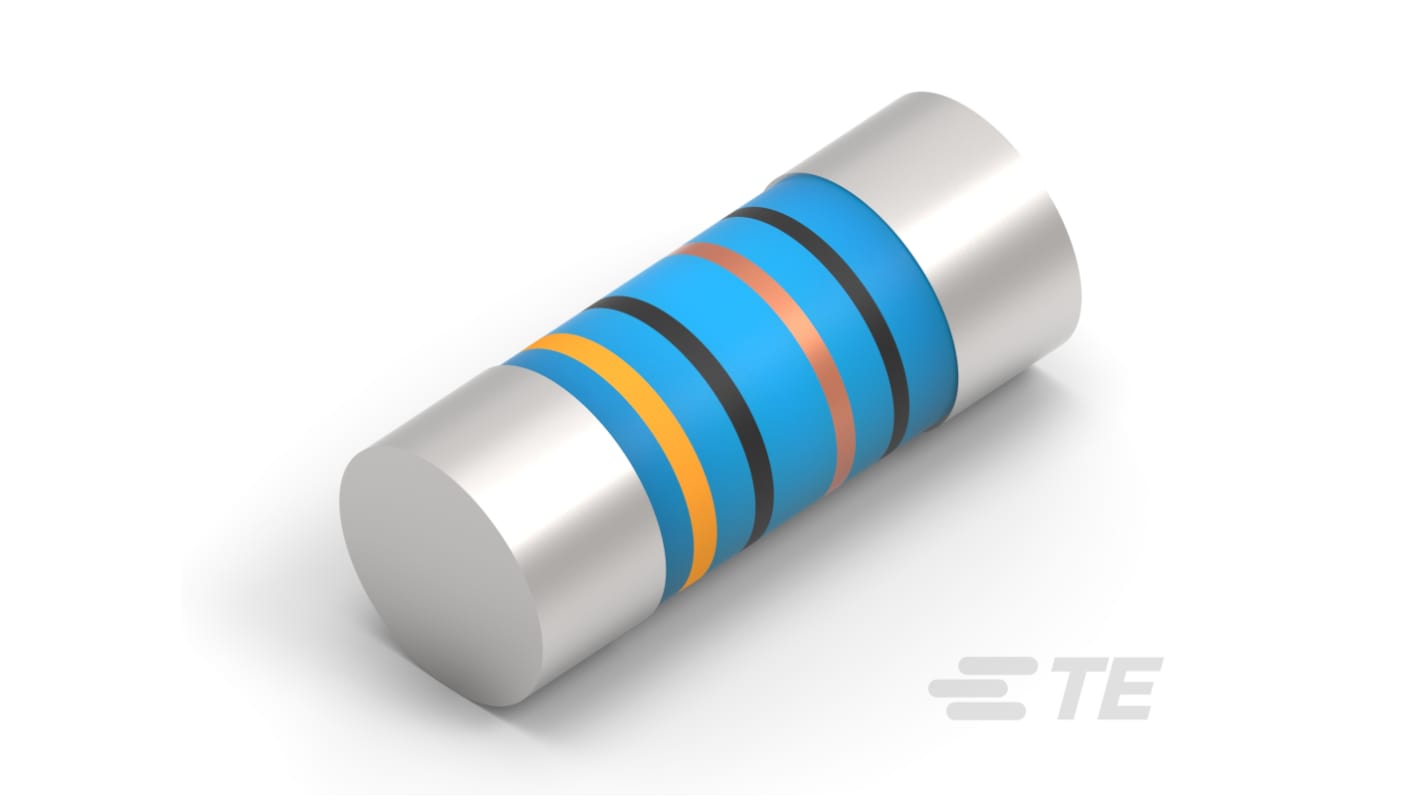

TE Connectivity Neohm SMA-A 39 kΩ, 0204 Thin Film Surface Mount Resistor 0.1 % Surface 0.4 W - 3-2176315-2
- RS Stock No.:
- 474-317
- Distrelec Article No.:
- 304-60-563
- Mfr. Part No.:
- 3-2176315-2
- Brand:
- TE Connectivity
Subtotal (1 reel of 3000 units)*
£756.00
(exc. VAT)
£906.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.252 | £756.00 |
*price indicative
- RS Stock No.:
- 474-317
- Distrelec Article No.:
- 304-60-563
- Mfr. Part No.:
- 3-2176315-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Surface Mount Resistor | |
| Resistance | 39kΩ | |
| Technology | Thin Film | |
| Resistor Type | Precision | |
| Package/Case | 0204 | |
| Packaging | Tape & Reel | |
| Tolerance | 0.1 % | |
| Power Rating | 0.4W | |
| Voltage | 20V | |
| Mount Type | Surface | |
| Temperature Coefficient | ±15 ppm/°C | |
| Automotive Standard | No | |
| Series | Neohm SMA-A | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 155°C | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Height | 1.4mm | |
| Length | 3.5mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Surface Mount Resistor | ||
Resistance 39kΩ | ||
Technology Thin Film | ||
Resistor Type Precision | ||
Package/Case 0204 | ||
Packaging Tape & Reel | ||
Tolerance 0.1 % | ||
Power Rating 0.4W | ||
Voltage 20V | ||
Mount Type Surface | ||
Temperature Coefficient ±15 ppm/°C | ||
Automotive Standard No | ||
Series Neohm SMA-A | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 155°C | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Height 1.4mm | ||
Length 3.5mm | ||
- COO (Country of Origin):
- US
The TE Connectivity Surface Mount Resistor designed for superior performance in surface mount applications. This thin film resistor, housed in a compact 0204 package size, ensures reliable operation with low tolerance and a commendable power rating of .4 W. Engineered with advanced materials, it boasts a temperature coefficient of ±15 ppm/°C, making it an exemplary choice for high precision circuits where stability and accuracy are paramount. Its unique Metal Electrode Leadless Face (MELF) design not only enhances thermal efficiency but also ensures consistent functionality across a wide operating temperature range of -55 to 155 °C. This component is ideal for engineers seeking robust solutions that blend high performance with functional versatility.
Thin film element technology delivers unparalleled precision
Compact design optimises space in modern electronic assemblies
Low temperature coefficient enhances the reliability in varying thermal conditions
Metal Electrode Leadless Face configuration ensures optimal soldering capabilities
Designed for easy integration into automotive and industrial applications
Compliance with stringent regulations ensures environmental safety
Taped and reeled packaging simplifies the assembly process
