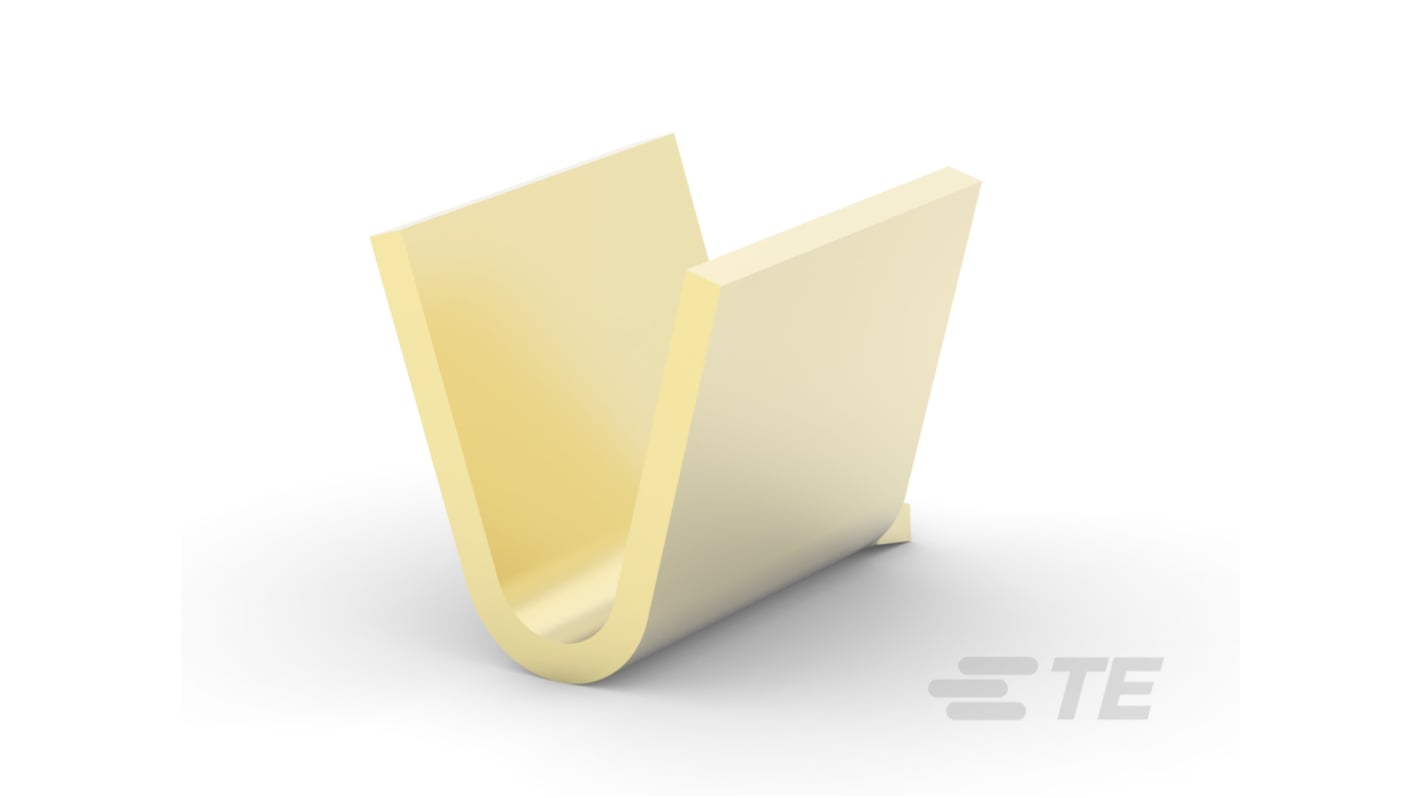

TE Connectivity, AMPLIVAR Open Barrel Splice Connector, Uninsulated, Unplated 12 AWG
- RS Stock No.:
- 479-751
- Distrelec Article No.:
- 304-61-646
- Mfr. Part No.:
- 42779-1
- Brand:
- TE Connectivity
Subtotal (1 pack of 20000 units)*
£908.48
(exc. VAT)
£1,090.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £908.48 | £0.045 |
*price indicative
- RS Stock No.:
- 479-751
- Distrelec Article No.:
- 304-61-646
- Mfr. Part No.:
- 42779-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Splice Type | Open Barrel | |
| Product Type | Splice Connector | |
| Overall Length | 5.72mm | |
| Minimum Wire Size AWG | 15.5 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Insulation | Uninsulated | |
| Contact Length | 5.72mm | |
| Series | AMPLIVAR | |
| Contact Material | Brass | |
| Contact Plating | Unplated | |
| Termination Type | Crimp | |
| Thickness | 0.51mm | |
| Standards/Approvals | 2016 No Restricted Materials Above Threshold, EU RoHS 2011/65/EU, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Splice Type Open Barrel | ||
Product Type Splice Connector | ||
Overall Length 5.72mm | ||
Minimum Wire Size AWG 15.5 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Insulation Uninsulated | ||
Contact Length 5.72mm | ||
Series AMPLIVAR | ||
Contact Material Brass | ||
Contact Plating Unplated | ||
Termination Type Crimp | ||
Thickness 0.51mm | ||
Standards/Approvals 2016 No Restricted Materials Above Threshold, EU RoHS 2011/65/EU, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC | ||
- COO (Country of Origin):
- US
The TE Connectivity Through splice is expertly designed for specific wire sizes ranging from 15.5 to 12 AWG, making it a reliable choice for diverse applications. Its serrated design enhances grip and ensures secure connections, accommodating a splice capacity of three. Made from high-quality brass, this component not only provides excellent electrical conductivity but also maintains a compact profile with a length of 5.72 mm. Ideal for scenarios requiring resilient connections, the splice supports operating temperatures from -65°C to 150°C and boasts a voltage rating of 250V. Whether employed in industrial settings or wiring projects, this product stands out for its robustness and adaptability, embodying the quality and innovation expected from TE connectivity.
Designed for a variety of wire sizes, ensuring compatibility across multiple projects
Serrated surface enhances electrical contact, maximising performance
Constructed from durable brass for superior conductivity and longevity
Compact length allows for easy installation in tight spaces
Able to operate effectively under a wide temperature range
Non-sealable design simplifies assembly processes
Backed by comprehensive compliance with industry standards
