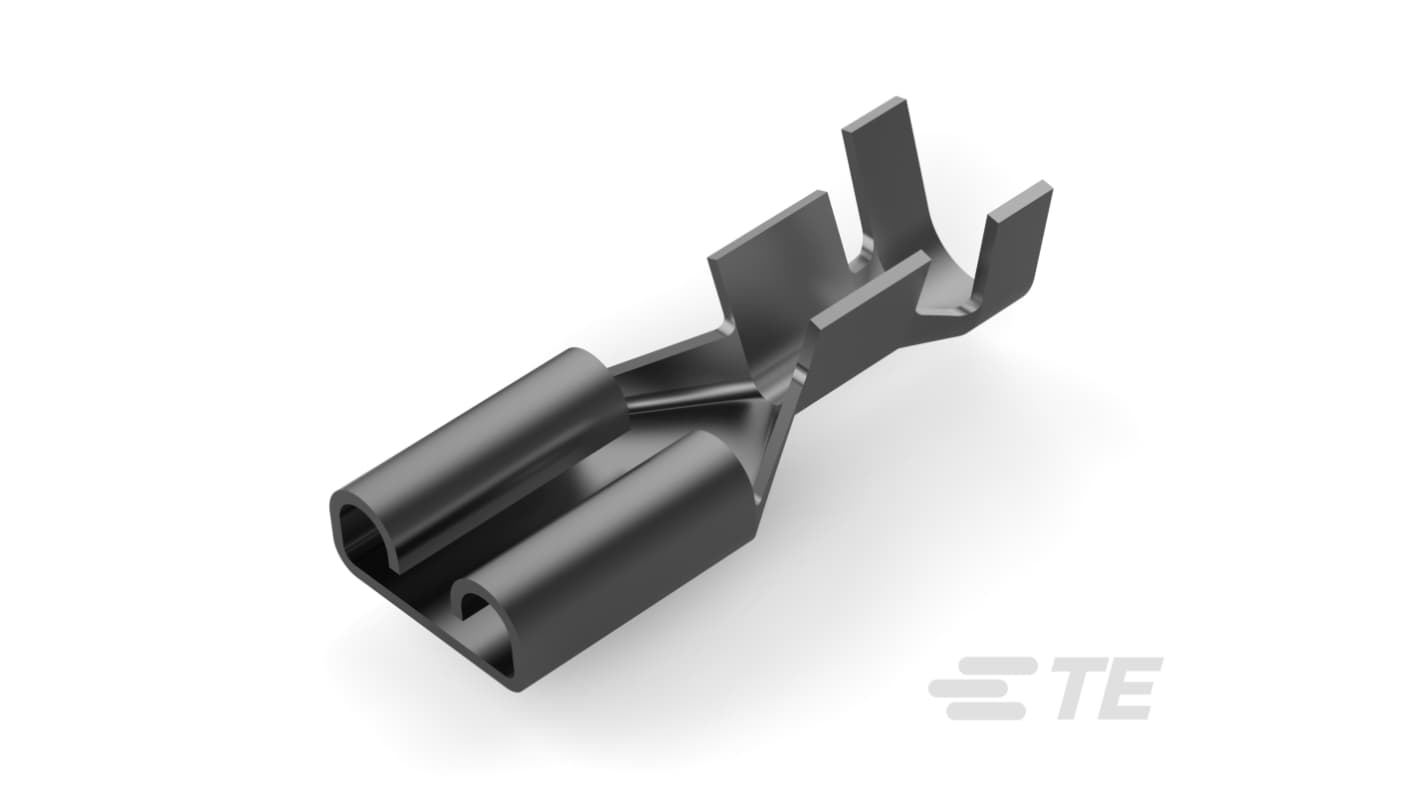

TE Connectivity, FASTON .250 Receptacle Splice Connector, Insulated, Tin 13 AWG
- RS Stock No.:
- 469-233
- Distrelec Article No.:
- 304-48-890
- Mfr. Part No.:
- 5-160447-2
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 469-233
- Distrelec Article No.:
- 304-48-890
- Mfr. Part No.:
- 5-160447-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Splice Connector | |
| Splice Type | Receptacle | |
| Overall Length | 20.3mm | |
| Diameter | 3.5mm | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 13AWG | |
| Insulation | Insulated | |
| Series | FASTON .250 | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Termination Type | Crimp | |
| Thickness | 41mm | |
| Standards/Approvals | EU ELV Directive 2000/53/EC, 2016, DIN 46340 Part 3 DIN, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU, UL 94V-2 UL | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Splice Connector | ||
Splice Type Receptacle | ||
Overall Length 20.3mm | ||
Diameter 3.5mm | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 13AWG | ||
Insulation Insulated | ||
Series FASTON .250 | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Termination Type Crimp | ||
Thickness 41mm | ||
Standards/Approvals EU ELV Directive 2000/53/EC, 2016, DIN 46340 Part 3 DIN, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU, UL 94V-2 UL | ||
- COO (Country of Origin):
- IT
The TE Connectivity Quick disconnect receptacle is designed for reliability and efficiency in electrical connections. This innovative component is perfect for applications requiring robust wire sizes ranging from 17 to 13 AWG, ensuring a secure connection for various tasks. Its straight orientation and compatible design with conventional terminals offer ease of use and excellent performance. Ideal for both commercial and industrial applications, this receptacle boasts a compact design while maintaining exceptional durability and insulation requirements suited for harsh operating environments. The fastin-faston 250 is an essential choice for professionals seeking a dependable wire connection solution that meets industry standards for quality and performance. With the capability to accommodate a broad wire insulation diameter range, this receptacle ensures versatile connectivity for various projects.
Provides a secure quick disconnect mechanism for easy wire connection and disconnection
Constructed from phosphor bronze for enhanced conductivity and reduced resistance
Features a low halogen content, making it environmentally friendly
Exhibits a wide operating temperature range to suit various applications
Incorporates a locking lance for reliable mating retention during operation
Supports single connection capacity, ensuring simplicity in wiring installations
Designed to meet rigorous compliance standards for enhanced safety
