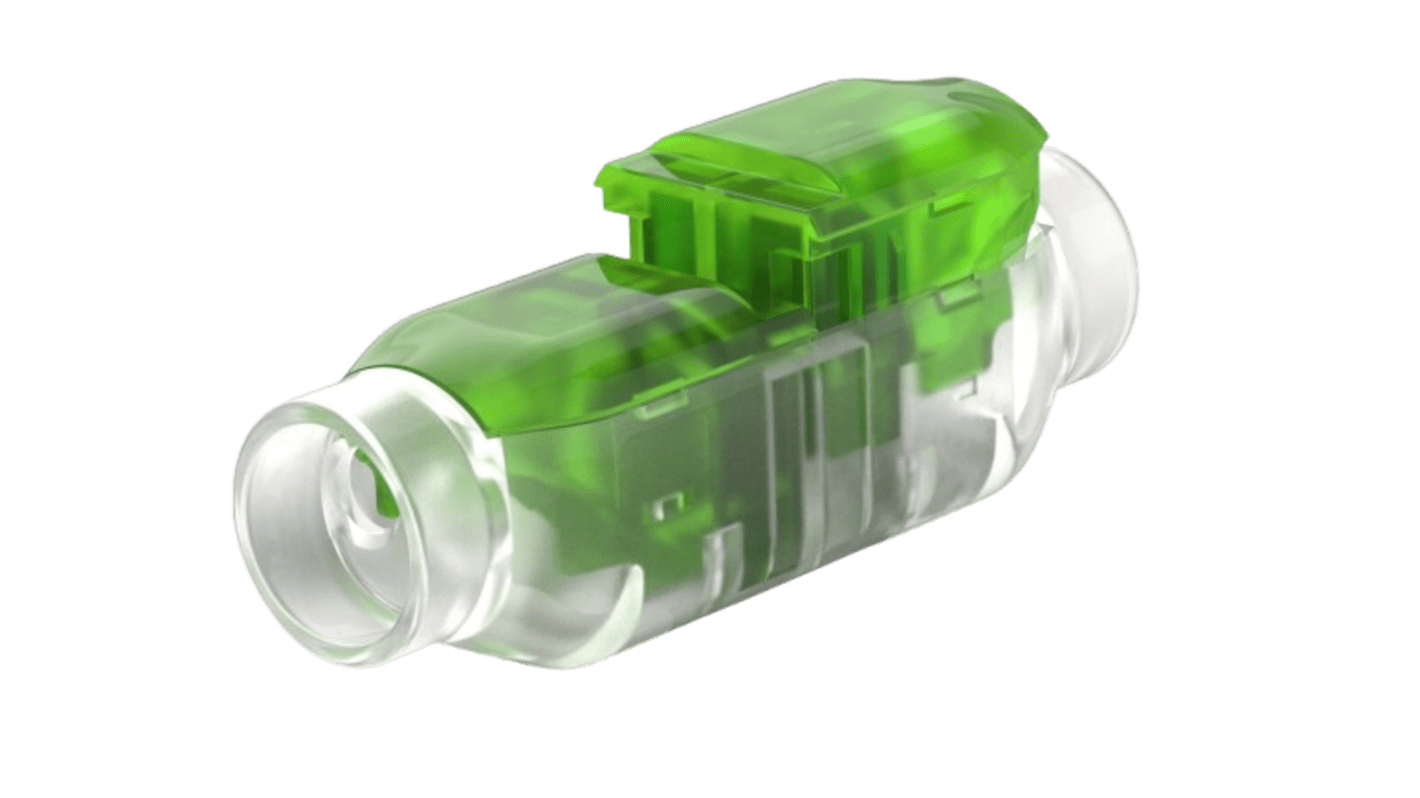

TE Connectivity, 2213 Butt Splice Splice Connector, Green, Insulated, Phosphor Bronze 18 AWG
- RS Stock No.:
- 469-073
- Mfr. Part No.:
- 2213800-1
- Brand:
- TE Connectivity
Subtotal (1 pack of 150 units)*
£181.20
(exc. VAT)
£217.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £181.20 | £1.208 |
*price indicative
- RS Stock No.:
- 469-073
- Mfr. Part No.:
- 2213800-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Splice Type | Butt Splice | |
Wire Size | 18 AWG | |
Overall Length | 36.4mm | |
Diameter | 2.85mm | |
Number of Ways | 2 | |
Maximum Wire Size AWG | 18AWG | |
Insulation | Insulated | |
Colour | Green | |
Series | 2213 | |
Contact Plating | Phosphor Bronze | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Splice Type Butt Splice | ||
Wire Size 18 AWG | ||
Overall Length 36.4mm | ||
Diameter 2.85mm | ||
Number of Ways 2 | ||
Maximum Wire Size AWG 18AWG | ||
Insulation Insulated | ||
Colour Green | ||
Series 2213 | ||
Contact Plating Phosphor Bronze | ||
- COO (Country of Origin):
- CZ
The TE Connectivity Butt splice connector is expertly designed for 18 AWG wire, boasting a .75 mm² capacity and a remarkable four splice capability. Engineered with a reliable end feed design, it incorporates high-quality phosphor bronze material for enhanced conductivity and longevity. Measuring 36.4 mm in length, this connector not only meets stringent industry standards but also provides a fully insulated and robust connection. The connector is compatible with both solid and stranded wire types, making it versatile for various applications. With an operational voltage of 600 V and a current rating of 5 A, this product is suitable for demanding electrical installations. Whether for professional use or DIY projects, this connector ensures a secure, efficient, and durable solution for all your wiring needs.
Offers exceptional conductivity through phosphor bronze construction
Designed for easy and secure wire connections with end feed functionality
Suitable for both solid and stranded wire types, providing versatility
Fully insulated for added safety during operation
Robust build qualifies for compliance with IEC and UL standards
Capable of withstanding extreme temperatures ranging from -40 to 105 °C
Designed for easy and secure wire connections with end feed functionality
Suitable for both solid and stranded wire types, providing versatility
Fully insulated for added safety during operation
Robust build qualifies for compliance with IEC and UL standards
Capable of withstanding extreme temperatures ranging from -40 to 105 °C
