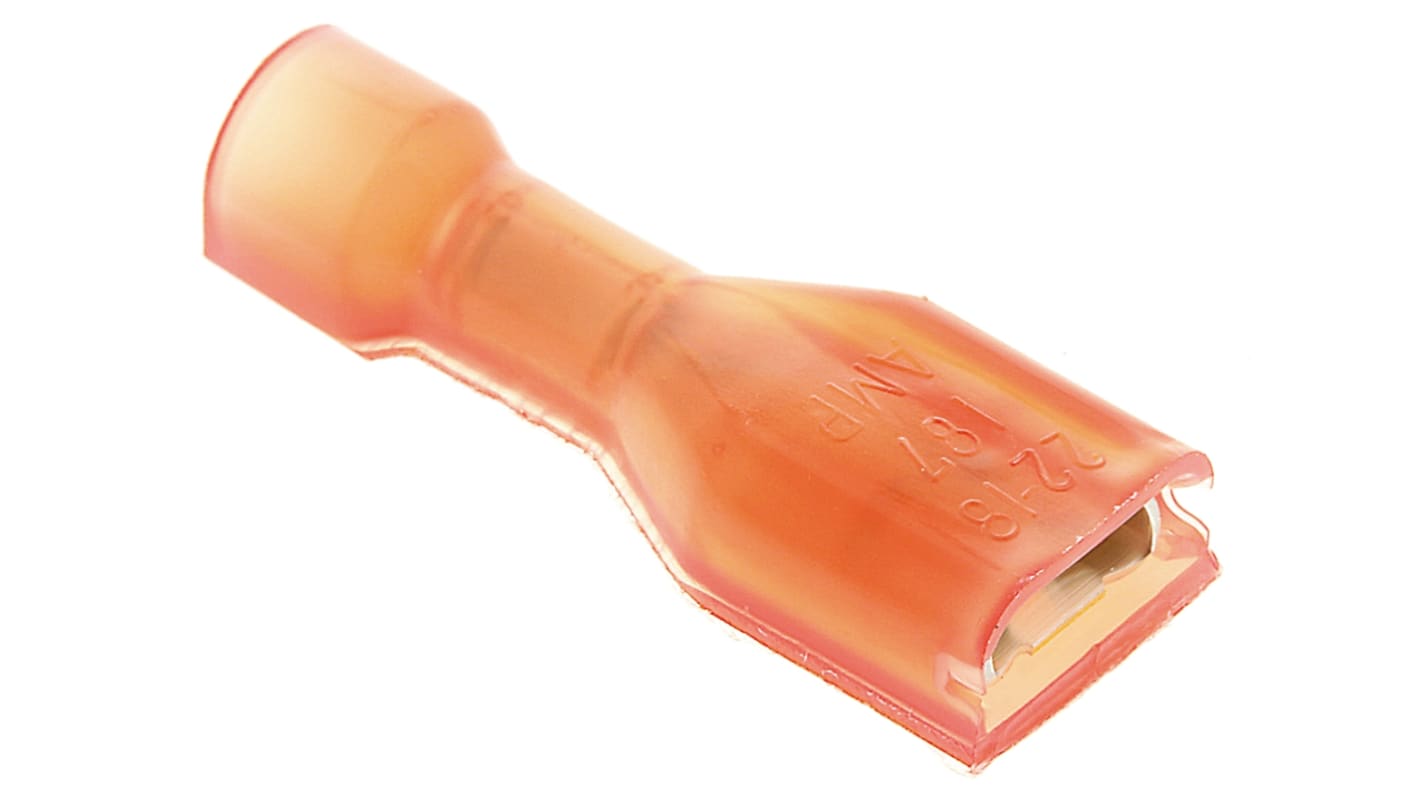

TE Connectivity Ultra-Fast .187 Red Insulated Female Spade Connector, Receptacle, 4.75 x 0.51mm Tab Size, 0.3mm² to
- RS Stock No.:
- 245-5193
- Mfr. Part No.:
- 2-520182-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 50 units)*
£14.00
(exc. VAT)
£17.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7,200 unit(s) ready to ship
- Plus 550 unit(s) ready to ship from another location
- Plus 29,000 unit(s) shipping from 10 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.28 | £14.00 |
| 250 + | £0.219 | £10.95 |
*price indicative
- RS Stock No.:
- 245-5193
- Mfr. Part No.:
- 2-520182-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | Receptacle | |
| Series | Ultra-Fast .187 | |
| Gender | Female | |
| Minimum Wire Size mm² | 0.3mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Tab Size | 4.75 x 0.51mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Colour | Red | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Insulation Material | Nylon 66 | |
| Overall Length | 0.855in | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type Receptacle | ||
Series Ultra-Fast .187 | ||
Gender Female | ||
Minimum Wire Size mm² 0.3mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Tab Size 4.75 x 0.51mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Colour Red | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Insulation Material Nylon 66 | ||
Overall Length 0.855in | ||
