TE Connectivity PIDG Insulated Spade Connector 22 AWG
- RS Stock No.:
- 470-952
- Distrelec Article No.:
- 304-61-274
- Mfr. Part No.:
- 2-32498-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 5000 units)*
£6,524.62
(exc. VAT)
£7,829.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 August 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £6,524.62 | £1.305 |
*price indicative
- RS Stock No.:
- 470-952
- Distrelec Article No.:
- 304-61-274
- Mfr. Part No.:
- 2-32498-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Spade Connector | |
| Tab Thickness | 0.79mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Plating | Tin Plated | |
| Standards/Approvals | EU REACH (EC) No. 1907/2006, 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Overall Length | 21.08mm | |
| Series | PIDG | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Spade Connector | ||
Tab Thickness 0.79mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 22AWG | ||
Contact Plating Tin Plated | ||
Standards/Approvals EU REACH (EC) No. 1907/2006, 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Overall Length 21.08mm | ||
Series PIDG | ||
- COO (Country of Origin):
- US

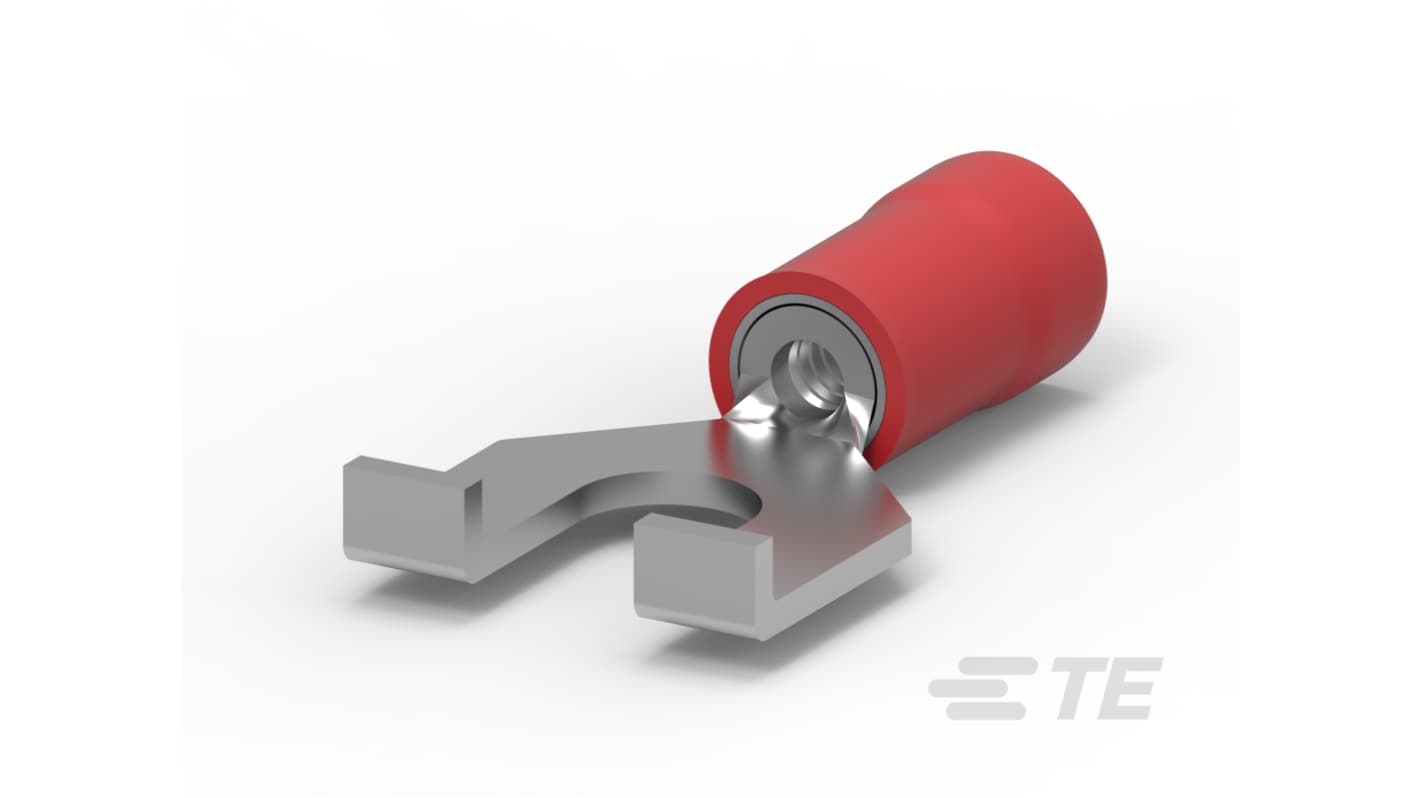

The TE Connectivity spade flange tongue terminal is engineered for optimal performance in electrical connections. Designed for 22 AWG wire, it ensures a secure fit with #8 and M4 studs, featuring a closed barrel structure for reliable usage. The terminal boasts a flanged design that adds an extra layer of security by preventing slippage, while its tin plating enhances durability and conductivity. With partial insulation, it strikes the perfect balance between protection and functionality, making it an ideal choice for various wiring applications. This terminal allows for easy handling and installation, streamlining your connectivity needs whether in automotive, industrial, or domestic environments. The product's compatibility with a range of wire sizes makes it versatile, while the careful consideration of compliance standards guarantees a trustworthy solution for your projects.
Constructed with a closed barrel for enhanced strength and reliability
Flanged design offers superior grip to prevent accidental disconnection
Tin plating ensures excellent electrical conductivity and corrosion resistance
Partially insulated for increased safety without compromising functionality
