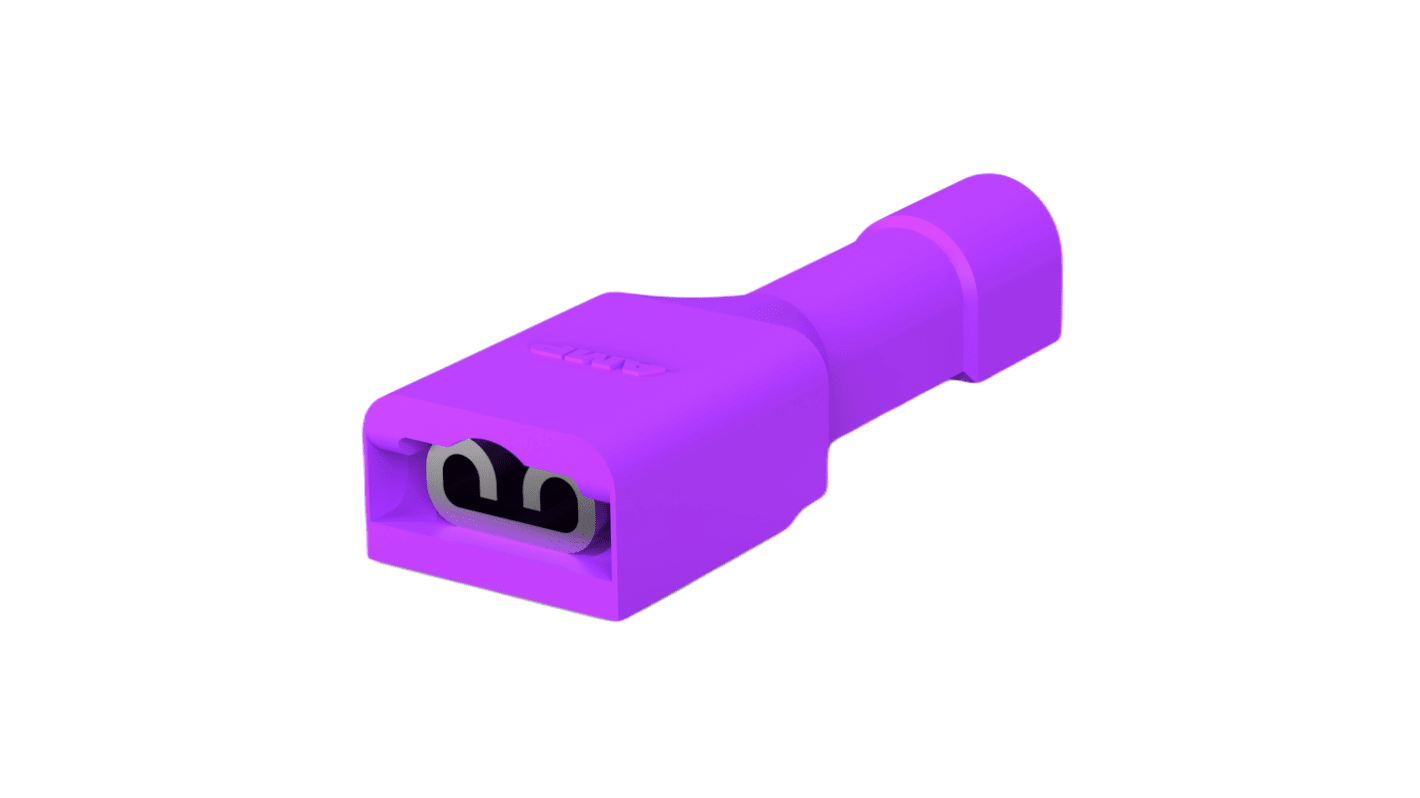

TE Connectivity Ultra-Fast 110 Purple Insulated Spade Connector, Quick Disconnect Receptacle, 2.8 → 3.18mm Tab
- RS Stock No.:
- 302-568
- Mfr. Part No.:
- 7-520366-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£0.19
(exc. VAT)
£0.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £0.19 |
10 + | £0.18 |
*price indicative
- RS Stock No.:
- 302-568
- Mfr. Part No.:
- 7-520366-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Spade Connector Type | Receptacle | |
Type | Quick Disconnect Receptacle | |
Series | Ultra-Fast 110 | |
Tab Thickness | 0.51mm | |
Tab Width | 2.8 → 3.18mm | |
Tab Size | 2.8 → 3.18mm | |
Insulation | Insulated | |
Minimum Wire Size AWG | 26AWG | |
Maximum Wire Size AWG | 22AWG | |
Colour | Purple | |
Termination Method | Crimp | |
Contact Material | Brass | |
Contact Plating | Tin | |
Wire Size | 26 → 22 AWG | |
Orientation | Straight | |
Insulation Material | Nylon | |
Overall Length | 18.7mm | |
Shrouded/Unshrouded | Unshrouded | |
Series Number | 7-520366-2 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Spade Connector Type Receptacle | ||
Type Quick Disconnect Receptacle | ||
Series Ultra-Fast 110 | ||
Tab Thickness 0.51mm | ||
Tab Width 2.8 → 3.18mm | ||
Tab Size 2.8 → 3.18mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 22AWG | ||
Colour Purple | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 26 → 22 AWG | ||
Orientation Straight | ||
Insulation Material Nylon | ||
Overall Length 18.7mm | ||
Shrouded/Unshrouded Unshrouded | ||
Series Number 7-520366-2 | ||
- COO (Country of Origin):
- DE
The TE Connectivity Quick Disconnect Receptacle supports 26 to 22 AWG or 0.13 to 0.2 mm² wire, with 254 to 404 CMA and 2.8 mm / 3.18 mm tab width. It features a straight design and is part of the Ultra-Fast 110 series. The terminal is compatible with UL standards, with a UL 94V-2 flammability rating. It terminates to wire and cable, is compatible with discrete wire, and has a single connection capacity.
600 V voltage rating
Nylon insulation
RoHS compliant
Nylon insulation
RoHS compliant
