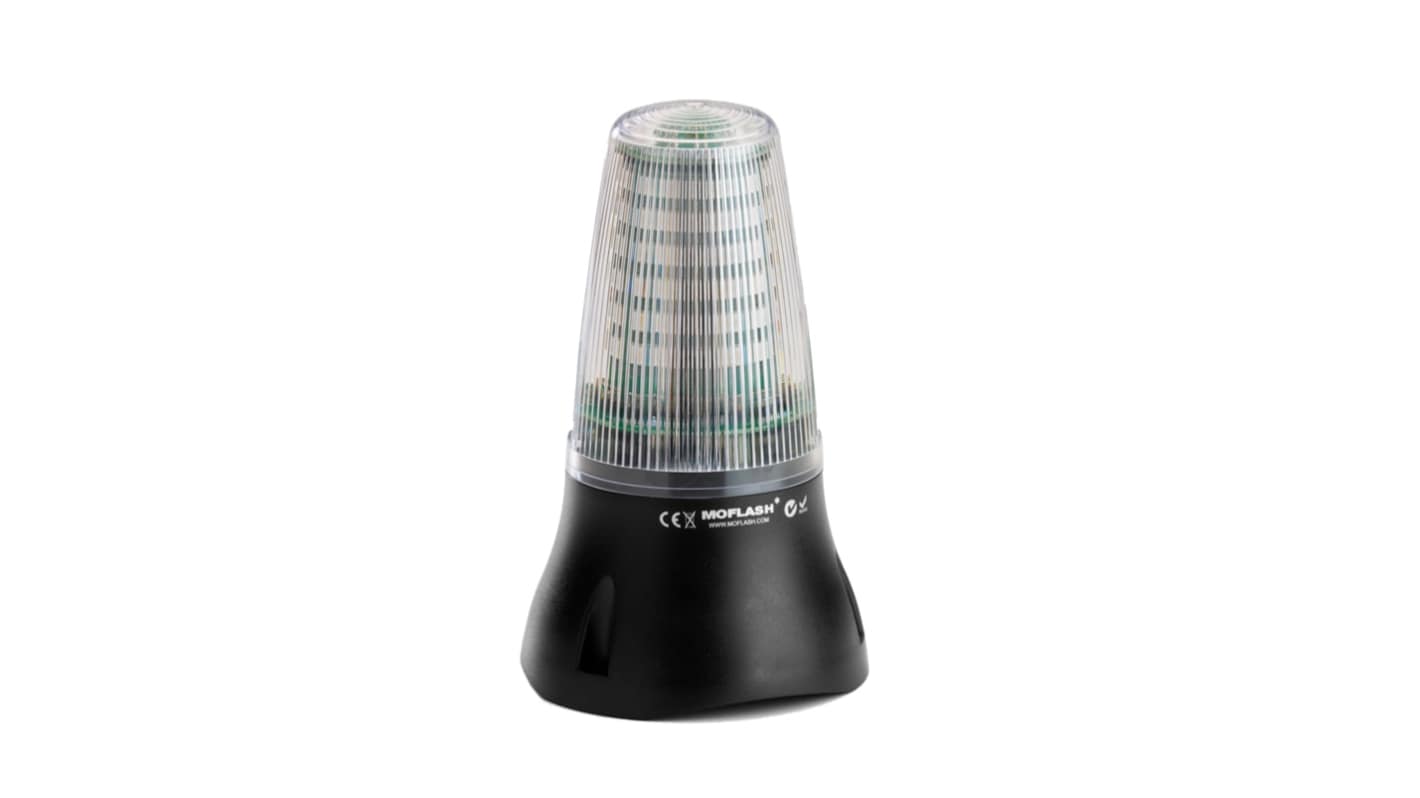

Moflash White Beacon-Buzzer Combination, IP67 230V Base 90 dB @ 1m

RS Stock No.:: 755-9622
Mfr. Part No.:: LEDA125-04-05
Brand:: Moflash

Moflash White Beacon-Buzzer Combination, IP67 230V Base 90 dB @ 1m

Subtotal (1 unit)*

£139.70

(exc. VAT)

£167.64

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 2 unit(s) shipping from 22 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£139.70

*price indicative

RS Stock No.:: 755-9622
Mfr. Part No.:: LEDA125-04-05
Brand:: Moflash

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Moflash
	Product Type	Beacon-Buzzer Combination
	Lens Colour	White
	Current Type	AC
	Light Effect	Steady, Flashing
	Sounder Type	Buzzer
	Current Consumption	40mA
	Mount Type	Base
	Bulb Type	LED
	Maximum Supply Voltage	230V
	Sound Level at 1m	90dB
	Housing Colour	Black
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	45°C
	Maximum Sound Level	90dB
	IP Rating	IP67
	Number of Tones	2
	Hazardous Area Certification	IECEx, ATEX
	Housing Material	Polyester
	Standards/Approvals	EN60947-5-5, ISO13849-1, EN60947-5-1, ISO13850

	Select all
	Brand Moflash
	Product Type Beacon-Buzzer Combination
	Lens Colour White
	Current Type AC
	Light Effect Steady, Flashing
	Sounder Type Buzzer
	Current Consumption 40mA
	Mount Type Base
	Bulb Type LED
	Maximum Supply Voltage 230V
	Sound Level at 1m 90dB
	Housing Colour Black
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 45°C
	Maximum Sound Level 90dB
	IP Rating IP67
	Number of Tones 2
	Hazardous Area Certification IECEx, ATEX
	Housing Material Polyester
	Standards/Approvals EN60947-5-5, ISO13849-1, EN60947-5-1, ISO13850

COO (Country of Origin):: GB

Moflash Beacon-Buzzer Combination, Multiple Light Effects, 90dB Sound Output - LEDA125 Series - LEDA125-04-05

This buzzer beacon from Moflash combines a clear LED with a piezo buzzer for reliable visual and audible signalling in your industrial workplace. It has two different buzzer tones and a choice of steady or flashing light effects, so you can choose the most appropriate combination for your application. Thanks to its wide operating temperature range of -20°C to +55°C, it's suitable for use in harsh industrial environments.

Features & Benefits

• Light output of 360° around the vertical axis for high visibility

• IP65 rating means it's dust-tight and resistant to low-pressure water jets

• Low current consumption of 40mA for energy-efficient operation

Applications

• Doors and gates

• Automated machines

• Control systems

• Industrial vehicles

How loud is this buzzer beacon?

The unit produces a loud sound output of 90dB at 1m, so it's easy to hear in noisy industrial environments.

Compact LED Beacon / Buzzer Combination

The LEDA 125 Beacon / buzzer combination provides an audible and visual signal which is suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The base of the beacon / buzzer houses two Piezo sounders that are synchronised to the light mode. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

Two signals in one

100000 hours life for LED

Continuously rated

48 LED array ultra bright

360° visibility

Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)

3 point fixing

UV stable polycarbonate lens and ABS base

IP65 protection

RoHS compliant

CE marking

LED/Buzzer

Note

Piezos cannot be controlled independently from the light.
