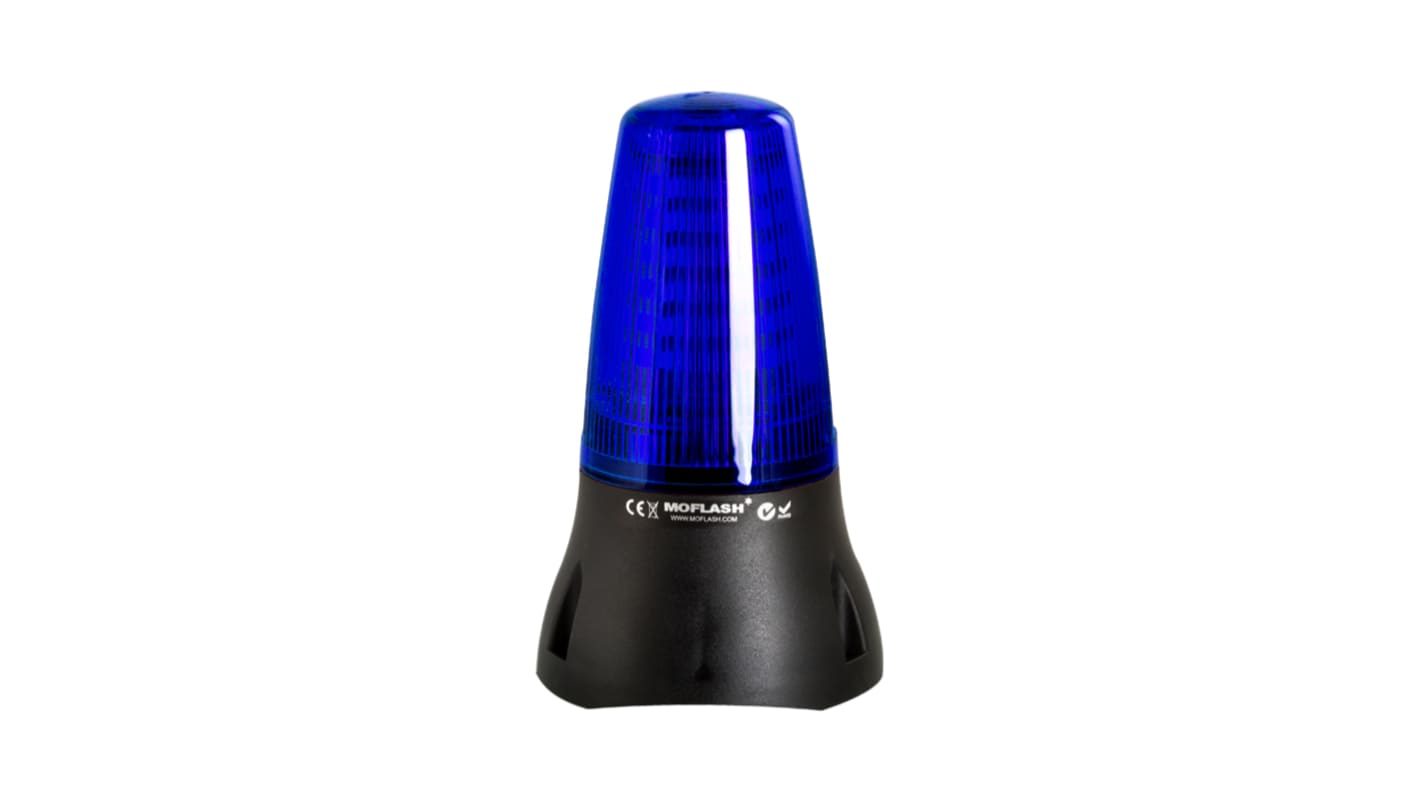

Moflash LEDA125 Series Blue Buzzer Beacon, 230 V ac, IP65, Base Mount, 90dB at 1 Metre

RS Stock No.:: 755-9619
Mfr. Part No.:: LEDA125-04-03
Brand:: Moflash

Moflash LEDA125 Series Blue Buzzer Beacon, 230 V ac, IP65, Base Mount, 90dB at 1 Metre

Subtotal (1 unit)**

£127.00

(exc. VAT)

£152.40

(inc. VAT)

5 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£127.00

**price indicative

RS Stock No.:: 755-9619
Mfr. Part No.:: LEDA125-04-03
Brand:: Moflash

Compact LED Beacon / Buzzer Combination

The LEDA 125 Beacon / buzzer combination provides an audible and visual signal which is suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The base of the beacon / buzzer houses two Piezo sounders that are synchronised to the light mode. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

Two signals in one
100000 hours life for LED
Continuously rated
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

Note

Piezos cannot be controlled independently from the light.

Moflash Blue Buzzer Beacon, 230V AC, 90dB - LEDA125 Series - LEDA125-04-03

Help to maintain safety on your automation line with this blue buzzer beacon from Moflash. The unit has an LED (light-emitting diode) that flashes to alert people nearby of a change in machine process control. The beacon also has a built-in buzzer to attract the attention of anyone who may not see the signal. It emits a loud sound of up to 90dB (decibels), so it's easy to hear in large rooms and over the mechanical noises of loud equipment.

Features & Benefits

• Choice between 60FPM (flashes per minute) and a more rapid 120FPM to suit your application
• LED light is energy-efficient for long-lasting use
• Wide operating temperature range of -20°C to +45°C for use in harsh industrial environments

Applications

• Security checks
• Baggage claims
• Factory conveyors
• Machine safety

What is this buzzer beacon made of?

The buzzer beacon's enclosure is constructed from ABS (acrylonitrile butadiene styrene), a tough thermoplastic that's resistant to impact and fire-retardant. Its lens is made of PC (polycarbonate) to ensure it can withstand exposure to UV (ultraviolet) radiation. These materials make the unit a good choice for use in demanding environments.

LED/Buzzer

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Moflash
	Supply Voltage	230 V ac
	Lens Colour	Blue
	Mounting Style	Base Mount
	Current Type	AC
	Light Effect	Flashing, Steady
	Sounder Type	Buzzer
	Decibels at 1 Metre	90dB
	Series	LEDA125
	Bulb Type	LED
	Housing Colour	Black
	Maximum Decibel	90dB
	IP Rating	IP65
	Number Of Tones	2
	Housing Material	ABS, PC
	Minimum Temperature	-20°C
	Maximum Temperature	+45°C
	Standards Met	CE Certified UKCA

	Select all
	Brand Moflash
	Supply Voltage 230 V ac
	Lens Colour Blue
	Mounting Style Base Mount
	Current Type AC
	Light Effect Flashing, Steady
	Sounder Type Buzzer
	Decibels at 1 Metre 90dB
	Series LEDA125
	Bulb Type LED
	Housing Colour Black
	Maximum Decibel 90dB
	IP Rating IP65
	Number Of Tones 2
	Housing Material ABS, PC
	Minimum Temperature -20°C
	Maximum Temperature +45°C
	Standards Met CE Certified UKCA
