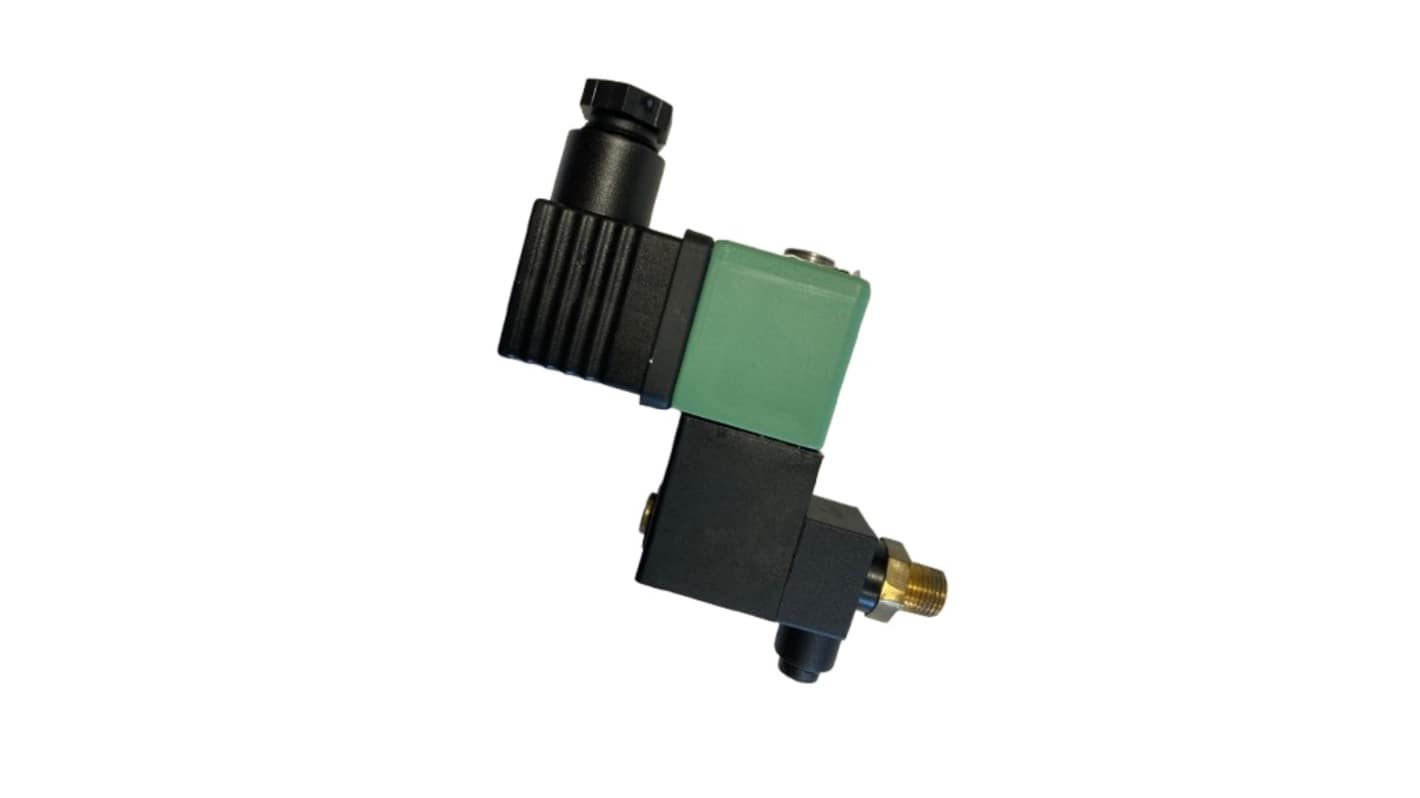

EMERSON ? ASCO Solenoid Valve 18900036.115/50-60, 3 port(s) , NC, 115 V, 3/4in
- RS Stock No.:
- 432-382
- Mfr. Part No.:
- 18900036.115/50-60
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£103.70
(exc. VAT)
£124.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £103.70 |
*price indicative
- RS Stock No.:
- 432-382
- Mfr. Part No.:
- 18900036.115/50-60
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 115 V | |
Number of Ports | 3 | |
Connection Size | 3/4in | |
Connection | 3/4 in G | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas | |
Type | Solenoid | |
Orifice Diameter | 1.2mm | |
Series | 189 | |
Body Material | Polyamide | |
Maximum Working Pressure | 10 bar | |
Operating Temperature Range | -10 → +60 °C | |
Servo Assist | No | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Thread Standard or Connection Type | G | |
Flow Factor Kv | 1.2L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 115 V | ||
Number of Ports 3 | ||
Connection Size 3/4in | ||
Connection 3/4 in G | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas | ||
Type Solenoid | ||
Orifice Diameter 1.2mm | ||
Series 189 | ||
Body Material Polyamide | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -10 → +60 °C | ||
Servo Assist No | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 1.2L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco Solenoid Valve exemplifies superior engineering tailored for valve piloting applications. This direct-operated solenoid valve is designed with a compact structure, enabling easy installation across multiple configurations. The ISO 15218 interface ensures compatibility with a range of setups, while features like AC/DC interchangeability of the solenoid operator add exceptional versatility. Additionally, the inclusion of visual indicators on certain versions enhances user interaction, ensuring optimal operational assurance. With an extensive temperature range and compliance with EU directives, this valve asserts reliability in various challenging environments, making it an ideal choice for modern automation systems.
Compact design facilitates easier installation on single or joinable subbases
AC/DC compatibility eliminates the need for valve disassembly during modifications
Visual indicators enhance operational awareness and ensure user confidence
Manual operator included as standard for added functionality
Constructed from durable materials suitable for a variety of fluids
Optimised for fast response times, ensuring efficient operation in demanding applications
Meets strict EU directives, reinforcing its reliability in industrial use
AC/DC compatibility eliminates the need for valve disassembly during modifications
Visual indicators enhance operational awareness and ensure user confidence
Manual operator included as standard for added functionality
Constructed from durable materials suitable for a variety of fluids
Optimised for fast response times, ensuring efficient operation in demanding applications
Meets strict EU directives, reinforcing its reliability in industrial use
