Weller Gas Soldering Iron

View all Soldering Irons

Subtotal (1 unit)*

£176.75

(exc. VAT)

£212.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship
  • Plus 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£176.75

*price indicative

RS Stock No.:
176-6870
Distrelec Article No.:
303-84-290
Mfr. Part No.:
T0051605899
Brand:
Weller
Find similar products by selecting one or more attributes.
Select all

Brand

Weller

Model Number

Pyropen Piezo

Power Type

Gas

Type

Gaz Soldering Iron

Tip Series

XNT

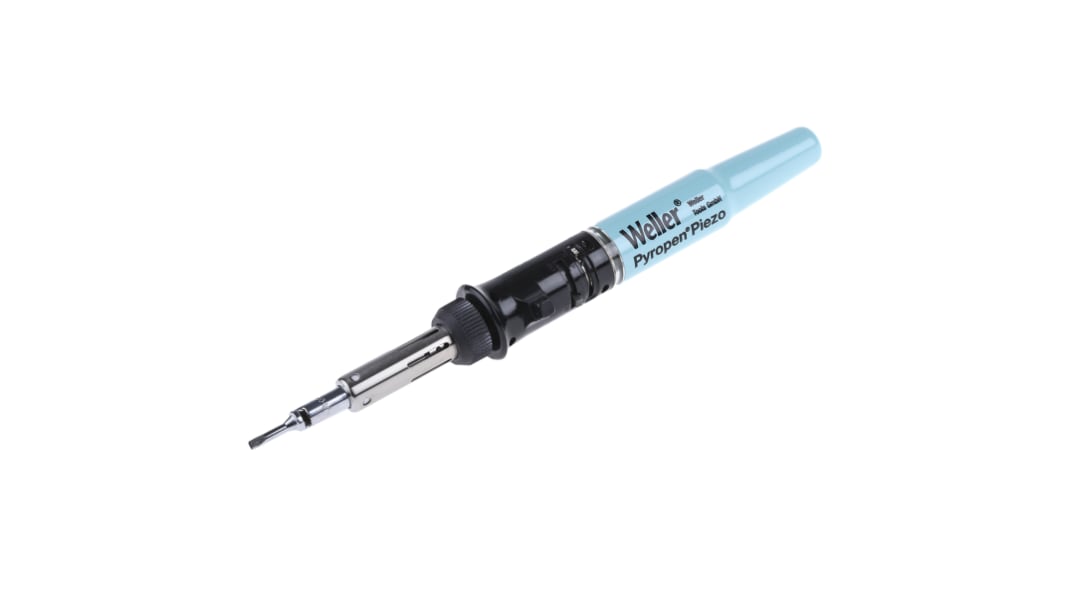

Weller Gas Powered Pyropen Piezo Soldering Iron.


From Weller this is the Pyropen Piezo, a refillable gas-powered Profi-Line soldering iron, a unique professional, cordless, versatile piece of soldering equipment. Excellent for use when working in the field as this soldering iron is a lightweight, compact soldering iron and ready to use within 30 seconds. The Piezo Pyropen fills with butane gas and we recommend using only the Weller PGR1 butane gas refill, stock number 2161668. When closed the Pyropen soldering iron looks like a standard pen, the top protects the solder tip when not in use and the base of the pen holds the reservoir of butane gas. You do not need an external ignition source to ignite the soldering iron as it is self-igniting due to the Piezo igniter. Replacement hot air soldering nozzles and solder tips are available and the Pyropen Piezo is a great addition to any soldering kit.

Features and Benefits.


  • Model Pyropen Piezo.

  • Butane gas powered (not supplied), quick and easy to re-fill.

  • Gas levels checked through an in-built viewing glass.

  • Capacity approx. 28 ml (approx. 2 hours).

  • Cordless.

  • Lightweight.

  • Fits comfortably in your hand.

  • Excellent for field work (portable).

  • Ready to use within 30 seconds.

  • Temperature range 250°C to 500°C for soldering).

  • Temperature range hot air to 650°C.

  • Adjustable tip temperature (increase or decrease the gas flow).

  • Removable top protects the solder tip.

  • Base of the soldering iron is the gas reservoir.

  • Use only Weller Butane refill gas (2161668).

  • Self-igniting Piezo ignition.

  • Weight 100 g.

  • Totally mobile soldering.

  • Cost effective

What is Included?


  • Pyropen Piezo Soldering Iron.

  • Soldering iron case.

  • Long-life soldering tip 3.3 mm.

  • Hot air nozzle 4.9 mm.

  • Soldering iron rest clip.

Typical Applications.


  • Field work.

  • Hot air soldering.

  • Electronics.

  • General soldering.

  • Mobile soldering.

Weller Solder Iron Tips Available.


  • Weller 71 01 50, 1.5 mm Hot air desoldering nozzle, stock number 660999.

  • Weller 71 01 52, 4.9 mm Hot air desoldering nozzle, stock number 661009.

  • Weller 71 01 01, 0.5 mm Straight Conical solder iron tip, stock number 660949.

  • Weller 71 01 02, 3 mm Straight Chisel solder iron tip, stock number 660955.

  • Weller 71 01 04, 5 mm Straight Chisel solder iron tip, stock number 1619942.

  • Weller 71 01 03, 3 mm Straight Hoof solder iron tip, stock number 660961.

Other Gas-Powered Soldering Irons Available.


  • Weller WP60K, stock number 4315922.

  • Weller WSTA4, stock number 660416.

  • Weller WSTA6, stock number 2432730.

  • Weller WC1, stock number 1921970.

  • Weller WP1, stock number 2503898.

  • Weller Pyropen Peizo Profi Line, stock number 1766870.
