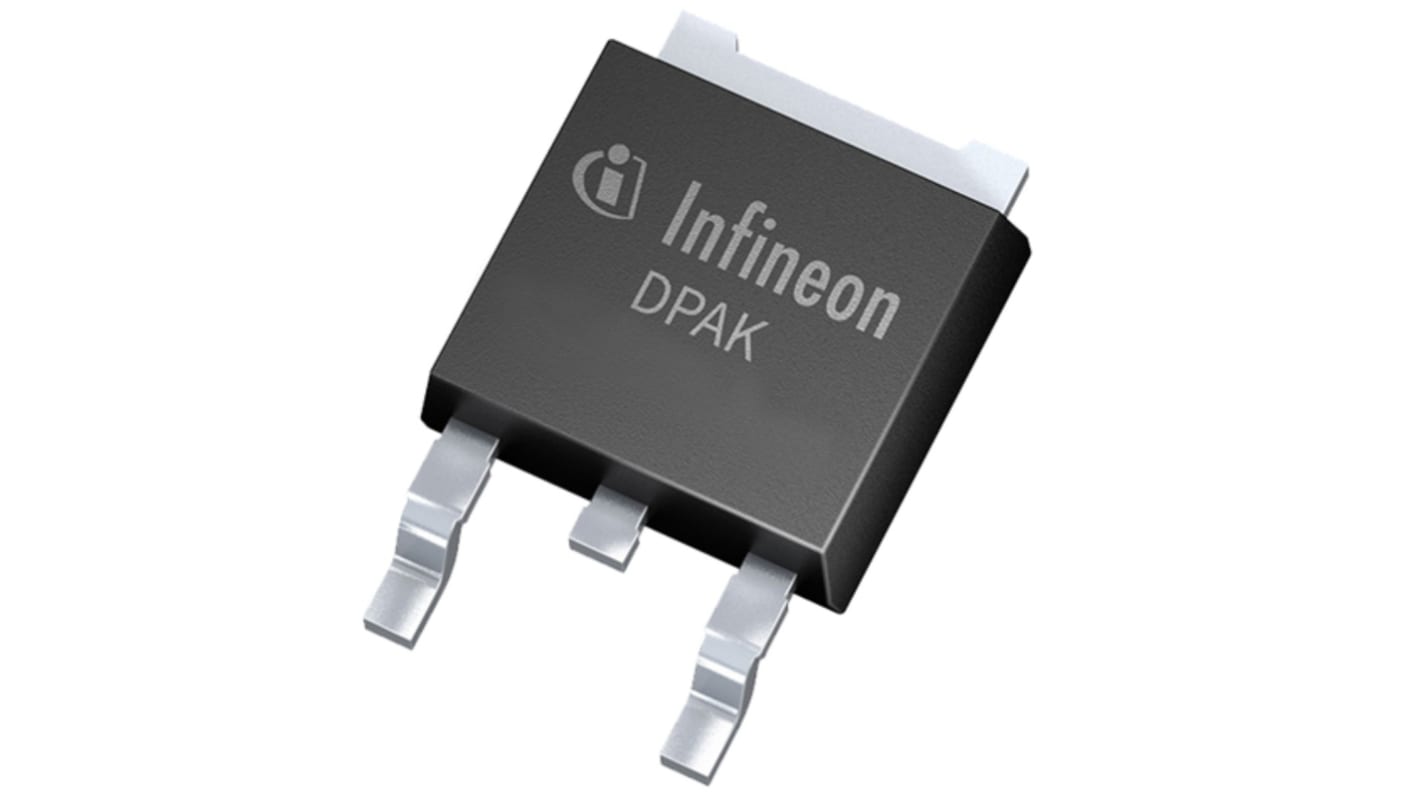

Infineon 600 V 3 A Rectifier & Schottky Diode 3-Pin DPAK IDD03SG60CXTMA2

RS Stock No.:: 257-9256
Mfr. Part No.:: IDD03SG60CXTMA2
Brand:: Infineon

Infineon 600 V 3 A Rectifier & Schottky Diode 3-Pin DPAK IDD03SG60CXTMA2

Bulk discount available

Subtotal (1 pack of 5 units)*

£7.20

(exc. VAT)

£8.65

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,940 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 45	£1.44	£7.20
50 - 120	£1.224	£6.12
125 - 245	£1.138	£5.69
250 - 495	£1.066	£5.33
500 +	£0.792	£3.96

*price indicative

RS Stock No.:: 257-9256
Mfr. Part No.:: IDD03SG60CXTMA2
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Mount Type	Through Hole
	Product Type	Rectifier & Schottky Diode
	Package Type	TO-252
	Maximum Continuous Forward Current If	3A
	Peak Reverse Repetitive Voltage Vrrm	600V
	Series	IDD03SG60C
	Diode Configuration	Single
	Pin Count	3
	Minimum Operating Temperature	-55°C
	Peak Reverse Current Ir	15μA
	Peak Non-Repetitive Forward Surge Current Ifsm	100A
	Maximum Forward Voltage Vf	2.3V
	Peak Reverse Recovery Time trr	10ns
	Maximum Operating Temperature	175°C
	Standards/Approvals	JEDEC1, RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Mount Type Through Hole
	Product Type Rectifier & Schottky Diode
	Package Type TO-252
	Maximum Continuous Forward Current If 3A
	Peak Reverse Repetitive Voltage Vrrm 600V
	Series IDD03SG60C
	Diode Configuration Single
	Pin Count 3
	Minimum Operating Temperature -55°C
	Peak Reverse Current Ir 15μA
	Peak Non-Repetitive Forward Surge Current Ifsm 100A
	Maximum Forward Voltage Vf 2.3V
	Peak Reverse Recovery Time trr 10ns
	Maximum Operating Temperature 175°C
	Standards/Approvals JEDEC1, RoHS
	Automotive Standard No

Datasheet - IDD03SG60CXTMA2

The Infineon IDD series is The Infineon CoolSiC Schottky diodes 600V G3 feature the industry’s lowest device capacitance for any given current rating, which further enhances overall system efficiency, especially at higher switching frequencies and under low load conditions. The generation 3 is based on the same technology platform as generation 2 with the introduction, at package level, of the so called diffusion soldering.

Benchmark switching behavior

No reverse recovery charge

Temperature independent switching behavior

High operating temperature (T j max 175°C)
