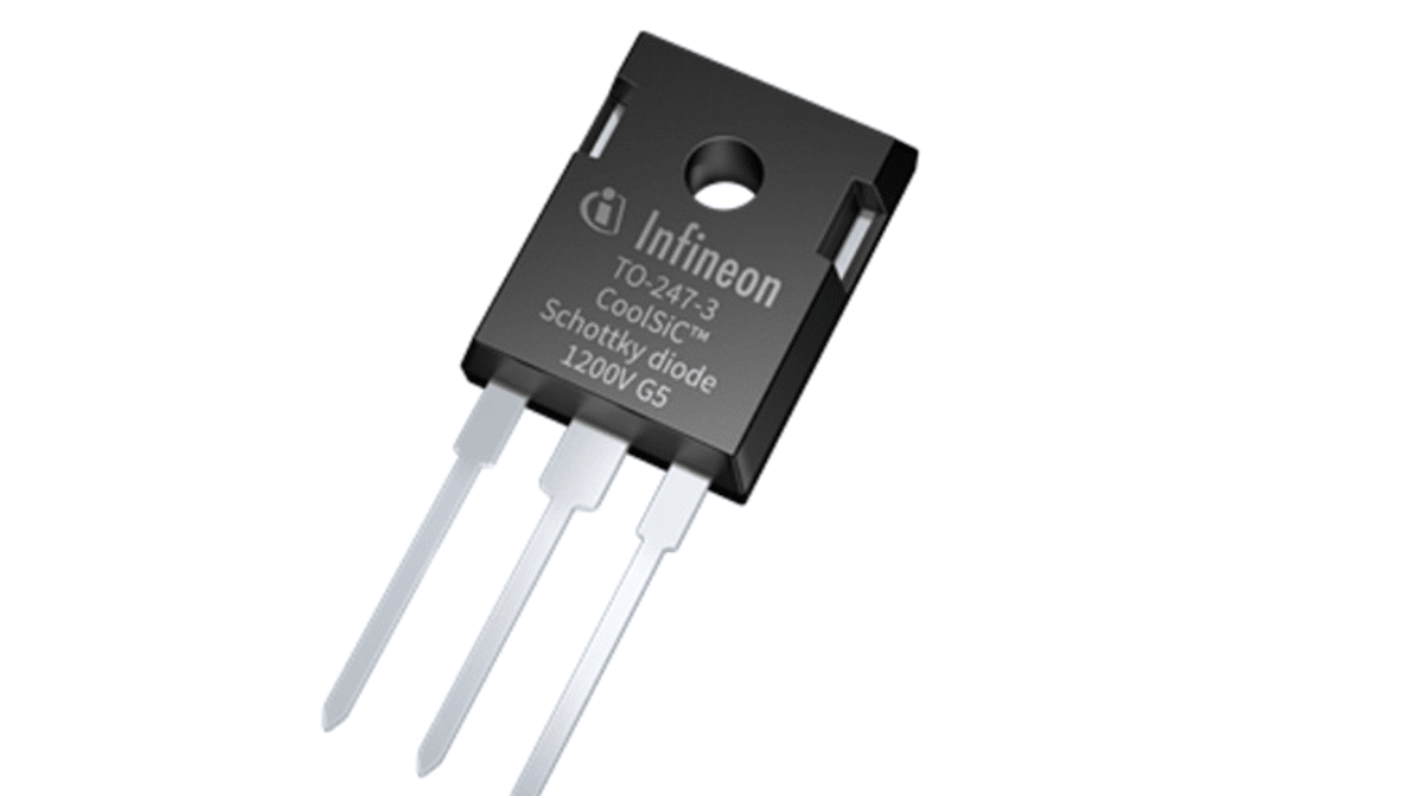

Infineon 1200V 20A, SiC Schottky Diode, 3-Pin TO-247 IDW20G120C5BFKSA1
- RS Stock No.:
- 222-4836
- Mfr. Part No.:
- IDW20G120C5BFKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£6.57
(exc. VAT)
£7.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 167 unit(s) shipping from 06 October 2025
- Plus 999,999,832 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.57 |
| 10 - 24 | £6.24 |
| 25 - 49 | £5.98 |
| 50 - 99 | £5.72 |
| 100 + | £5.32 |
*price indicative
- RS Stock No.:
- 222-4836
- Mfr. Part No.:
- IDW20G120C5BFKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mounting Type | SMD | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current | 20A | |
| Peak Reverse Repetitive Voltage | 1200V | |
| Rectifier Type | Schottky Diode | |
| Diode Type | SiC Schottky | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Diode Technology | SiC Schottky | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Mounting Type SMD | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Rectifier Type Schottky Diode | ||
Diode Type SiC Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Diode Technology SiC Schottky | ||
The Infineon CoolSiC™ Schottky diode generation 5 1200 V, 20 A in a TO-247-3 package presents a leading edge technology for SiC Schottky Barrier diodes. The thin wafer technology, already introduced with G2, is combined with a merged pn junction improving diode surge current capabilities. The result is a series of products delivering market leading efficiency and more system reliability at an attractive cost point.
Best-in-class forward voltage (VF)
No reverse recovery charge
Mild positive temperature dependency of VF
Best-in-class surge current capability
Excellent thermal performance
No reverse recovery charge
Mild positive temperature dependency of VF
Best-in-class surge current capability
Excellent thermal performance
