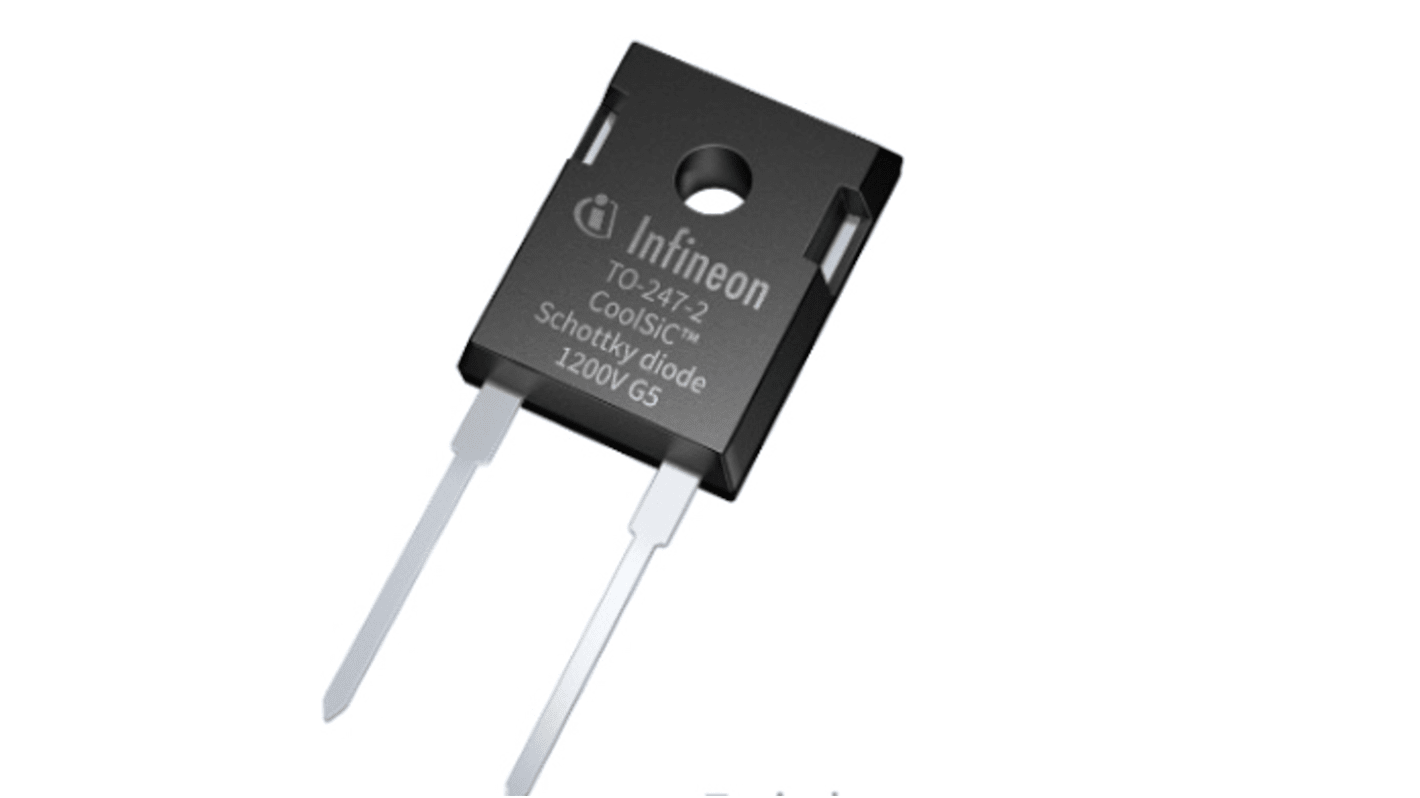

Infineon 1200V 20A, SiC Schottky Diode, 2-Pin TO-247 IDWD20G120C5XKSA1
- RS Stock No.:
- 222-4841
- Mfr. Part No.:
- IDWD20G120C5XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 30 units)*
£141.84
(exc. VAT)
£170.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 390 unit(s) shipping from 06 October 2025
- Plus 999,999,600 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 30 | £4.728 | £141.84 |
| 60 - 120 | £4.492 | £134.76 |
| 150 + | £4.208 | £126.24 |
*price indicative
- RS Stock No.:
- 222-4841
- Mfr. Part No.:
- IDWD20G120C5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mounting Type | SMD | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current | 20A | |
| Peak Reverse Repetitive Voltage | 1200V | |
| Rectifier Type | Schottky Diode | |
| Diode Type | SiC Schottky | |
| Pin Count | 2 | |
| Number of Elements per Chip | 1 | |
| Diode Technology | SiC Schottky | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Mounting Type SMD | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Rectifier Type Schottky Diode | ||
Diode Type SiC Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
Diode Technology SiC Schottky | ||
The Infineon CoolSiC™ Schottky diodes generation 5 1200 V, 20 A in a TO-247 real 2-pin package, for easy exchange of bipolar Si diodes. The expanded 8.7 mm creepage and clearance distances in the new package offer extra safety in high-pollution environments. Combined with a Si IGBT or super-junction MOSFET, for example in a Vienna rectifier stage or PFC boost stage used in 3-phase conversion systems, a CoolSiC™ diode raises efficiency up to 1% compared to next best Si diode alternative.
No reverse recovery current, no forward recovery voltage
Temperature-independent switching behaviour
Low forward voltage even at high operating temperature
Tight forward voltage distribution
High surge current capability
Temperature-independent switching behaviour
Low forward voltage even at high operating temperature
Tight forward voltage distribution
High surge current capability
