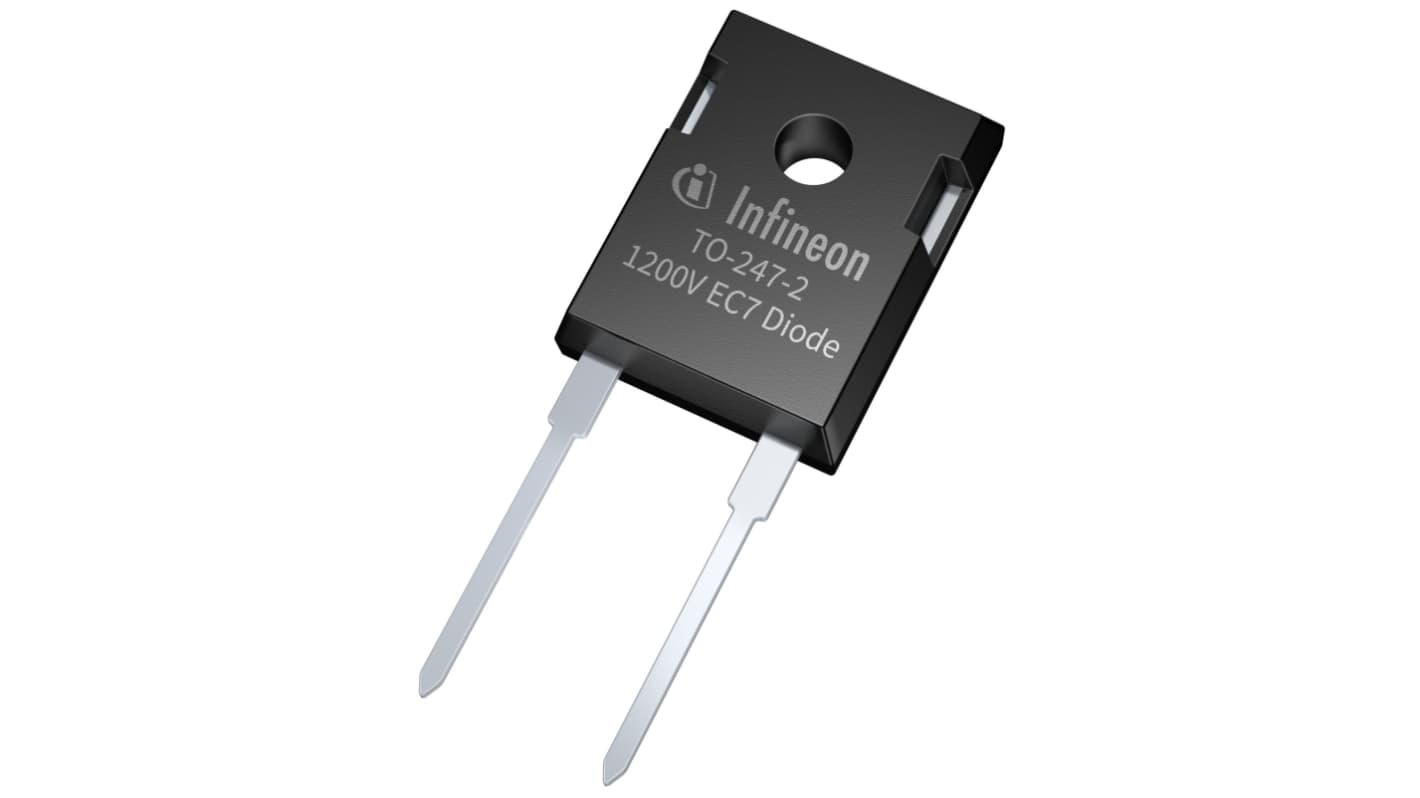

Infineon 1.2 kV 100 A Rectifier & Schottky Diode Fast Recovery 2-Pin TO-247-2 IDWD100E120D7XKSA1

RS Stock No.:: 349-039
Mfr. Part No.:: IDWD100E120D7XKSA1
Brand:: Infineon

Infineon 1.2 kV 100 A Rectifier & Schottky Diode Fast Recovery 2-Pin TO-247-2 IDWD100E120D7XKSA1

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 2 units)*

£10.04

(exc. VAT)

£12.04

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 188 unit(s) shipping from 19 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
2 - 18	£5.02	£10.04
20 - 198	£4.515	£9.03
200 +	£4.17	£8.34

*price indicative

RS Stock No.:: 349-039
Mfr. Part No.:: IDWD100E120D7XKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Mount Type	Through Hole
	Product Type	Rectifier & Schottky Diode
	Package Type	TO-247-2
	Maximum Continuous Forward Current If	100A
	Peak Reverse Repetitive Voltage Vrrm	1.2kV
	Diode Configuration	Single
	Series	IDWD
	Rectifier Type	Fast Recovery
	Pin Count	2
	Minimum Operating Temperature	-40°C
	Maximum Forward Voltage Vf	3V
	Peak Non-Repetitive Forward Surge Current Ifsm	329A
	Maximum Operating Temperature	175°C
	Peak Reverse Recovery Time trr	210ns
	Length	41.2mm
	Height	5.1mm
	Standards/Approvals	RoHS, JEDEC47/20/22
	Width	15.9mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Mount Type Through Hole
	Product Type Rectifier & Schottky Diode
	Package Type TO-247-2
	Maximum Continuous Forward Current If 100A
	Peak Reverse Repetitive Voltage Vrrm 1.2kV
	Diode Configuration Single
	Series IDWD
	Rectifier Type Fast Recovery
	Pin Count 2
	Minimum Operating Temperature -40°C
	Maximum Forward Voltage Vf 3V
	Peak Non-Repetitive Forward Surge Current Ifsm 329A
	Maximum Operating Temperature 175°C
	Peak Reverse Recovery Time trr 210ns
	Length 41.2mm
	Height 5.1mm
	Standards/Approvals RoHS, JEDEC47/20/22
	Width 15.9mm
	Automotive Standard No

Datasheet - IDWD100E120D7XKSA1

COO (Country of Origin):: MY

The Infineon Emitter Controlled 7 Silicon Diode is designed for high performance power applications, featuring exceptional soft switching capabilities. This diode offers a low forward voltage ensuring reduced conduction losses and enhanced efficiency in power conversion systems. It exhibits very soft and fast recovery behaviour, enabling minimal switching losses and improved system performance.

Highest efficiency

Maximize system output power

Optimized performance

Humidity robust design
