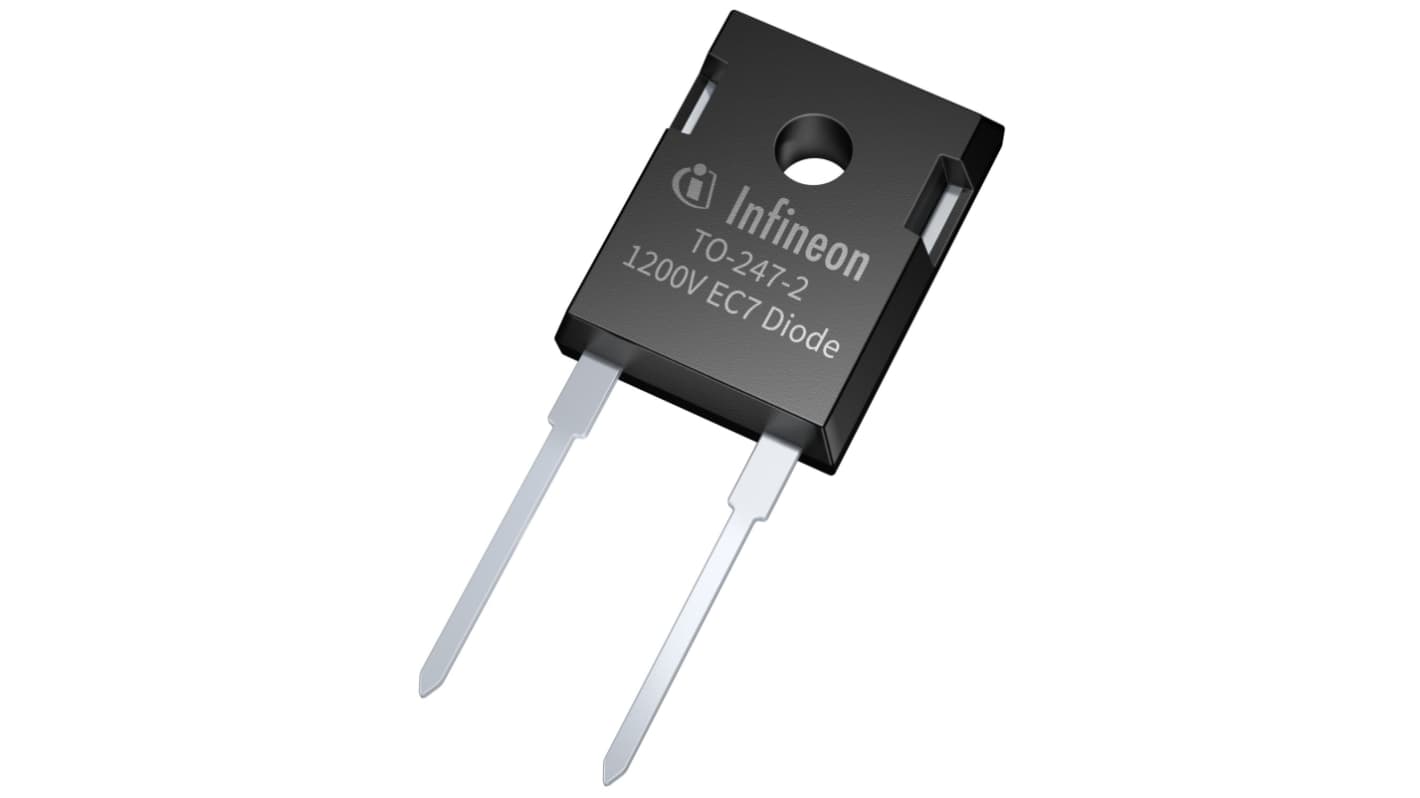

Infineon 1.2 kV 40 A Rectifier & Schottky Diode Ultrafast Recovery 2-Pin TO-247-2 IDWD40E120D7XKSA1
- RS Stock No.:
- 349-300
- Mfr. Part No.:
- IDWD40E120D7XKSA1
- Brand:
- Infineon
Get a bulk buy discount
Add 20 more to save 9%
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£7.10
(exc. VAT)
£8.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 230 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 2 - 18 | £3.55 | £7.10 | - |
| 20 - 198 | £3.20 | £6.40 | 9% |
| 200 - 998 | £2.945 | £5.89 | 17% |
| 1000 - 1998 | £2.735 | £5.47 | 22% |
| 2000 + | £2.455 | £4.91 | 30% |
*price indicative
- RS Stock No.:
- 349-300
- Mfr. Part No.:
- IDWD40E120D7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Through Hole | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-247-2 | |
| Maximum Continuous Forward Current If | 40A | |
| Peak Reverse Repetitive Voltage Vrrm | 1.2kV | |
| Diode Configuration | Single | |
| Series | IDWD | |
| Rectifier Type | Ultrafast Recovery | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 3V | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 185A | |
| Peak Reverse Recovery Time trr | 175ns | |
| Maximum Operating Temperature | 175°C | |
| Height | 5.1mm | |
| Length | 41.2mm | |
| Width | 15.9mm | |
| Standards/Approvals | RoHS, JEDEC47/20/22 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Through Hole | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-247-2 | ||
Maximum Continuous Forward Current If 40A | ||
Peak Reverse Repetitive Voltage Vrrm 1.2kV | ||
Diode Configuration Single | ||
Series IDWD | ||
Rectifier Type Ultrafast Recovery | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 3V | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 185A | ||
Peak Reverse Recovery Time trr 175ns | ||
Maximum Operating Temperature 175°C | ||
Height 5.1mm | ||
Length 41.2mm | ||
Width 15.9mm | ||
Standards/Approvals RoHS, JEDEC47/20/22 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Infineon Emitter Controlled 7 Silicon Diode is designed for high performance power applications, featuring exceptional soft switching capabilities. This diode offers a low forward voltage ensuring reduced conduction losses and enhanced efficiency in power conversion systems. It exhibits very soft and fast recovery behaviour, enabling minimal switching losses and improved system performance.
Highest efficiency
Maximize system output power
Optimized performance
Humidity robust design
