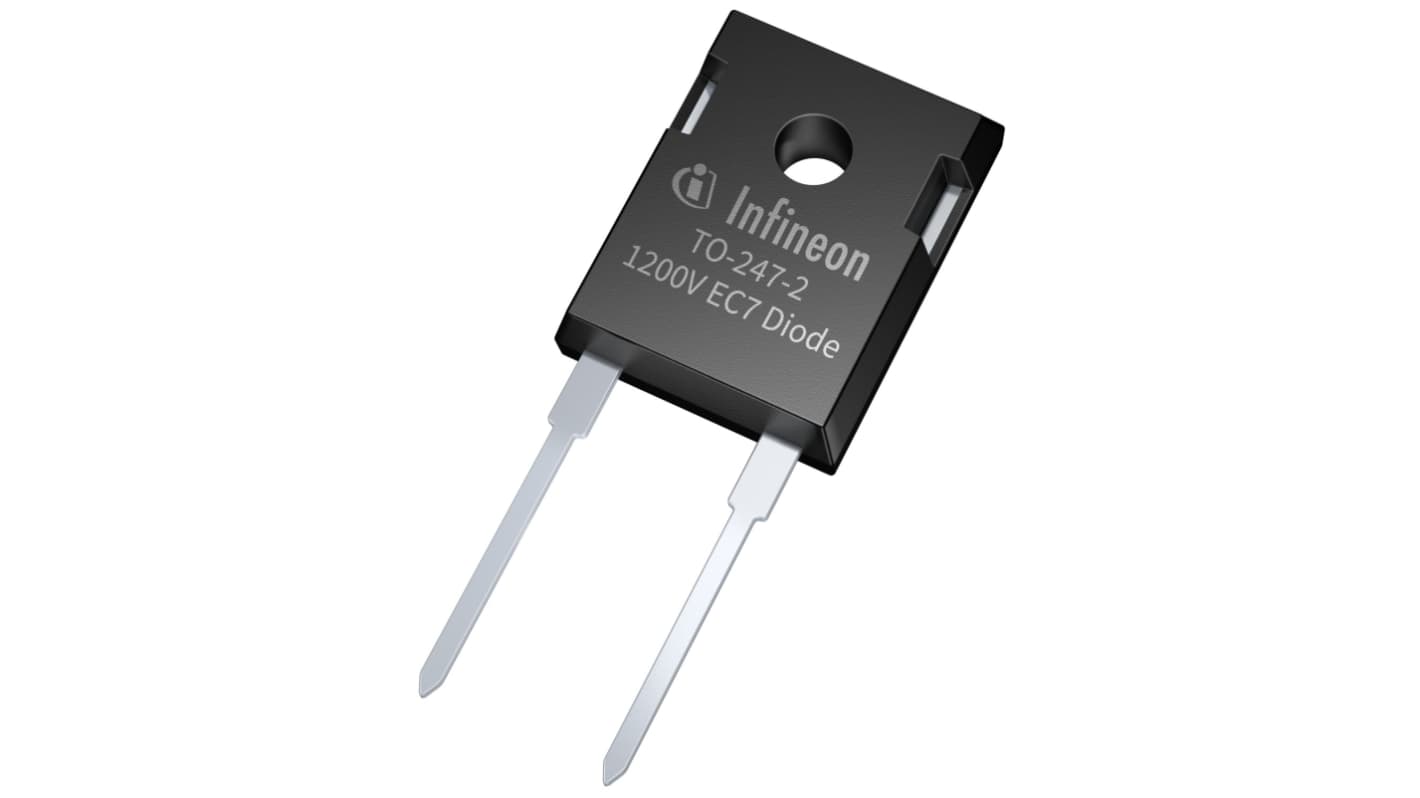

Infineon 1200 V 50 A Rectifier & Schottky Diode Ultrafast Recovery 2-Pin TO-247-2 IDWD50E120D7XKSA1

RS Stock No.:: 349-301
Mfr. Part No.:: IDWD50E120D7XKSA1
Brand:: Infineon

Infineon 1200 V 50 A Rectifier & Schottky Diode Ultrafast Recovery 2-Pin TO-247-2 IDWD50E120D7XKSA1

Bulk discount available

Subtotal (1 pack of 2 units)*

£6.38

(exc. VAT)

£7.66

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

240 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
2 - 18	£3.19	£6.38
20 - 198	£2.875	£5.75
200 - 998	£2.65	£5.30
1000 - 1998	£2.46	£4.92
2000 +	£2.205	£4.41

*price indicative

RS Stock No.:: 349-301
Mfr. Part No.:: IDWD50E120D7XKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Mount Type	Through Hole
	Product Type	Rectifier & Schottky Diode
	Package Type	TO-247-2
	Maximum Continuous Forward Current If	50A
	Peak Reverse Repetitive Voltage Vrrm	1200V
	Diode Configuration	Single
	Series	IDWD
	Rectifier Type	Ultrafast Recovery
	Pin Count	2
	Peak Non-Repetitive Forward Surge Current Ifsm	218A
	Maximum Forward Voltage Vf	3V
	Minimum Operating Temperature	-40°C
	Peak Reverse Recovery Time trr	200ns
	Maximum Operating Temperature	175°C
	Length	41.2mm
	Width	15.9 mm
	Height	5.1mm
	Standards/Approvals	RoHS, JEDEC47/20/22
	Automotive Standard	No

	Select all
	Brand Infineon
	Mount Type Through Hole
	Product Type Rectifier & Schottky Diode
	Package Type TO-247-2
	Maximum Continuous Forward Current If 50A
	Peak Reverse Repetitive Voltage Vrrm 1200V
	Diode Configuration Single
	Series IDWD
	Rectifier Type Ultrafast Recovery
	Pin Count 2
	Peak Non-Repetitive Forward Surge Current Ifsm 218A
	Maximum Forward Voltage Vf 3V
	Minimum Operating Temperature -40°C
	Peak Reverse Recovery Time trr 200ns
	Maximum Operating Temperature 175°C
	Length 41.2mm
	Width 15.9 mm
	Height 5.1mm
	Standards/Approvals RoHS, JEDEC47/20/22
	Automotive Standard No

Datasheet - IDWD50E120D7XKSA1

The Infineon Emitter Controlled 7 Silicon Diode is designed for high performance power applications, featuring exceptional soft switching capabilities. This diode offers a low forward voltage ensuring reduced conduction losses and enhanced efficiency in power conversion systems. It exhibits very soft and fast recovery behaviour, enabling minimal switching losses and improved system performance.

Highest efficiency

Maximize system output power

Optimized performance

Humidity robust design
