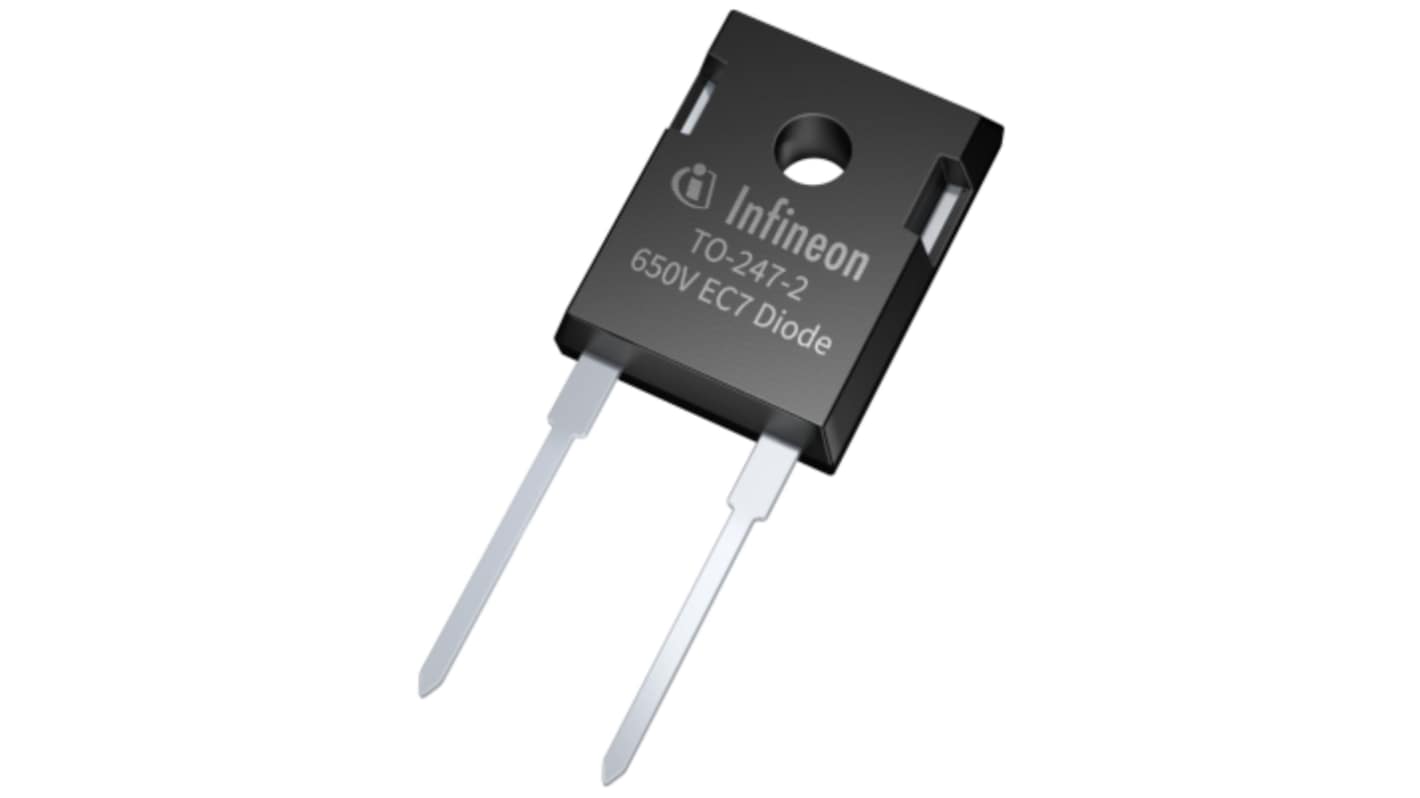

Infineon 6650 V 100 A Rectifier & Schottky Diode Fast Recovery 2-Pin TO-247-2 IDWD100E65E7XKSA1
- RS Stock No.:
- 349-040
- Mfr. Part No.:
- IDWD100E65E7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.50
(exc. VAT)
£7.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 238 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £3.25 | £6.50 |
| 20 - 198 | £2.93 | £5.86 |
| 200 - 998 | £2.70 | £5.40 |
| 1000 - 1998 | £2.505 | £5.01 |
| 2000 + | £2.245 | £4.49 |
*price indicative
- RS Stock No.:
- 349-040
- Mfr. Part No.:
- IDWD100E65E7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247-2 | |
| Maximum Continuous Forward Current If | 100A | |
| Peak Reverse Repetitive Voltage Vrrm | 6650V | |
| Series | IDWD | |
| Diode Configuration | Single | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 380A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 2.1V | |
| Peak Reverse Recovery Time trr | 163ns | |
| Maximum Operating Temperature | 175°C | |
| Height | 5.1mm | |
| Standards/Approvals | RoHS, JEDEC47/20/22 | |
| Width | 15.9 mm | |
| Length | 41.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Through Hole | ||
Package Type TO-247-2 | ||
Maximum Continuous Forward Current If 100A | ||
Peak Reverse Repetitive Voltage Vrrm 6650V | ||
Series IDWD | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 380A | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 2.1V | ||
Peak Reverse Recovery Time trr 163ns | ||
Maximum Operating Temperature 175°C | ||
Height 5.1mm | ||
Standards/Approvals RoHS, JEDEC47/20/22 | ||
Width 15.9 mm | ||
Length 41.2mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Infineon Soft switching 650 V 100 A emitter controlled 7 silicon diode in TO-247 real to leads 2pin package. With improved softness, humidity ruggedness and reliability for Industrial and Home appliance application.
Highest efficiency
Maximize system output power
Optimized performance
Humidity robust design
