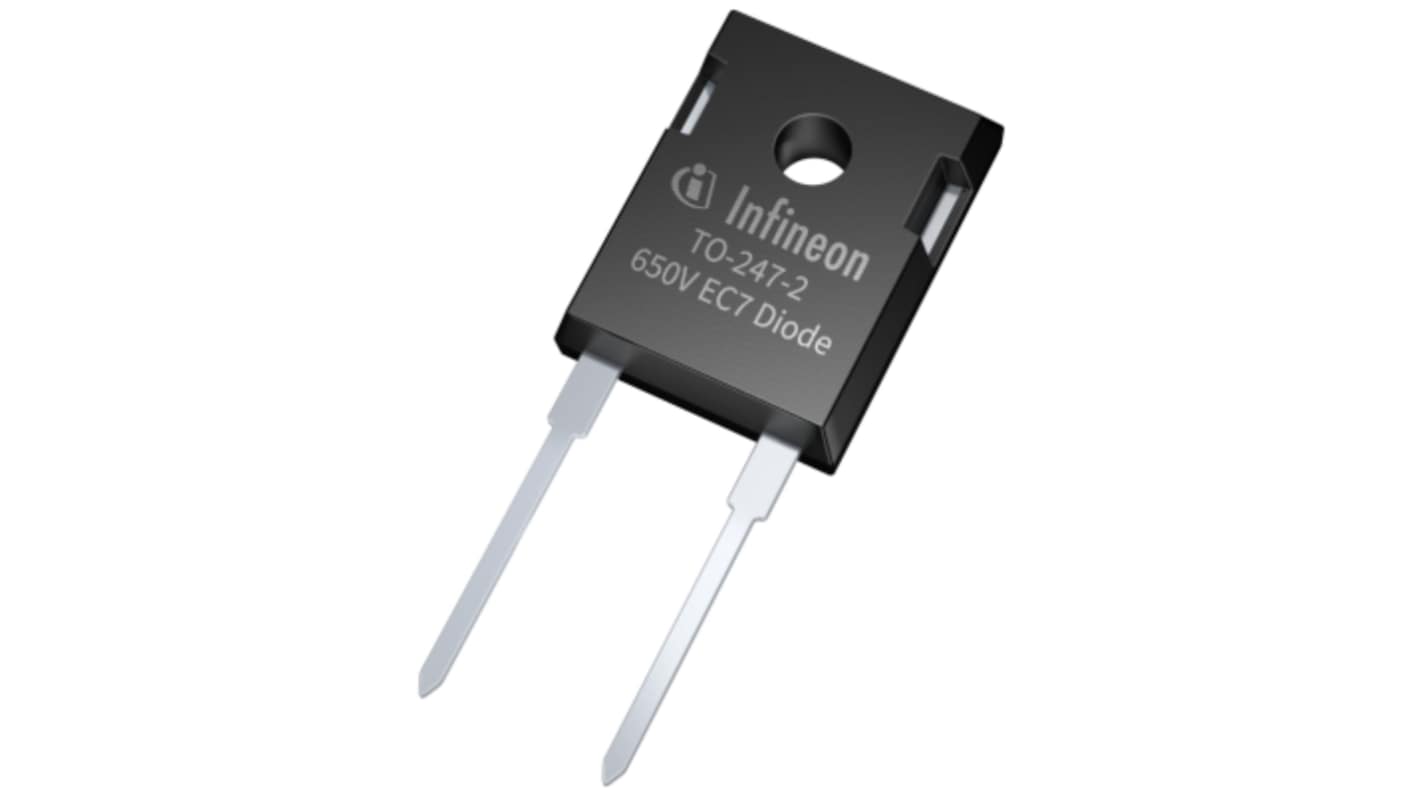

Infineon 6650 V 150 A Rectifier & Schottky Diode Very Soft and Fast Recovery 2-Pin TO-247-2 IDWD150E65E7XKSA1

View this category
Bulk discount available

Subtotal (1 pack of 2 units)*

£8.43

(exc. VAT)

£10.116

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
2 - 18£4.215£8.43
20 - 198£3.79£7.58
200 +£3.495£6.99

*price indicative

RS Stock No.:
349-297
Mfr. Part No.:
IDWD150E65E7XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Mount Type

Through Hole

Product Type

Rectifier & Schottky Diode

Package Type

TO-247-2

Maximum Continuous Forward Current If

150A

Peak Reverse Repetitive Voltage Vrrm

6650V

Diode Configuration

Single

Series

IDWD

Rectifier Type

Very Soft and Fast Recovery

Pin Count

2

Minimum Operating Temperature

-40°C

Maximum Forward Voltage Vf

2.1V

Peak Non-Repetitive Forward Surge Current Ifsm

600A

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

175ns

Height

5.1mm

Length

41.2mm

Standards/Approvals

JEDEC47/20/22, RoHS

Automotive Standard

No

COO (Country of Origin):
CN
The Infineon Soft switching 650 V 150 A emitter controlled 7 silicon diode in TO-247 real to leads 2pin package. With improved softness, humidity ruggedness and reliability for Industrial and Home appliance application.

Low and temperature stable VF

Very soft and fast recovery behaviour

Low reverse recovery current

HV H3TRB pass by Jedec Standard

Cosmic ray ruggedness

Qualified according to JEDEC
