Allen Bradley Guardmaster 440F Internal Corner, Aluminium 96 mm x 96 mm
- RS Stock No.:
- 523-7291
- Mfr. Part No.:
- 440F-T3013
- Brand:
- Allen Bradley Guardmaster
Subtotal (1 unit)*
£53.70
(exc. VAT)
£64.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 11 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.70 |
*price indicative
- RS Stock No.:
- 523-7291
- Mfr. Part No.:
- 440F-T3013
- Brand:
- Allen Bradley Guardmaster
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley Guardmaster | |
| Series | 440F | |
| Product Type | Internal Corner | |
| Length | 96mm | |
| Width | 96 mm | |
| Thickness | 16mm | |
| Material | Aluminium | |
| IP Rating | IP67 | |
| Standards/Approvals | cULus, CSA, CE | |
| Select all | ||
|---|---|---|
Brand Allen Bradley Guardmaster | ||
Series 440F | ||
Product Type Internal Corner | ||
Length 96mm | ||
Width 96 mm | ||
Thickness 16mm | ||
Material Aluminium | ||
IP Rating IP67 | ||
Standards/Approvals cULus, CSA, CE | ||
RoHS Status: Exempt

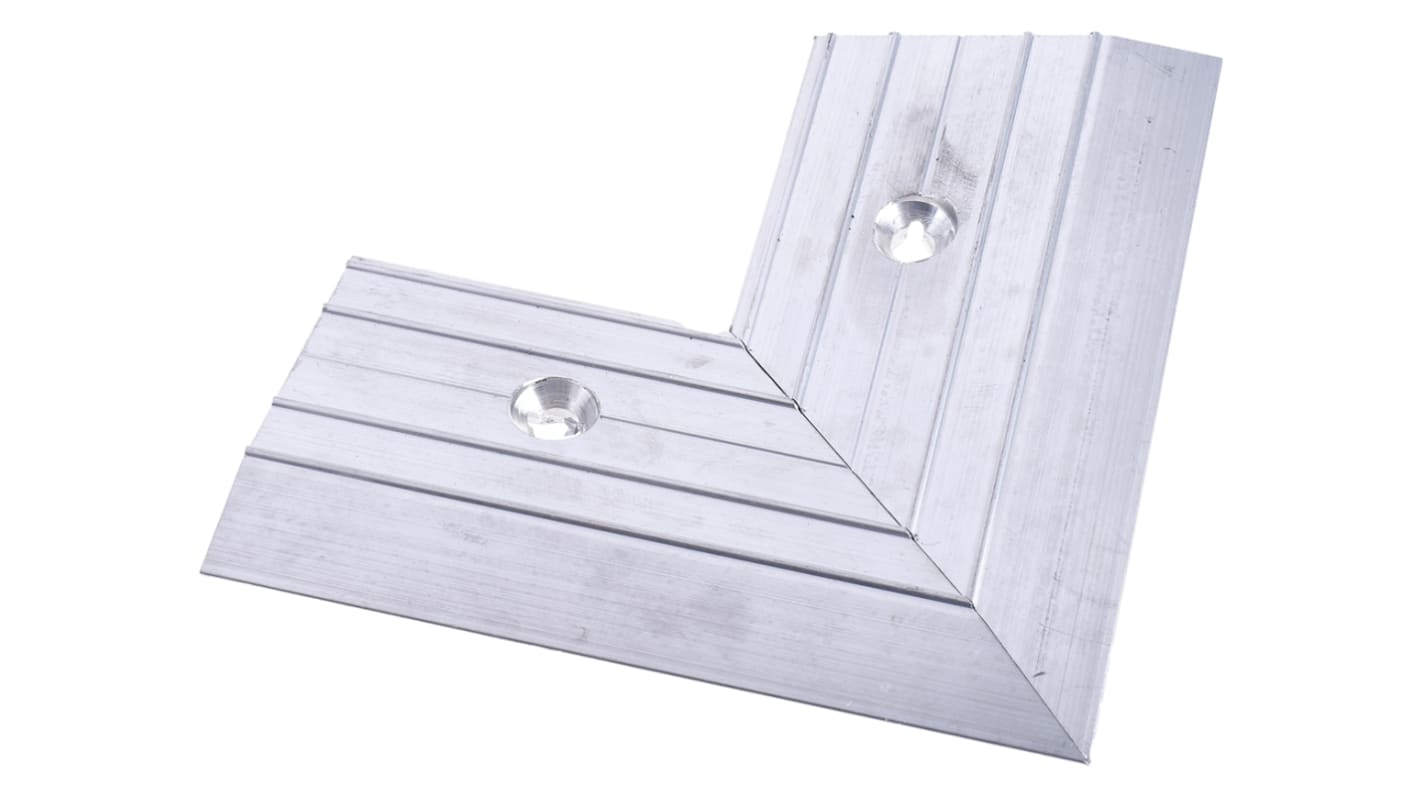

Allen Bradley Guardmaster Internal Corner, Aluminium, 3 Cable Channels - 440F-T3013
Stop your safety mat from moving accidentally with this internal corner from Rockwell Automation's Allen Bradley Guardmaster range. It connects to the mat's perimeter trim (249-6318) so you can be sure of secure installation and a reliable safety device. As there are marked spaces for up to three mat cables underneath, the corner makes it easy to route your wiring and achieve fast assembly. An aluminium body means this is a corrosion-resistant option that delivers a long service life in damp environments.
• IP67 rating when installed indicates full protection against dust and temporary submersion in shallow water to suit outdoor environments
• Body thickness of 16mm for a robust component
• Wide operating temperature range between -25°C and +55°C for use in demanding industrial applications
Standards and Certifications
• CE
• cULus
• EN 1760-1
• ISO 13849-1
How does a safety mat work?
A safety mat is designed to automatically stop machinery when workers get too close. It detects pressure when someone stands on it and disconnects your equipment without manual input. The mat signals for work to restart when the pressure is removed.
Internal & External Corner Trim for MatGuard 440F Series Safety Mats
The perimeter trim holds three 2-wire or two 4-wire mat cables
