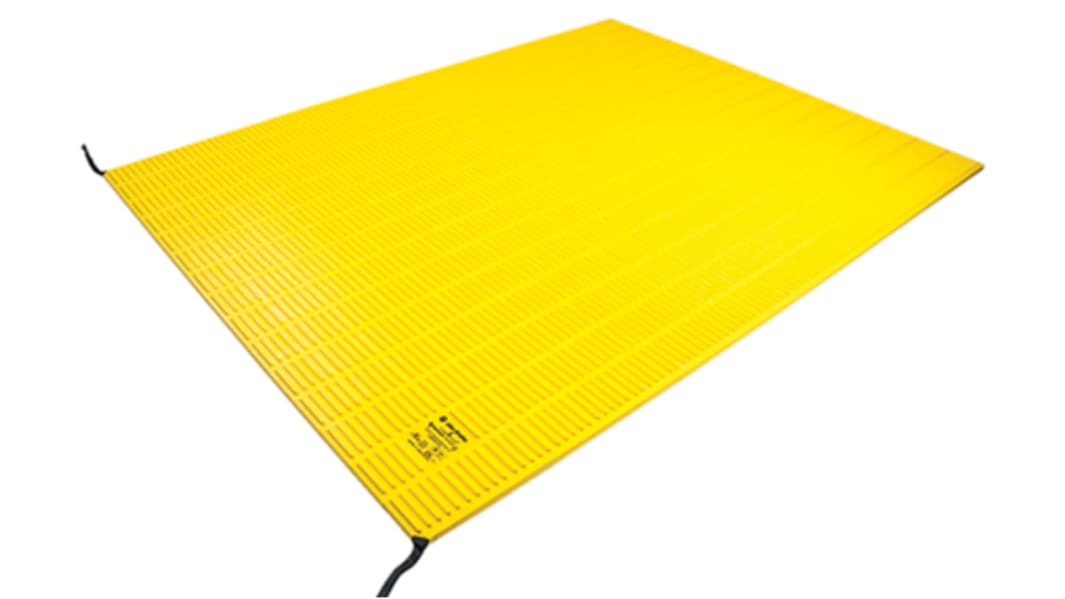

MatGuard 440-F Safety Mat, Plastisol Vinyl 1m x 750mm
- RS Stock No.:
- 660-0678
- Mfr. Part No.:
- 440F-M1520BYNN
- Brand:
- Allen Bradley Guardmaster
Image representative of range
Subtotal (1 unit)*
£625.54
(exc. VAT)
£750.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £625.54 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£705.25
(exc. VAT)
£846.30
(inc. VAT)
- RS Stock No.:
- 660-0678
- Mfr. Part No.:
- 440F-M1520BYNN
- Brand:
- Allen Bradley Guardmaster
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley Guardmaster | |
Range | MatGuard | |
Series | 440-F | |
Protected Area | 1000 x 750mm | |
Length | 1m | |
Width | 750mm | |
Thickness | 16mm | |
Mat Material | Plastisol Vinyl | |
IP Rating | IP67 | |
Select all | ||
---|---|---|
Brand Allen Bradley Guardmaster | ||
Range MatGuard | ||
Series 440-F | ||
Protected Area 1000 x 750mm | ||
Length 1m | ||
Width 750mm | ||
Thickness 16mm | ||
Mat Material Plastisol Vinyl | ||
IP Rating IP67 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Allen Bradley Guardmaster Safety Mat, 1m Length, 750mm Width - 440F-M1520BYNN
Restrict unauthorised access to sensitive equipment and prioritise user safety with this mat from Rockwell Automation's Allen Bradley Guardmaster range. It's a pressure-sensitive device that operates using a safety control unit linked to your machinery. When it senses a weight of 30kg or higher on the mat's surface, the controller shuts down attached machinery to prevent injury. The unit has a broad operating temperature range between -25ºC and +55ºC, so you can use it in demanding conditions. For durability, a rugged plastisol vinyl body provides resistance to the impacts and corrosion you'd expect in heavy-duty industrial settings.
Features and Benefits
• Surface mounting style for quick and easy installation
• 24V DC supply voltage for easy compatibility
• IP67 rating indicates it's fully dust-proof and can be immersed in 1m of water for 30 minutes
• Dimensions of 1000mm (length) x 500mm (width) for coverage of large surface areas
• 24V DC supply voltage for easy compatibility
• IP67 rating indicates it's fully dust-proof and can be immersed in 1m of water for 30 minutes
• Dimensions of 1000mm (length) x 500mm (width) for coverage of large surface areas
Standards and Certifications
• CSA
• TUV
• ISO 13849-1
• TUV
• ISO 13849-1
How long will this safety mat last?
IP67 rated
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5
This mat has a mechanical life of up to 10 million operations, making it a long-lasting choice.
