MatGuard 440-F Pressure Mat, Plastisol Vinyl 1m x 500mm
- RS Stock No.:
- 660-0671
- Mfr. Part No.:
- 440F-M1020BYNN
- Brand:
- Allen Bradley Guardmaster
Image representative of range
Subtotal (1 unit)*
£545.83
(exc. VAT)
£655.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £545.83 |
*price indicative
- RS Stock No.:
- 660-0671
- Mfr. Part No.:
- 440F-M1020BYNN
- Brand:
- Allen Bradley Guardmaster
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley Guardmaster | |
Range | MatGuard | |
Series | 440-F | |
Protected Area | 1000 x 500mm | |
Length | 1m | |
Width | 500mm | |
Thickness | 16mm | |
Mat Material | Plastisol Vinyl | |
IP Rating | IP67 | |
Select all | ||
---|---|---|
Brand Allen Bradley Guardmaster | ||
Range MatGuard | ||
Series 440-F | ||
Protected Area 1000 x 500mm | ||
Length 1m | ||
Width 500mm | ||
Thickness 16mm | ||
Mat Material Plastisol Vinyl | ||
IP Rating IP67 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

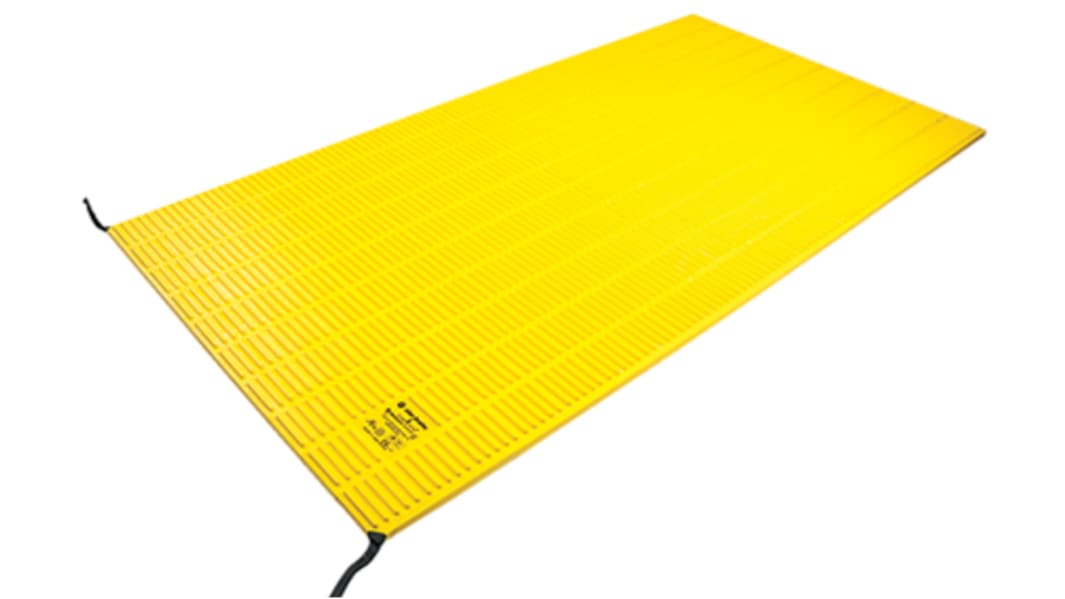

Allen Bradley Guardmaster Safety Mat, 1m Length, 16mm Thickness - 440F-M1020BYNN
Use this pressure-sensitive safety mat from Rockwell Automation's Allen Bradley Guardmaster range to keep workers safe around dangerous equipment. It detects a person approaching a restricted or hazardous area and triggers the shutdown of connected machinery. The mat is made from plastisol vinyl that resists wear and corrosion, so you can use it in humid conditions. Dimensions of 1000 (length) x 500mm (width) mean it covers a large surface area in your work environment, ensuring optimal safety. An IP67 rating indicates this is a dust-proof option that can handle immersion in 1m of water for 30 minutes.
Features and Benefits
• Absorbs shock for safety in heavy-duty applications
• Mechanical life of up to 10 million operations for long-term use
• Wide operating temperature range between -25ºc and +55ºC for use in demanding settings
• Supply voltage of 24V DC suits low-voltage applications
• Mechanical life of up to 10 million operations for long-term use
• Wide operating temperature range between -25ºc and +55ºC for use in demanding settings
• Supply voltage of 24V DC suits low-voltage applications
Standards and Certifications
• CSA
• CE
• EN954-1
• CE
• EN954-1
Where should I place this safety mat?
IP67 rated
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5
This mat should be placed on a flat floor that's dry and clean. You can then extend coverage by linking multiple units together using a joining trim (249-6324).
